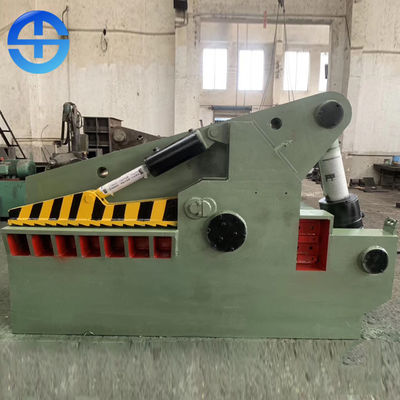

30 Kw Alligator Shearing Machine Hydraulic Scrap Aluminum Alligator Shear TMS-2500
Product Details:
| Place of Origin: | China |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | TMS-2500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 20 or 40 feet container |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Name: | Metal Cutting Machine | Function: | Cutting Metal |
|---|---|---|---|
| Max. Shear Force: | 250 T | Blade Length: | 1000 Mm |
| Power: | 30 Kw | Max. Open: | 480 Mm |
| Max. Holding Force: | 26 T | Shearing Material Size: | 70*70 Mm, Φ80 Mm |
| High Light: | alligator metal shear,scrap metal cutting shears |
||
Product Description
Commercial TMS-2500 alligator scrap metal shear machine 30 kw
Product Summary
Alligator metal shear machine has the following features.
1. A longer life: shear head adopts steel casting, overcomes the disadvange of easy deformation of the welded plate.
2. Simple operation: A new integration design, convenient movement. Hydraulic control handle, easy to operate, can realize automatic and semi-automatic operation, convenient and reliable operation.
3. Low failure rate: without the traditional electromagnetic value and the other electrical components, low failure rate,low maintenance cost.
4. Hydraulic driven with hand-value or PLC, use diesel engine when electrical motor is unavailable.
5. Hydraulic acceleration system: the shearing speed is doubled than before, the power is saved by 50%.
Key Specifications
| Item | Max Shear force | Max. Open |
Max. Holding force
|
Blade length | Frequency per minute | Power | Size of shearing material |
| 63 | 63T | 280mm | 10T | 600mm | 8-10 | 7.5kw | 30*30 Φ40mm |
| 800 | 80T | 300mm | 12T | 600mm | 8-10 | 7.5kw | 30*30 Φ35mm |
| 1000 | 100T | 300mm | 16T | 600mm | 8-10 | 11kw | 40*40 Φ45mm |
| 1200 | 120T | 300mm | 20T | 600mm | 8-10 | 15kw | 45*45 Φ50mm |
| 1600 | 160T | 320mm | 25T | 700mm | 10-12 | 18.5kw | 55*55 Φ63mm |
| 2000 | 200T | 380mm | 25T | 600mm | 12-14 | 22kw | 65*65 Φ75mm |
| 2500 | 250T | 480mm | 26T | 1000mm | 12-14 | 30kw | 70*70 Φ80mm |
| 3150 | 315T | 520mm | 42T | 1200mm | 12-14 | 37kw | 80*80 Φ90mm |
