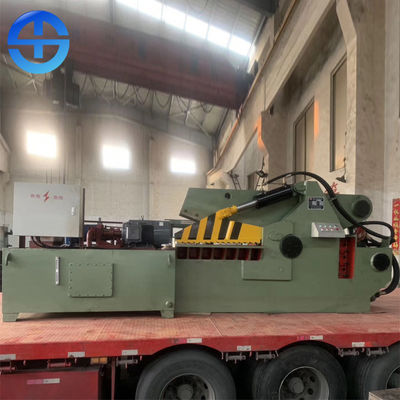

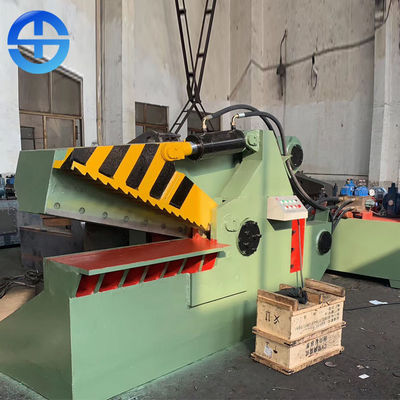

Full Automatic Hydraulic Alligator Shear Metal Cutting Hydraulic Shear
Product Details:
| Place of Origin: | China |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | TMS-3150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 20 or 40 feet container |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Name: | Hydraulic Alligator Metal Shearing Machine | Function: | Cutting Metal |
|---|---|---|---|
| Max. Shear Force: | 315 T | Blade Length: | 1200 Mm |
| Power: | 37 Kw | Max. Open: | 520 Mm |
| Max. Holding Force: | 42 T | Shearing Material Size: | 80*80 Mm, Φ90 Mm |
| Highlight: | alligator shearing machine,scrap metal cutting shears |
||
Product Description
TMS-3150 hydraulic type alligator scrap metal shearing machine
Brief introduction
Hydraulic alligator metal shearing machine applies to scrap metal (iron, steel, steel pipe, etc.) cold shearing of different section forms. The device body adopts steel casting, overcomes the disadvantage of easy deformation of the welded plate. A new integration design, which avoids the disadvantage of site secondary installation. Shear head adopts sheel casting, more durable. This machine is equipped with fast unit, and the shearing speed is doubled than before, the power is saved by 50%.
Product feature
1. A longer life: shear head adopts steel casting, overcomes the disadvange of easy deformation of the welded plate.
2. Hydraulic driven with hand-value or PLC, use diesel engine when electrical motor is unavailable.
3. Hydraulic acceleration system: the shearing speed is doubled than before, the power is saved by 50%.
Key parameters
| Item | Max Shear force | Max. Open |
Max. Holding force
|
Blade length | Frequency per minute | Power | Size of shearing material |
| 63 | 63T | 280mm | 10T | 600mm | 8-10 | 7.5kw | 30*30 Φ40mm |
| 800 | 80T | 300mm | 12T | 600mm | 8-10 | 7.5kw | 30*30 Φ35mm |
| 1000 | 100T | 300mm | 16T | 600mm | 8-10 | 11kw | 40*40 Φ45mm |
| 1200 | 120T | 300mm | 20T | 600mm | 8-10 | 15kw | 45*45 Φ50mm |
| 1600 | 160T | 320mm | 25T | 700mm | 10-12 | 18.5kw | 55*55 Φ63mm |
| 2000 | 200T | 380mm | 25T | 600mm | 12-14 | 22kw | 65*65 Φ75mm |
| 2500 | 250T | 480mm | 26T | 1000mm | 12-14 | 30kw | 70*70 Φ80mm |
| 3150 | 315T | 520mm | 42T | 1200mm | 12-14 | 37kw | 80*80 Φ90mm |
