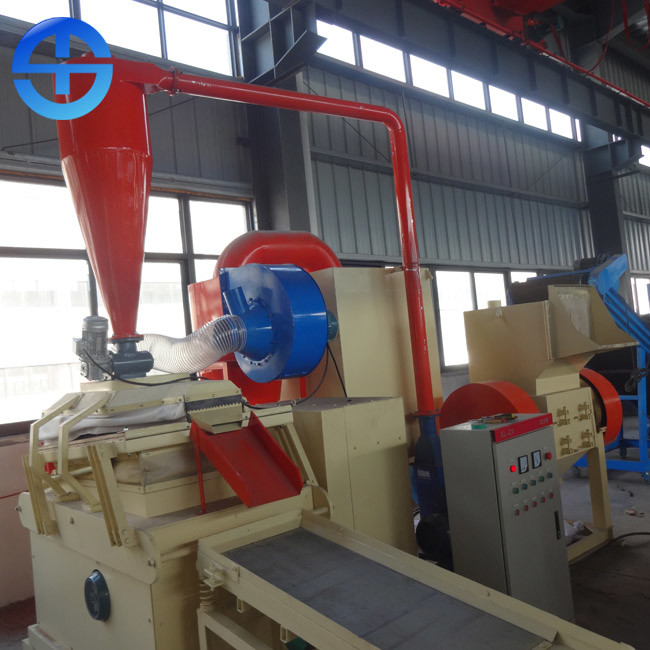

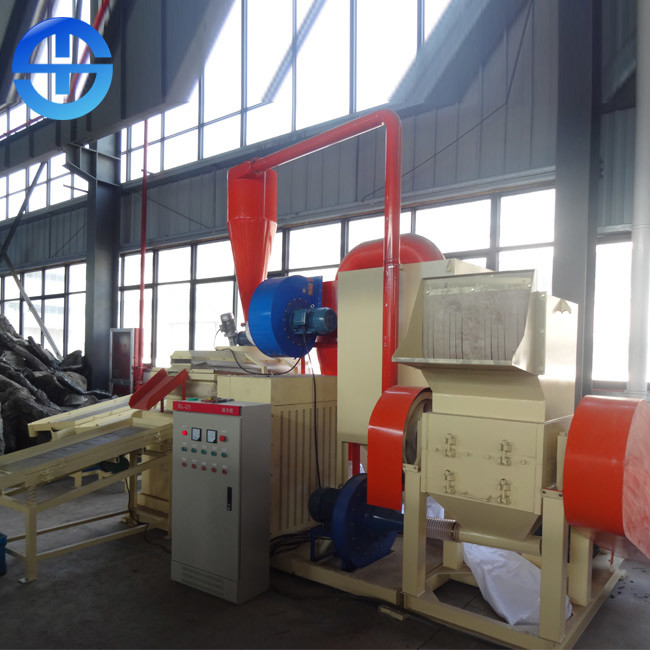

TMS-600 copper wire granulator machine scrap copper wire recycling machine
Copper wire granulator machine is used for recycling scrap copper wires/cables with diameter less than 20mm, better for single conductor diameter of 0.2-0.5mm. Scrap copper wires are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector.
Product Feature
1. Compact structure, small area, general site requirements, easy handling
2. Easy to operate and reduce labor costs (1-2 people).
3. Low energy consumption, high output and cost saving.
4. Good separation effect without secondary separation
| Equipment Components | Crusher |
Motor Power:37kw Blade Quantity: 10 Quantity of Fixed Blades: 4 Screen Size: Φ3mm / Φ4mm Spindle speed: 600r/min |
| Separator |
Vibration Motor: 1.5kw Vibration: Frequency Regulation Screen Diameter: 100mesh |
|
| Bottom Blower Fan |
Fan Power: 4kw Filter: Φ325*900*2 Air Volume Control: Airlock Control |
|
| Upper Suction Fan |
Fan power: 4kw Material Collecting Mode: Cyclone Dust Collector Collecting Bag: 1 Dust bag: 9 |
|
| Regulating Airlock | Fan Power: 0.37kw |
