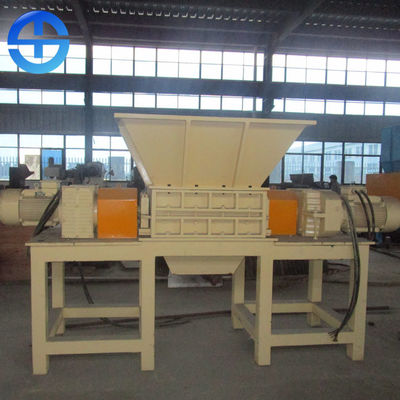

380V Scrap Metal Shredding Machine 50 R/Min Speed With 4 - 5 Ton/H Capacity

380V Scrap Metal Shredding Machine 50 R/Min Speed With 4 - 5 Ton/H Capacity

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CO, CE
Model Number: TMS-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 31000-35000 per set
Packaging Details: Ply wooden case with 4200*2300*2700 mm or Full container
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month
Get Best Price Contact Now

Detail Information

Name: Metal Shredding Machine Function: Shredding
Size: 4100*2230*2670 Mm Power: 45 Kw*2
Capacity: 4-5 Ton/h Speed: 50 R/min
Weight: 9500 Kg Voltage: 380 V Or Customized
High Light:

scrap metal shredder machine


double shaft shredder machine

Product Description

380V Scrap Metal Shredding Machine 50 R/Min Speed With 4 - 5 Ton/H Capacity


Introduction of metal shredding machine


The multi-function intelligent strong crusher adopts the design of multi axis counter roller. The utility model has the advantages of small noise, large torque and large crushing chamber. The shape design of the cutter is unique, and it has a great grip on large and hollow materials. The tool material is made of special tool steel by special treatment. It has the advantages of cracking, tearing, extrusion and other crushing capacity, concentrated crushing particle size and wide crushing range. It is widely used in the crushing of waste wires, cables, PVC, PE, PP, PS, ABS, plastics, glass, copper clad laminate and leftover materials, waste rubber (such as waste tires), waste plastics, wood pipes and bulk materials. The shape of the broken material is not limited. Frame type, box type, hollow type, tube type, ball type and irregular shape can be used.


Specification of metal shredding machine


Model TMS-1200
Power 45kw*2
Voltage 380v/50hz
Capacity 4-5 ton/h
Speed 50 r/min
Size 4100*2230*2670 mm
Weight 9500 kg


Features of metal shredding machine


(1). The machine is reasonably designed and welded with high-quality steel.

(2). Fastening with high strength screw, solid structure, durable.

(3). The design of the main engine is exquisite, and the separation design is adopted for the fragments to make the output higher.

(4). The processed fragments are uniform and wear-and-tear is small. Various sieves can be replaced at the same time to meet different needs.

(5). Tools of different materials are equipped at the same time, so that they can be flexibly adjusted for different materials. They can be grinded after bluntness, used many times, and have long service life.

(6). The machine has the advantages of advanced structure, beautiful appearance, simple operation, stable operation, low investment and high efficiency.

(7). Equipped with large belt pulley to increase the inertia of crusher, it can save energy and strong crushing.


Working principle of metal shredding machine


The main working parts of this machine are a pair of relatively rotating rollers, which are equipped with spirally arranged gear teeth. When the material enters the machine, it is torn and sheared by the teeth of the high hardness wear-resistant material which rotates staggeredly and is splitted, broken and crushed into smaller than the set size, and then forcibly excluded from the machine. Roller driven by motor through reducer has super-large torque, encounter difficult debris, will automatically reverse under the action of PLC automatic control system, and many times positive and negative, until the material is broken and discharged.


Application of metal shredding machine


The items that can be torn up by metal shredding machine are

(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.

(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.

(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.

(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.

(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television.

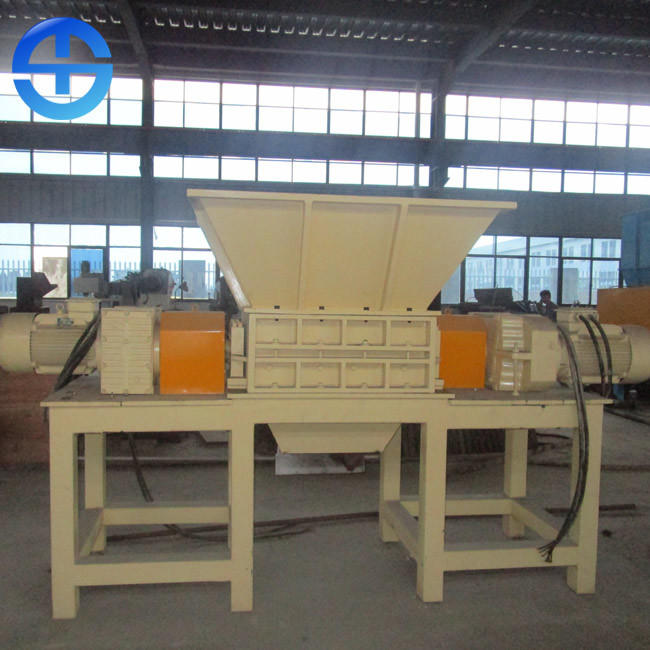

380V Scrap Metal Shredding Machine 50 R/Min Speed With 4 - 5 Ton/H Capacity 0
