• 380V 240V Recycling 11.92kw Copper Cable Granulator Machine
  • 380V 240V Recycling 11.92kw Copper Cable Granulator Machine
380V 240V Recycling 11.92kw Copper Cable Granulator Machine

380V 240V Recycling 11.92kw Copper Cable Granulator Machine

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO, CE
Model Number: Mini-400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Standard export ply wooden case 1600*1600*2000 mm.
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Cable Granulator Function: Recycle Copper
Application: Scrap Copper Cable /wires Power: 11.92kw
Capacity: 80-100 Kg/h Size: 1500*1500*1900 Mm
Weight: 750kg Voltage: 380 V/50 HZ
High Light:

copper wire granulator separator

,

copper cable granulator machine

Product Description

80-100 kg/h Small Mini-400 Copper Cable Granulator Copper cable Recycling Machine

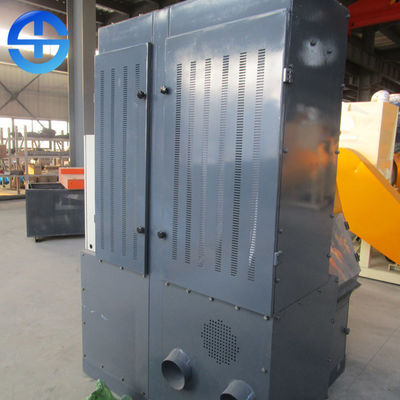

380V 240V Recycling 11.92kw Copper Cable Granulator Machine 0



80-100 kg/h Small Mini-400 Copper Cable Granulator Copper cable Recycling Machine

All over the world, there are many kinds of used or exchanged waste wires and telecommunication cables. Our aim is to overcome the loss of copper and other by-products in regeneration treatment and make them more scientific and automatic. It cuts down personnel, improves the recovery rate, and thus improves production efficiency. It not only develops the national economy and protects the environment, but also is conducive to the development of the recycling industry.

Machine Description

Copper cable granulator is used for recycling scrap copper wires/cables with diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm. The wire is like auto wires, communication cables and kinds of miscellaneous wires and cables.Scrap copper wires are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector. The recovery rate can reach 99.9%.

Machine Specifications
Model Size (mm) Capacity Wire diameter range Power Voltage Weight
Mini-400

1500*1500*1900

80-100 kg/h 0.1-20 mm 11.92 kw 380/240V 750kg
Machine Features
1. Compact structure, beautiful appearance, reasonable layout and convenient installation.

2. Fully automatic intelligent control makes the equipment feed uniformly and operate intelligently, which makes the operation more convenient, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.

3. The crusher is roll-to-roll, with low speed, high torque, large output, low noise and simple operation.

4. The sorting rate of air separation equipment is over 99%.

5. The recycling system makes the semi-finished products comminuted twice, which ensures the complete separation of metal and non-metal.

6. Bag dust collecting equipment can effectively control dust spillover, and the dust removal efficiency is over 99%.

Guarantee

1. The machines except spare parts are guaranteed for 12 months.

2. Engineer will be sent to your place to guide how to operate for the production line.

3. We will send you extra set of spare parts and two sets small vibrators.

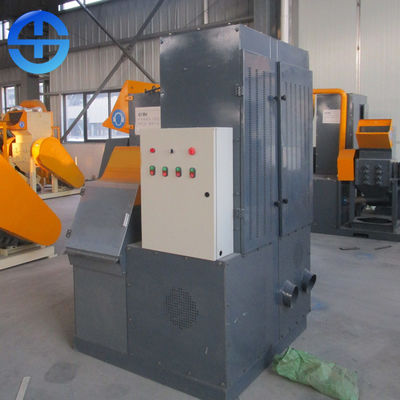

380V 240V Recycling 11.92kw Copper Cable Granulator Machine 1
