Integrated 80T Force 7.5kw Hydraulic Alligator Metal Shear Machine

Integrated 80T Force 7.5kw Hydraulic Alligator Metal Shear Machine

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO, CE
Model Number: TMS-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: 20 or 40 feet container
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Name: Metal Shearing Machine Function: Shearing Scrap Metal
Max. Shear Force: 80 T Blade Length: 600 Mm
Power: 7.5 Kw Max. Open: 300 Mm
Max. Holding Force: 12 T Shearing Material Size: 30*30 Mm, Φ35 Mm
High Light:

alligator metal shear

,

scrap metal cutting shears

Product Description

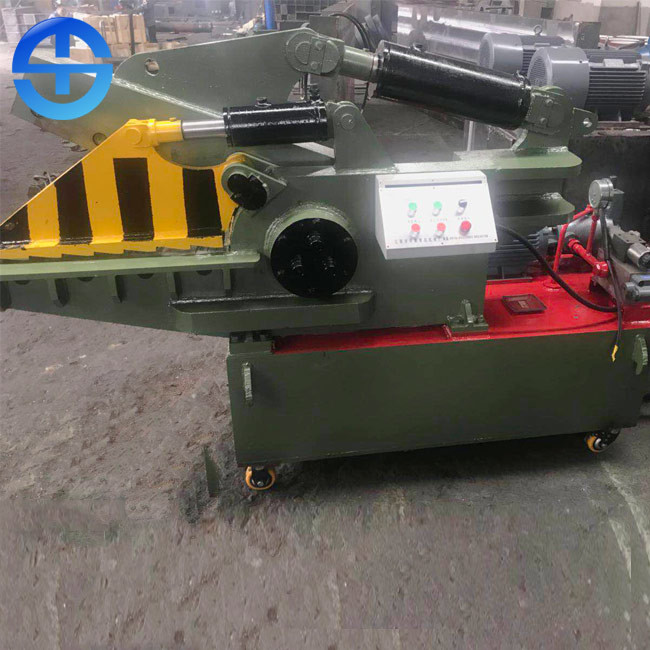

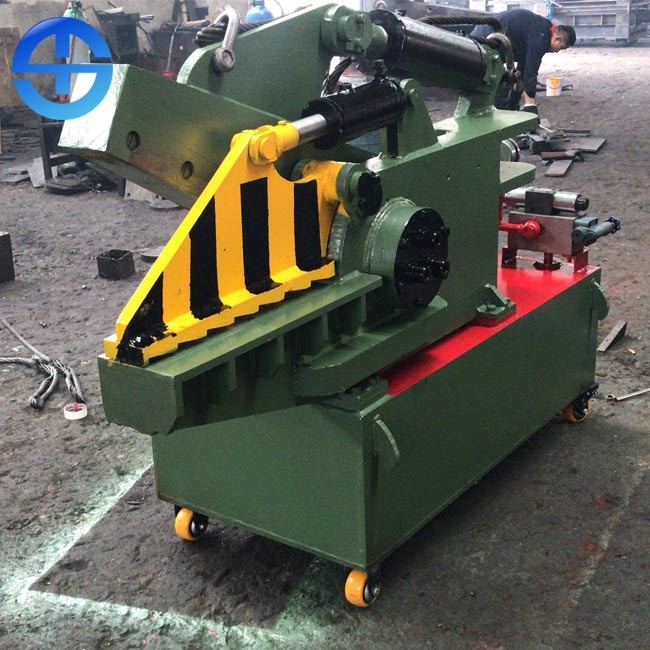

Integrated 80T Force 7.5kw Hydraulic Alligator Metal Shear Machine



Integrated 80T Force 7.5kw Hydraulic Alligator Metal Shear Machine 0

Machine Introduction

The export-oriented integrated metal shearing machine is suitable for metal recycling and processing plants, scrap automobile dismantling plants, smelting and foundry industries. It cuts profiles of various shapes and various metal structural parts in cold state and processes them into qualified furnace charge. It applies to scrap metal (iron, steel, steel pipe, etc.) cold shearing of different section forms. This machine is equipped with fast unit, and the shearing speed is doubled than before, the power is saved by 50%.

Product Features

1. A longer life: shear head adopts steel casting, overcomes the disadvange of easy deformation of the welded plate.

2. Simple operation: A new integration design, convenient movement. Hydraulic control handle, easy to operate, can realize automatic and semi-automatic operation, convenient and reliable operation.

3. Hydraulic acceleration system: the shearing speed is doubled than before, the power is saved by 50%.

4. Hydraulic driven with hand-value or PLC, use diesel engine when electrical motor is unavailable.

5. Installation does not require sole screw, where there is no power supply, diesel engine can be used as power.

Product specification

Item Max Shear force Max. Open

Max. Holding force

Blade length Frequency per minute Power Size of shearing material
63 63T 280mm 10T 600mm 8-10 7.5kw 30*30 Φ40mm
800 80T 300mm 12T 600mm 8-10 7.5kw 30*30 Φ35mm
1000 100T 300mm 16T 600mm 8-10 11kw 40*40 Φ45mm
1200 120T 300mm 20T 600mm 8-10 15kw 45*45 Φ50mm
1600 160T 320mm 25T 700mm 10-12 18.5kw 55*55 Φ63mm
2000 200T 380mm 25T 600mm 12-14 22kw 65*65 Φ75mm
2500 250T 480mm 26T 1000mm 12-14 30kw 70*70 Φ80mm
3150 315T 520mm 42T 1200mm 12-14 37kw 80*80 Φ90mm

Integrated 80T Force 7.5kw Hydraulic Alligator Metal Shear Machine 1
