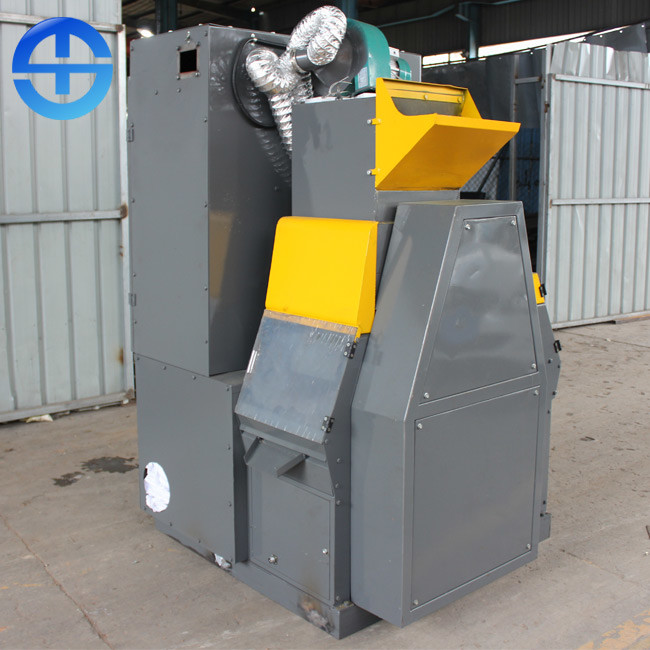

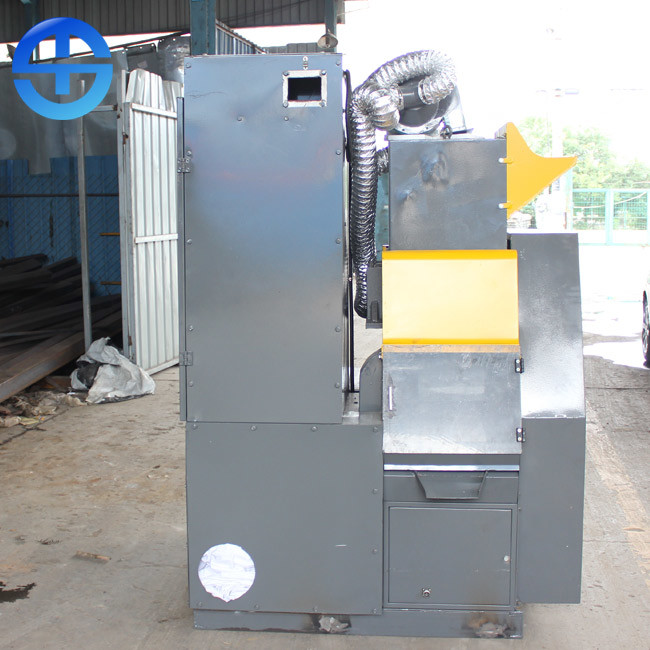

High Torque Scrap Copper 100kg/H Recycling Granulator Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TMS |
| Certification: | CE. ISO, CO |
| Model Number: | Mini-400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Standard exported ply wooden case |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Name: | Scrap Copper Cable Granulator | Output: | 80-100kg/h |
|---|---|---|---|
| Function: | Recycle Scrap Copper Cables | Copper Purity: | 99.9% |
| Size: | 1500*1500*1900mm | Total Power: | 11.92kw |
| Weight: | 750kg | Type: | Dry |
| High Light: | scrap metal granulators,copper cable granulator machine |
||
Product Description
100% Copper Purity Scrap Copper Cable Granulator Machine Wire Recycling Machine
Machine Introduction
Scrap copper cable granulator machine is mainly used for recycling waste copper wire, waste wire, waste cable and so on. The cable processed diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm.Simply speaking, it is to crush the waste copper wire, wire and cable first, and then separate the crushed copper and plastic to achieve the distribution and utilization after separation. Because the separated copper looks as big as rice grain, it is called "copper rice machine", which can also be seen that it is an environmentally friendly mechanical product.
Machine Working process
1. Crush. First crush the cable into copper and plastic granules. After crushing, the size of granules are generally 2-8 mm.
2. Separation. Using the principle of different specific gravity of metal (copper) and non-metal (plastic), two kinds of media with different specific gravity are separated by air flow and vibration.
Machine Advantage
After crushing and processing of waste wires and cables, automatic mechanical separation can completely separate copper and plastics, and achieve the purpose of comprehensive utilization, with high economic benefits. In addition, the equipment is an integral combination structure, easy to install and debug, and transport (customers can be purchased after the power supply can be produced), stable performance.
1. Compact structure, beautiful appearance, reasonable layout and convenient installation.
2. Fully automatic intelligent control makes the equipment feed uniformly and operate intelligently, which makes the operation more convenient, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.
3. The crusher is roll-to-roll, with low speed, high torque, large output, low noise and simple operation.
4. Platform combination is adopted for crusher, sorting equipment and dust collecting equipment, which makes the equipment easy to move and transport, and increases the flexibility of equipment.
5. The alternating cutter shaft is used in the rotor of the crusher, which makes the crusher more efficient, less noisy and more stable in operation.
6. The sorting rate of air separation equipment is over 99%.
7. The recycling system makes the semi-finished products comminuted twice, which ensures the complete separation of metal and non-metal.
8. Bag dust collecting equipment can effectively control dust spillover, and the dust removal efficiency is over 99%.
Power for all part
| serial number | Description | Quantity | Power (kw) |
| 1 | crusher | 1 set | 7.5 |
| 2 | Blower fan | 1 set | 2.2 |
| 3 | dust collector blower | 1 set | 1.5 |
| 4 | Vibrator motor | 1 sets | 0.36 |
| 5 | Small vibrator | 2 set | 0.18 |
Machine Technical parameters
| Model | Dimension (mm) | Total Power (kw) | Capacity (kg/h) | Weight (kg) |
| Mini-400 | 1500*1500*1900 | 11.92 | 100 | 750 |
| TMS-400 | 2700*1900*2300 | 23.12 | 150-200 | 1200 |
| TMS-600A | 4000*1950*2300 | 48.36 | 300-400 | 3400 |
| TMS-600B | 4300*1950*2400 | 52.36 | 300-400 | 3400 |
| TMS-800 | 9200*4100*2400 | 78.76 | 500-800 | 8000 |
| TMS-1200 | 16000*10000*3000 | 129.36 | 1000-1500 | 12000 |
