Small Mechanical Pure Dry Type Copper Scrap Metal Granulators 80-100 Kg/H

Minimum Order Quantity : 1 set Price : Negotiated
Packaging Details : Standard exported ply wooden case Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 20 sets per month
Place of Origin: China Brand Name: TMS
Certification: CE. ISO, CO Model Number: Mini-400

Detail Information

Name: Waste Copper Wire Granulator Type: Dry
Function: Separate Copper From Plastic Copper Purity: 99.9%
Size: 1500*1500*1900mm Total Power: 11.92kw
Input: 80-100kg/h Weight: 750kg
High Light:

copper wire granulator separator


scrap metal granulators

Product Description

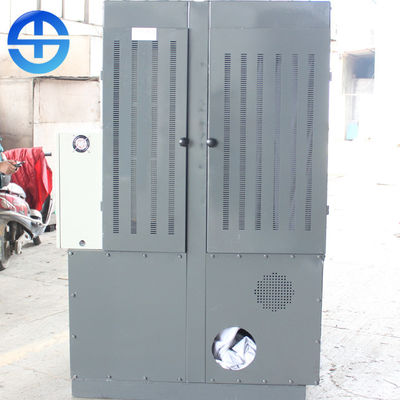

Small Mechanical Pure Dry Type Copper Scrap Metal Granulators 80-100 Kg/H 0


Brife Introduction

Waste copper wire granulator machine is mainly used for recycling waste copper wire, waste wire, waste cable and so on. The diameter of cable processed is less than 25mm, better for single conductor diameter of 0.2-0.5mm.Simply speaking, it is to crush the waste copper wire, wire and cable first, and then separate the crushed copper and plastic to achieve the distribution and utilization after separation. Because the separated copper looks as big as rice grain, it is called "copper rice machine", which can also be seen that it is an environmentally friendly mechanical product.

Working principle

1. Crushing. First crush the cable into copper and plastic granules. The size of granules are generally 2-8 mm after crushing.

2. Separating. Using the principle of different specific gravity of copper and plastic, two kinds of media with different specific gravity are separated by air flow and vibration.

Machine Features

After crushing and processing of waste wires and cables, automatic mechanical separation can completely separate copper and plastics, and achieve the purpose of comprehensive utilization, with high economic benefits. In addition, the equipment is an integral combination structure, easy to install and debug, and transport (customers can be purchased after the power supply can be produced), stable performance.

1. Compact structure, beautiful appearance, reasonable layout and convenient installation.

2. Fully automatic intelligent control makes the equipment feed uniformly and operate intelligently, which makes the operation more convenient, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.

3. The crusher is roll-to-roll, with low speed, high torque, large output, low noise and simple operation.

4. Platform combination is adopted for crusher, sorting equipment and dust collecting equipment, which makes the equipment easy to move and transport, and increases the flexibility of equipment.

5. The alternating cutter shaft is used in the rotor of the crusher, which makes the crusher more efficient, less noisy and more stable in operation.

6. The sorting rate of air separation equipment is over 99%.

7. The recycling system makes the semi-finished products comminuted twice, which ensures the complete separation of metal and non-metal.


serial number Description Quantity Power (kw)
1 crusher 1 set 7.5
2 Blower fan 1 set 2.2
3 dust collector blower 1 set 1.5
4 Vibrator motor 1 sets 0.36
5 Small vibrator 2 set 0.18

Technical parameters

Model Dimension (mm) Total Power (kw) Capacity (kg/h) Weight (kg)
Mini-400 1500*1500*1900 11.92 100 750
TMS-400 2700*1900*2300 23.12 150-200 1200
TMS-600A 4000*1950*2300 48.36 300-400 3400
TMS-600B 4300*1950*2400 52.36 300-400 3400
TMS-800 9200*4100*2400 78.76 500-800 8000
TMS-1200 16000*10000*3000 129.36 1000-1500 12000

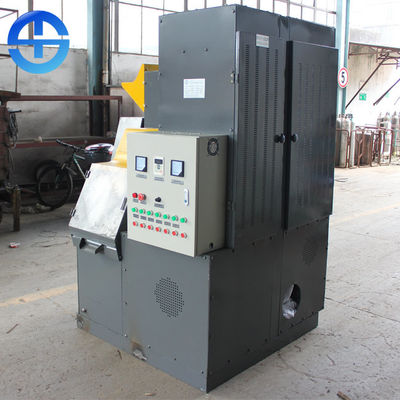

Small Mechanical Pure Dry Type Copper Scrap Metal Granulators 80-100 Kg/H 1
