• 400 Kg/H Output 52.36kw Copper Wire Recycling Machine
  • 400 Kg/H Output 52.36kw Copper Wire Recycling Machine

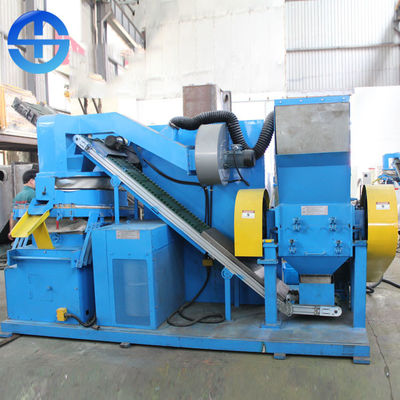

400 Kg/H Output 52.36kw Copper Wire Recycling Machine

400 Kg/H Output 52.36kw Copper Wire Recycling Machine

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CO, ISO, CE
Model Number: TMS-600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: One 20 feet container
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Cable Wire Granulator Function: Crush And Separate Copper From Plastic
Type: Dry Motor Power: 49.86kw
Separating Rate: 99.9% Productivity: 300-400 Kg/h
Total Weight: 3400kg Warranty: 1 Year
High Light:

copper wire granulator separator


scrap metal granulators

Product Description

Medium Model 600 Copper Cable Wire Granulator Separator Machine 300-400 Kg/H
Brife Introduction

Copper wire granulator machine is used for recycling scrap copper wires/cables with diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm. The wire is like auto wires, communication cables and kinds of miscellaneous wires and cables.

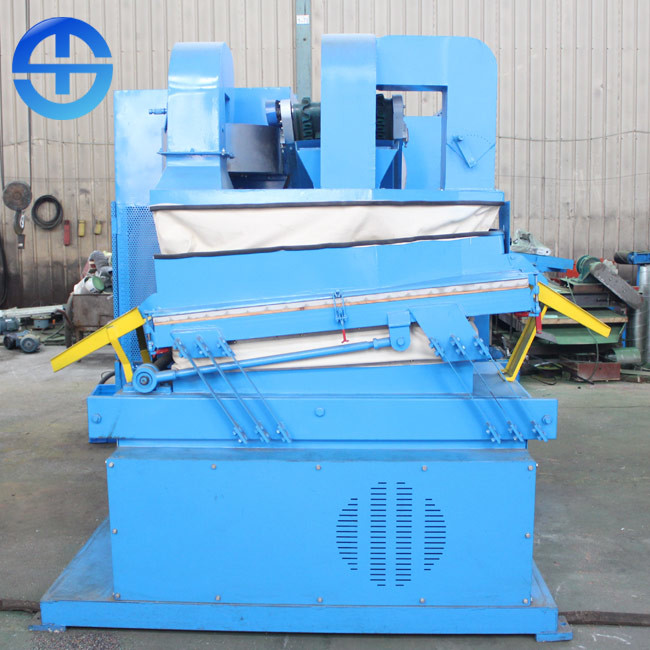

copper wires are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector. The copper granules and plastic granules will be separated by small vibrator twice time. The recovery rate can reach 99.9%.

Technical parameters
Model Dimension (mm) Total Power (kw) Capacity (kg/h) Weight (kg)
Mini-400 1500*1500*1900 11.92 100 750
TMS-400 2700*1900*2300 23.12 150-200 1200
TMS-600A 3980*1950*2216 49.86 300-400 3400
TMS-600B 4300*1950*2400 52.36 300-400 3400
TMS-800 9200*4100*2400 78.76 500-800 8000
TMS-1200 16000*10000*3000 129.36 1000-1500 12000

Protective Devices
1). There is a protective baffle inside the material inlet to prevent crushed material from casting out of the feeding mouth.
2). High-speed rotating flywheels and belt transmission parts are covered with fixed protective covers.
Noise Level
1). The machine’s unloading noise level is below 80dB.
2). Special Note: when the machine is working, the noise would increase as the machine’s working load is increasing, so the operator must wear protective earplugs in working.
Use & Maintenance
In the case of correct selection of machines, the service life also depends on appropriate use and timely maintenance. High temperature complex lithium base grease is used for bearings, so they are high temperature resistant, good at impact resistance, have a long service life. According to the actual use, users shall regularly inject grease. When Chopper blades get blunt, remove the blades and sharpen them with a blade sharpening machine, and adjust the spacing between fixed blades and rotating blades to 0.15mm-0.25mm. The grease for bearings should be replaced every 300 working hours, and grease for chains shall be added every 15000 working hours.
