Stator Disassembling 380V dia 250mm Scrap Motor Recycling Machine

Stator Disassembling 380V dia 250mm Scrap Motor Recycling Machine

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: TMS-003

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard exported ply wooden case or Full container for large quantity
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Motor Stator Disassembling Machine Function: Recycling Copper From Motors
Stator Diameter: 100-250 Mm Power: 4.5 Kw
Capacity: 30-50 Pieces/h Size: 1470*740*2040 Mm
Weight: 1050 Kg Voltage: 380V Or Customized
High Light:

Dia 250mm Scrap Motor Recycling Machine

,

30 piece/h Scrap Motor Recycling Machine

,

Dia 250mm scrap electric motor recycling machine

Product Description

Stator Disassembling 380V dia 250mm Scrap Motor Recycling Machine

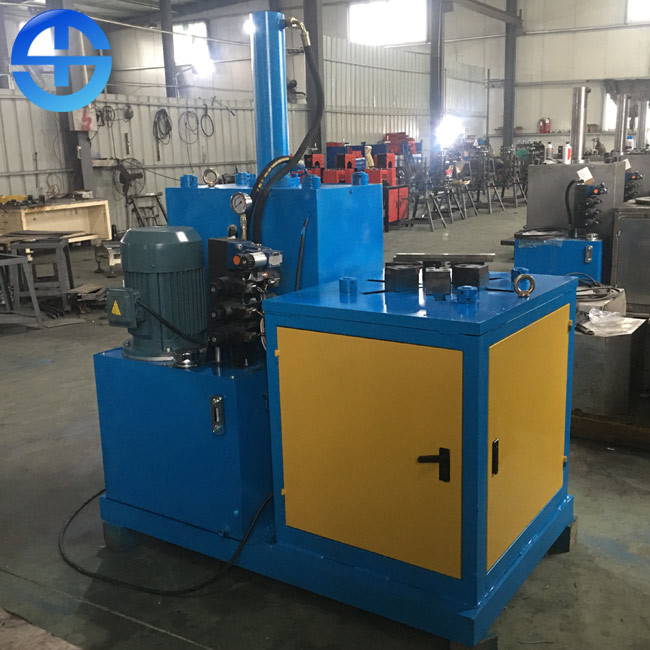

Stator Disassembling 380V dia 250mm Scrap Motor Recycling Machine 0

Introduction of Motor stator disassembling machine

As the name suggests, the motor stator disassmbling machine is a kind of electric motor dismantling equipment. It recycles the waste electric motor, decomposes the electric motor, completely separates the internal copper wire and silicon steel sheet, so as to achieve the process of breaking and decomposing. The equipment to complete this work is what we call the electric motor dismantling machine.

The scrap stator recycling machine is used for cutting and pulling copper out from stator. It can be process all kinds of motor stator with external diameter 100-250mm. It cut the stator/motor in half firstly, then take all the inside copper out finally that all steps within 2 times. This machine is composed of hydraulic system, electronic control system, blade, push rod, claws, motors and main body. It is used in the motor factory to recover the unqualified motor stator enameled wire and steel sheet, and also widely used in some factories specialized in the recovery of motor disassembly. It is also widely used in the recovery of copper wire in washing machine motor and air conditioning compressor.The machine is flexible and convenient, easy to operate, compact in structure and large in output.

Advantages of motor stator disassembling machine

1. Good working environment, energy conservation and environmental protection, no pollution

2. Easy operation, save labor. One worker can operate it.

3. The recovery efficiency is high and the economic benefit is huge. The disassembly efficiency of a machine is equal to the disassembly efficiency of several people, which saves time and labor (for example, it takes about 12-18 seconds to pull out all the copper wires at one end of the stator of an ordinary 2.2kW 4-pole motor).

4. Cutting blade, gripping claw can adjust the reciprocating distance, more conducive to the placement of stator coil.

5. Equipped with automatic line grabbing device, the worker can greatly reduce the labor intensity in the process of operation.

Technical parameters of motor stator disassembling machine

Model Power Capacity External diameter Size (mm) Weight
TMS-003 4.5kw 30-50 pcs/h 100-250mm 1470*740*2040 1050kg

Maintenance of motor stator disassembling machine

(1) This machine has a special motor, which should not be obstructed by dust, fiber and other sundries in the air inlet.

(2) In case of any abnormal noise or motor failure, stop the machine for inspection. Do not start up compensation test before the failure is found out and eliminated.

(3) After three months of storage, it is necessary to conduct a comprehensive inspection and test run before operation;

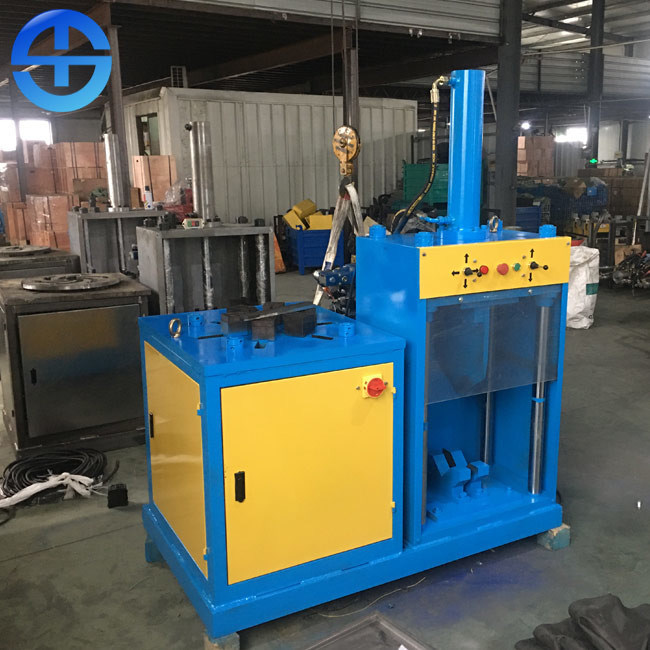

Stator Disassembling 380V dia 250mm Scrap Motor Recycling Machine 1
