High Torque 4000kg/H 5000kg/H Double Shaft Shredder

High Torque 4000kg/H 5000kg/H Double Shaft Shredder

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: ISO, CE
Model Number: TMS-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 33800-36500 per set
Packaging Details: Exported ply wooden case for double shaft shredder
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Name: Double Shaft Shredder Function: Shred Scraps
Dimension: 4100*2230*2670mm Motor Power: 2*45kw
Input: 4000-5000kg/h Runing Speed: 50r/min
Weight: 9.5ton Voltage: 380V/50HZ
High Light:

5000kg/H Double Shaft Shredder


4000kg/H Double Shaft Shredder


4000kg/H double shaft shredder

Product Description

High Torque 4000-5000kg/H Double Shaft Shredder For Various Scraps


Description of double shaft shredder


Double shaft shredder is a kind of large and small-sized double shaft shredder, which is made of twin shaft cutter roller to shear or bite and tear materials. The equipment is mainly composed of knife roller, screen, fixed knife, bearing box, box support, feeding system, power system and electrical control system. Because of its low speed and high torque, double shaft shredder is suitable for tearing hard or bulky materials. Such as wood, tires, waste household appliances, metal and so on.


Specification of double shaft shredder


Model TMS-1200
Motor Power 45kw*2
Voltage 380v/50hz, 3 phase
Input 4000-5000kg/h
Running Speed 50 r/min
Dimension 4100*2230*2670 mm
Weight 9.5 ton


Features of double shaft shredder


(1). The machine is reasonably designed and welded with high-quality steel.

(2). High Alloy blades materials with optional hard-facing to increase cutting effectiveness.

(3). High Tolerance form contamination.

(4). Recirculation systems for multi-pass processing if needed to meet required size reduction.

(5). Automation reversing function when system hits an overload condition.

(6). Shredder materials can be fed using conveyor, loader, grapple or forklift.

(7). The design of the main engine is exquisite, and the separation design is adopted for the fragments to make the output higher.

(8). The processed fragments are uniform and wear-and-tear is small. Various sieves can be replaced at the same time to meet different needs.

(9). Tools of different materials are equipped at the same time, so that they can be flexibly adjusted for different materials. They can be grinded after bluntness, used many times, and have long service life.


Application of double shaft shredder


(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.

(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.

(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.

(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.

(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television, copper wire.


Working process of double shaft shredder


The main working parts of double shaft shredder are a pair of relatively rotating rollers, which are equipped with spirally arranged gear teeth. When the material enters the machine, it is torn and sheared by the teeth of the high hardness wear-resistant material which rotates staggeredly and is splitted, broken and crushed into smaller than the set size, and then forcibly excluded from the machine. Roller driven by motor through reducer has super-large torque, encounter difficult debris, will automatically reverse under the action of PLC automatic control system, and many times positive and negative, until the material is broken and discharged.

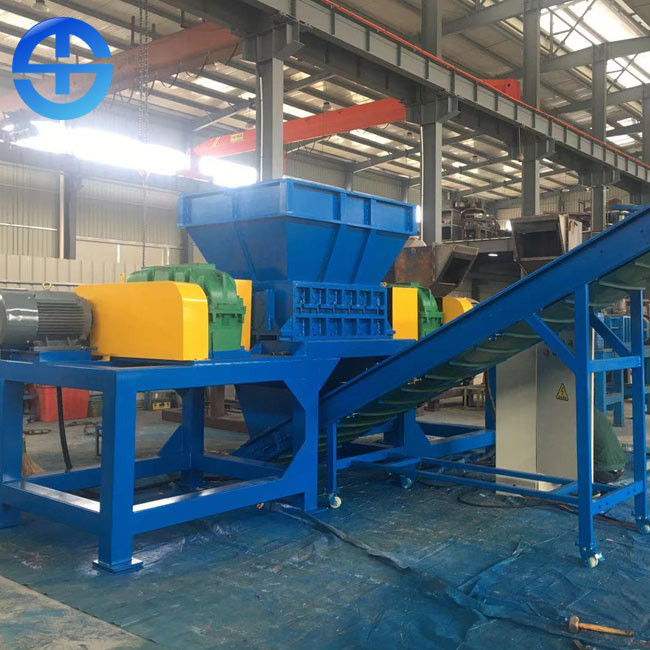

High Torque 4000kg/H 5000kg/H Double Shaft Shredder 0

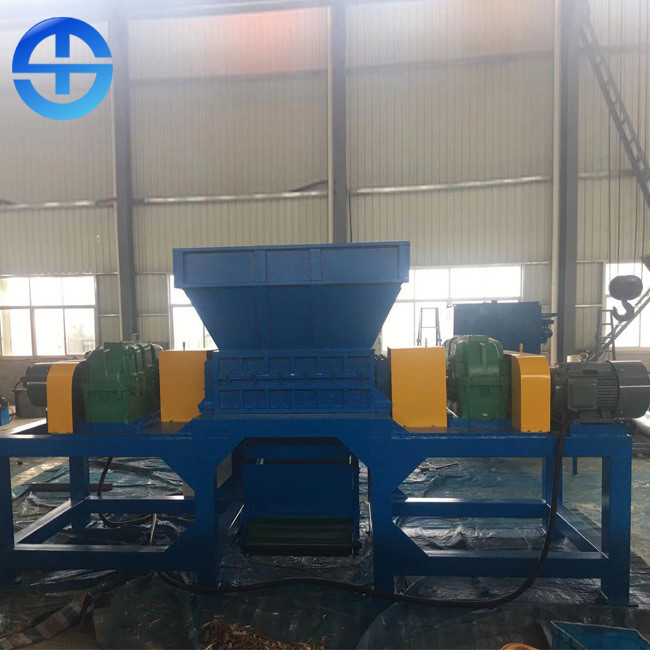

High Torque 4000kg/H 5000kg/H Double Shaft Shredder 1
