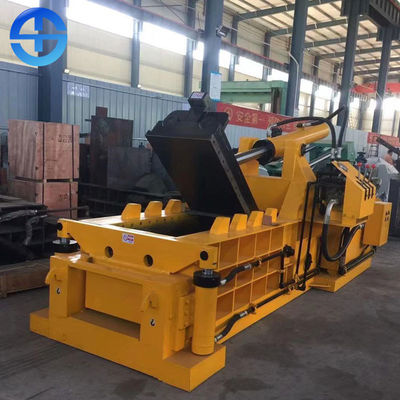

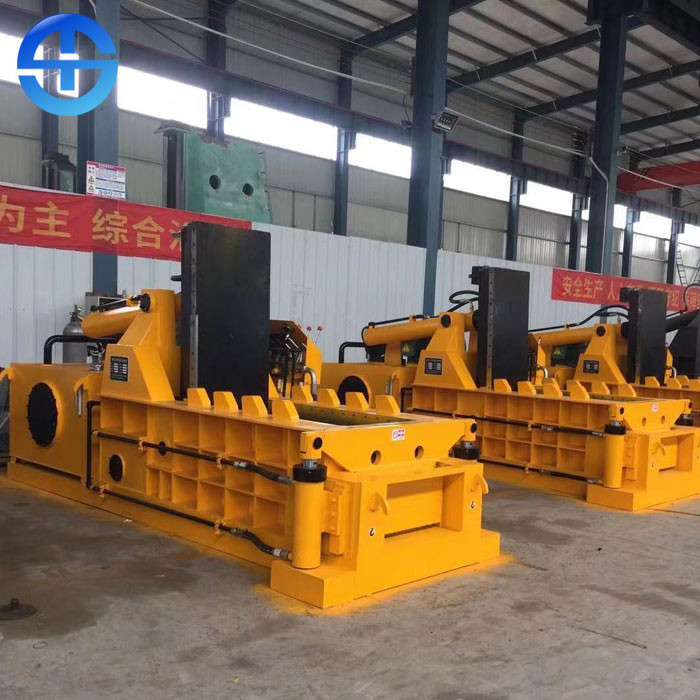

200*500mm Bale Size Forward Out Scrap Baling Machine
Product Details:
| Place of Origin: | Zhengzhou, China |
| Brand Name: | TMS |
| Certification: | CE, ISO |
| Model Number: | F1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD13300-13900 per set |
| Packaging Details: | Full container 20'GP or 40'GP for metal scrap metal baler |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 25 sets per month |
|
Detail Information |
|||
| Name: | Scrap Metal Baler | Usage: | Compact Metals Into Bale |
|---|---|---|---|
| Application: | Scrap Metals | Motor Power: | 11kw |
| Pressure: | 1000KN | Bale Size: | 200*500mm |
| Material Box: | 1100*500*500mm | Bale Out: | Forward Out / Manual |
| High Light: | 200*500mm Scrap Baling Machine,Forward Out Scrap Baling Machine,200*500mm mobile scrap metal baler |
||
Product Description
200*500mm Bale Size Forward Out Scrap Baling Machine
Introduction of scrap metal baler
Metal scrap baling machine can extrude various kinds of relatively large scrap metal, scrap steel, scrap iron, scrap copper, scrap aluminum, disintegrate car shell, waste oil drum into cuboid, cylinder, octagonal shape and other qualified furnace charge. In order to facilitate storage, transportation and recycling. After being put into the furnace, the pressing loss is lower. The whole production process does not need heating, additives or other processes, direct cold pressing molding, forming at the same time also ensure the original material unchanged. For example, cast iron scrap is used instead of cast pig iron after forming. For castings of special material, recycling is more significant.
| Model | F1000 |
| Nominal pressure | 1000KN |
| Power | 11kw |
| Pump | 40YCY14-1B |
| Material box size | 1100*500*500mm |
| Bale size | 220*500mm |
| Bale-out mode | Turn over / manual |
| Bale density | ≥1800kg/m3 |
| Production efficiency | 0.9-1.1 ton / hour |
Materials of scrap metal baler
Materials: iron / steel: scrap iron, light and thin materials, scrap, car shell, scrap, waste oil bucket, bicycle frame, lathe chips, shavings, iron chips, steel chips, color steel tiles, stainless steel.
Scrap aluminum: aluminum chips, aluminum shavings, aluminum profiles, doors and windows, cans, aluminum foil, aluminum alloy.
Scrap copper: copper wire, copper plate, copper scrap, copper shavings, copper wire
Features of scrap metal baler
1. It adopts the structure of rotating cover. The opening area of material box is large, especially suitable for large, empty and lightweight materials.
2. Hydraulic drive is used in this machine, having reasonable design, compact structure and reliable sealing performance.
3. Super bin design with large one-time feeding and high working efficiency.
4. Stable movement, low consumption of motive power, strong adaptability and visibility of operating.
B. Overall structure
Structure of scrap metal baler
This machine is composed of frame, hydraulic system and electric system.
1. Main machine is composed of frame, door cover and cover cylinder, main cylinder and main pressure head, side cylinder and side pressure head, bale turning cylinder and bale turning machine etc.
1) Frame is composed of base, right and left wall plates, cover plate, main cylinder bracket, side cylinder frame etc. Compressed bin is composed of base, right and left wall plates, door cover, main pressure head, side pressure head and panel turnover etc., each part (except panel turnover) is installed with abrasion resistant lining board through carburizing and quenching.
2) Door cover and cover cylinder. Door cover should be hinge jointed with spindle sleeve on right and left wall plates, cover cylinder should also be hinge jointed with beam support by pin, slipper of door cover (tapered end should be installed at front end) should be connected with piston rod head of cover cylinder, under movement of cover cylinder, close and open of door cover are finished, at this time, it takes effect of tight locking and loose locking.
2. Hydraulic system is composed of motor pump station, valve station, oil tank and pipeline etc.
3. Electric system is mainly composed of motor start circuit etc.
