2-3 Ton Briquetting Press Machine With PLC Control Cast Iron Scrap
Contact Person : Thomas Wang
Phone Number : +86 18203683590
WhatsApp : +8618203683590
Minimum Order Quantity : | 1 set | Price : | Negotiated |
---|---|---|---|
Packaging Details : | Exported ply wooden case or Full container | Delivery Time : | 7-10 working days |
Payment Terms : | L/C, T/T, Western Union, MoneyGram | Supply Ability : | 30 sets per month |
Place of Origin: | Zhengzhou, China | Brand Name: | TMS |
---|---|---|---|
Certification: | CE, ISO | Model Number: | TMS-6300 |
Detail Information |
|||
Name: | Briquette Machine | Function: | Press Metal Sawdust Into Block |
---|---|---|---|
Motor Power: | 30kw | Briquette Diameter: | Φ200mm |
Input Per 8hours: | 8-10 Ton | Work Efficiency: | 3-5 Piecs/min |
Operation Mode: | Manual / Full Automatic | Briquette Weight: | 8-12kg |
High Light: | 5 Pieces/Minute Briquetting Press Machine,3 Pieces/Minute Briquetting Press Machine,200mm hydraulic briquette machine |
Product Description

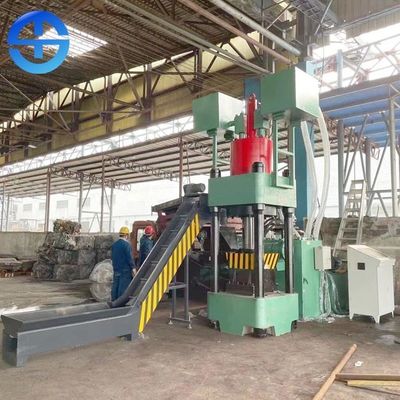

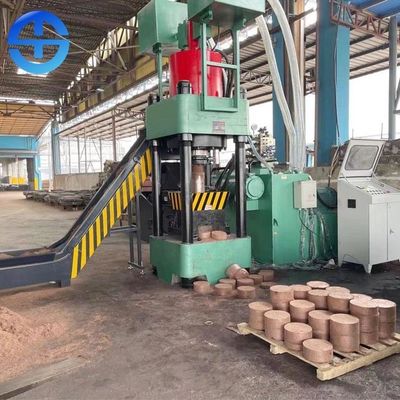

Briquette Size Φ200mm 3-5 Pieces/Minute Briquette Machine
Introduction of briquette machine
Metal briquette machine presses the metal waste under high pressure into a briquette form. Normally it is used to reduce the storage cost as well as the conversion ratio in the furnace for metal recycling. The study shows the energy cost to get metal from metal recycling is only 50-90% by using raw minerals. Also, this will help to reduce the exhaust on the metal manufacturing process.
Energy consumption from recycling compare to use raw mineral
Aluminium 95%
Copper 82%
Zin 62%
Pb 73%
The raw material cost takes about 60% in the foundry industry. If you want to own a positive market competitiveness under the same foundry technology, you must find cheaper material, the metal chips is a good substitution. And the briquetting metal brings more economic than directly use metal chips for smelting. Take iron as an example, the chips’ value amounts tens of the briquette, so the oxidation ratio is very high and easy to be blown away by the strong wind in the furnace, total the waste ratio is nearly 30%, but if use the briquette, the waste rate is only 5%. this means the metal chips after compress to be briquette, can improve 25% user ratio.
Raw Materials of briquette machine
Aluminum swarf/chipsCast Iron swarf/chips, Copper swarf/chips, Steel swarf/chips, Stainless Steel swarf/chips, Brass swarf/chips, Titanium swarf/chips, Nickel swarf/chips, etc.
Advantages of briquette machine
1. Hydraulic drive, stable operation, no vibration, safe and reliable;
2. Simple equipment foundation is needed;
3. It is controlled by PLC and can be operated manually or automatically.
4. Automatic feeding mechanism can be added according to user's requirements.
5. The whole steel casting is used in the frame to improve the reliability, stability and service life of the equipment.
Technical data of briquette machine
Sr. No. | Type name | Model or Data | ||||
Main cylinder | Acceleration cylinder | Push block cylinder | Feeding cylinder | |||
1 | Nominal pressure | 5306KN | 358KN | 500KN | 150KN | |
2 | Inner diameter of cylinder | Φ520mm | φ135mm | Φ200mm | φ110mm | |
3 | Piston diameter | Φ300mm | Φ70mm | Φ80mm | φ70mm | |
4 | Stroke | 430mm | 440mm | 240mm | 390mm | |
5 | System Max.pressure | 25Mpa | 25Mpa | 16Mpa | 16Mpa | |
6 | Upper and lower beams | Integral steel casting | ||||
7 | Main pressure cylinder | Integral steel casting | ||||
8 | Motor | 2 sets | 30kw | |||
9 | Oil pump | 2 sets | 80MCY14-1B | |||
10 | Briquette density | ≥2.0T/m3 (Aluminum powder) | ||||
11 | Briquette size | Φ200mm (Aluminum powder) | ||||
12 | Work efficiency | 3-5 pieces / min | ||||
12 | Production | 8-10 ton / 8 hours (Aluminum powder) | ||||
13 | System control | PLC program control, with adjustable text display; cartridge valve block | ||||
14 | Cooling mode | 12m2 water cooler, automatic temperature control | ||||
15 | Operation mode | Manual / Full automatic | ||||
16 | Machine size | 2600*3200*4000mm | ||||
17 | Machine weight | 15000kg |
