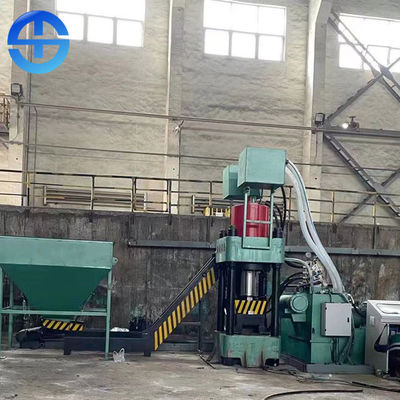

30kw 8-10 Ton / 8 Hours Briquetting Press Machine Metal Chip Briquetter

30kw 8-10 Ton / 8 Hours Briquetting Press Machine Metal Chip Briquetter

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-6300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Exported ply wooden case or Full container
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Metal Chip Briquetter Function: Press Metal Chips Into Briquette
Motor: 30kw Briquette Density: ≥2.0T/m3 (Aluminum Powder)
Briquette Diameter: Φ200mm (Aluminum Powder) Production: 8-10 Ton / 8 Hours (Aluminum Powder)
Operation Mode: Manual Machine Size: 2600*3200*4000mm
High Light:

10 Ton/8Hours Briquetting Press Machine

,

30kw Briquetting Press Machine

,

30kw Metal Chip Briquetter

Product Description

Power 30kw 8-10 Ton / 8 Hours Prodution Metal Chip Briquetter

Introduction of metal chip briquetter

This machine is mainly composed of hydraulic rod, oil cylinder, four support columns, forming columns, molds, discharge plates, and other parts. The hydraulic system uses a two-way cartridge valve, which has the characteristics of small size, small flow resistance, good sealing performance, compact structure, stable operation, and long service life. The key to metal forming briquettes is to have enough external force, and this hydraulic system can provide sufficient pressure. Compressing loose metal shavings into metal blocks with a density greater than 5.5 kg per cubic.

Raw Materials of metal chip briquetter

Aluminum swarf/chipsCast Iron swarf/chips, Copper swarf/chips, Steel swarf/chips, Stainless Steel swarf/chips, Brass swarf/chips, Titanium swarf/chips, Nickel swarf/chips, etc.

Advantages of metal chip briquetter

1. Hydraulic drive, stable operation, no vibration, safe and reliable;

2. Simple equipment foundation is needed;

3. It is controlled by PLC and can be operated manually or automatically.

4. Automatic feeding mechanism can be added according to user's requirements.

The benefit from making metal briquette

1. Briquetting increases the value of you metal chips and turns them into an ongoing income stream.

2. Briquetted material helps alleviate any potential cross contamination with other materials.

3. Briquettes are almost free of CNC coolant compared with loose metal chips and don’t leak coolant during transportation around the factory or en route to the recycler.

4. Briquetters eliminate the need for drying racks or centrifugal dryers, removing a costly handling process.

5. Transportation, handling and storage costs are lowered as a result of the volume reduction achieved through briquetting.

6. Machine briquette counters allow you to accurately monitor the amount of scrap being produced.

7. Briquetting your swarf allows a substantially more localised and tidy storage of your scrap, thus reducing your occupational health and safety risks.

Technical data of metal chip briquetter

Sr. No. Type name Model or Data
Main cylinder Acceleration cylinder Push block cylinder Feeding cylinder
1 Nominal pressure 5306KN 358KN 500KN 150KN
2 Inner diameter of cylinder Φ520mm φ135mm Φ200mm φ110mm
3 Piston diameter Φ300mm Φ70mm Φ80mm φ70mm
4 Stroke 430mm 440mm 240mm 390mm
5 System Max.pressure 25Mpa 25Mpa 16Mpa 16Mpa
6 Upper and lower beams Integral steel casting
7 Main pressure cylinder Integral steel casting
8 Motor 2 sets 30kw
9 Oil pump 2 sets 80MCY14-1B
10 Briquette density ≥2.0T/m3 (Aluminum powder)
11 Briquette size Φ200mm (Aluminum powder)
12 Work efficiency 3-5 pieces / min
12 Production 8-10 ton / 8 hours (Aluminum powder)
13 System control PLC program control, with adjustable text display; cartridge valve block
14 Cooling mode 12m2 water cooler, automatic temperature control
15 Operation mode Manual / Full automatic
16 Machine size 2600*3200*4000mm
17 Machine weight 15000kg
