3-5 pieces/Min 30kw Hydraulic Briquette Machine for cold pressing powdery

3-5 pieces/Min 30kw Hydraulic Briquette Machine for cold pressing powdery

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-6300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Exported ply wooden case or Full container
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Name: Hydraulic Briquette Machine Function: Press Aluminum Chips Into Briquette
Electric Motor: 45kw Briquette Density: 5.5-6 T/m3
Briquette Diameter: 200mm Production: 2-2.5 Ton/H
Operation: Manual / Full Automatic Machine Weight: 15Ton
High Light:

30kw Hydraulic Briquette Machine

,

5 Pieces/Min Hydraulic Briquette Machine

,

3 Pieces/Min hydraulic briquette press

Product Description

3-5 pieces/Min 30kw Hydraulic Briquette Machine for cold pressing powdery

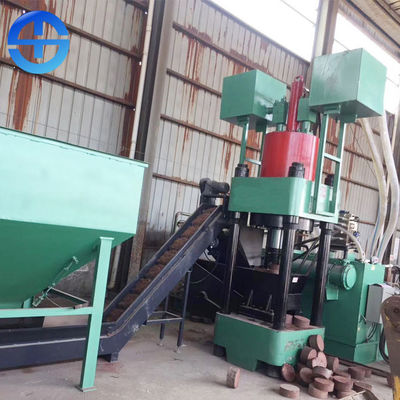

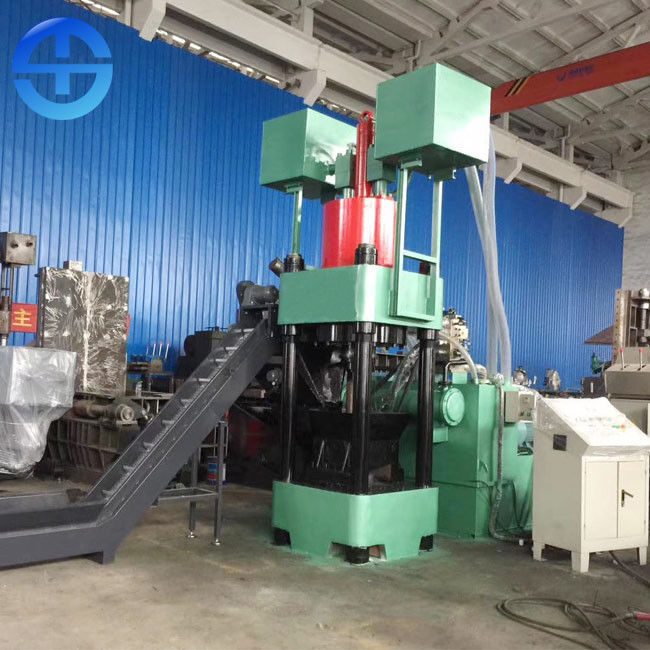

Introduction of hydraulic briquette machine


Hydraulic briquette machine (block press) is suitable for aluminum alloy profile factory, steel casting factory, aluminum casting factory and copper casting plant. The aluminum scrap, steel chip, iron chip and copper chip pressing block are returned to the furnace, which can replace scrap steel, pig iron, aluminum ingot and scrap copper as raw materials, which can reduce burning loss.
The equipment can directly cold press the powder and granular cast iron, steel, copper and aluminum chips into 3-6kg cylindrical cake block, so as to facilitate transportation, furnace operation and the whole process without heating, additives or other processes. The density of cast iron chips can reach 5-6t/m3 after pressing. The product can also be used in China or imported hydraulic and electrical components according to the requirements of customers, equipped with automatic feeding, weighing and other devices.



Technical data of briquette machine



No. Type name Model or Data
Main cylinder Acceleration cylinder Push block cylinder Feeding cylinder
1 Nominal pressure 5306KN 358KN 500KN 150KN
2 Inner diameter of cylinder Φ520mm φ135mm Φ200mm φ110mm
3 Piston diameter Φ300mm Φ70mm Φ80mm φ70mm
4 Stroke 430mm 440mm 240mm 390mm
5 System Max.pressure 25Mpa 25Mpa 16Mpa 16Mpa
6 Upper and lower beams Integral steel casting
7 Main pressure cylinder Integral steel casting
8 Motor 2 sets 45kw
9 Oil pump 2 sets 80MCY14-1B
10 Briquette density 5.5-6T/m3 (Aluminum powder)
11 Briquette diameter Φ200mm (Aluminum powder)
12 Work efficiency 3-5 pieces / min
12 Capacity 2-2.5 ton/H (Aluminum powder)
13 System control PLC program control, with adjustable text display; cartridge valve block
14 Cooling mode 12m2 water cooler, automatic temperature control
15 Operation mode Manual / Full automatic
16 Machine size 2600*3200*4000mm
17 Machine weight 15 Ton


Application of hydraulic briquette machine


Briquette machine is mainly used for cold pressing powdery, granular, small flake copper chips, iron chips, aluminum chips, alloy powder, stainless steel chip, iron ore powder, magnesium powder, copper powder and other metal chips Into a 3-5 kg cylindrical cake. It can also be used for pressing non-metal materials such as coke and slag powder.


Features of hydraulic briquette machine


1. This machine adopts hydraulic transmission, highly integrated valve block, super large flow diameter, so that the system has less pressure loss and good sealing performance.
2. The use of cartridge valve, electro-hydraulic proportional valve and unique oil circuit design make the hydraulic system in good condition. Even in the case of long-term heavy load, the system will not be unable to work.
3. The pre unloading device is designed to eliminate the hydraulic shock completely.
4. Advanced fast device to ensure your production.
5. The electrical part adopts imported PLC automatic control system, which has strong anti-interference ability and low failure rate.



Advantage of metal briquette


1. Logistics and warehousing
Briquettes can be stored and transported like solid waste. Because of their high bulk density, they can be easily stored and transported at low cost.
2. Waste of high quality materials
If the briquette processing site is directly pressed at the place where the debris is generated, the corrosion can be effectively prevented, and the exposed surface of the material can be greatly reduced. This avoids the formation of oxides. In the process of pressing block, the cooling lubricating oil can be extracted and reused at the same time, which saves the cost.
3. Smelting related advantages
In foundry, briquettes are valuable resources. Briquettes are easy to manage and add, which can reduce melting time and save energy cost.
4. Economic advantages of briquetting
The above factors make the pressed scrap metal more valuable than the original one. The source of metal chip briquette may be processing company without foundry, or casting machinery parts company. Chip processing companies can also sell the chips at a better price.
