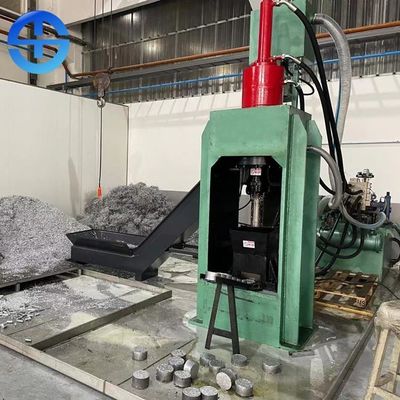

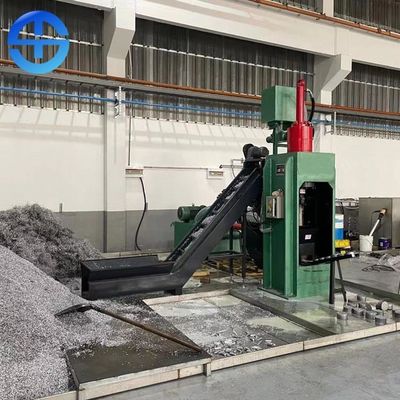

φ80mm Roller Hydraulic Briquetting Press Machine For Aluminum Alloy Profile
Product Details:
Place of Origin: | Zhengzhou, China |
Brand Name: | TMS |
Certification: | CE, ISO |
Model Number: | TMS-2000 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiated |
Packaging Details: | Exported ply wooden case or Full container |
Delivery Time: | 7-10 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 30 sets per month |
Detail Information |
|||
Name: | Hydraulic Briquette Machine | Usage: | Press Metal Powder Into Block |
---|---|---|---|
Motor Power: | 18.5kw | Briquette Diameter: | Φ80-90mm |
Input Per Shift: | 3-4 Ton | Work Efficiency: | 5 Block/min |
Operation: | PLC Control, Manual | Briquette Weight: | 2.5-3.5kg |
High Light: | 80mm Briquetting Press Machine,Aluminum Alloy Briquetting Press Machine,80mm roller press briquetting machine |
Product Description
3-4 Ton Per Shift Φ80mm Hydraulic Briquette Machine
Overview of hydraulic briquette machine
Hydraulic briquette machine is suitable for aluminum alloy profile factory, steel casting factory, aluminum casting factory and copper casting factory. It can replace scrap steel, pig iron, aluminum ingot and scrap copper as raw materials and reduce burning loss. The equipment can directly cold press powdery and granular iron chips, steel chips, copper chips and aluminum chips into 3-6kg cylindrical cakes, so as to facilitate transportation, putting into furnace and the whole process without heating, additives or other processes. The density of cast iron scraps can reach 5-6t / m3 after pressing. The product can also be according to customer requirements, using domestic or imported hydraulic, electrical components, with automatic feeding, weighing and other devices.
Advantages of Hydraulic briquette machine
1. Hydraulic drive, smooth operation, no vibration.
2. Simple infrastructure, installation without foot screws.
3. PLC control, users can choose manual or automatic operation.
4. Automatic feeding mechanism can be added according to user's requirements.
5. The whole steel casting is used in the frame to improve the reliability, stability and service life of the equipment.
6. The hydraulic station adopts integral professional valve block and Datong installed valve to eliminate oil leakage, reduce the oil temperature of the system and improve the stability of the system.
Component of hydraulic briquette machine
(1) Main machine: it is composed of frame, main hydraulic cylinder, pushing hydraulic cylinder, bottom plate hydraulic cylinder, matching mold frame and mold, pressure head, etc.
The frame part is composed of upper and lower beams and columns. The upper and lower crossbeams are all made of integral steel casting. The upper and lower crossbeams are connected with four columns by inner and outer nuts to bear the tension during operation.
The main hydraulic cylinder can eliminate steel casting and hidden danger. Ensure the service life and safety of the equipment. The supporting mold frame, mold and indenter are designed by professionals, and the superior processing ability is the guarantee for the excellent taste of the equipment. The punch of mould and briquetting machine are equipped with high strength wear-resistant steel which can be replaced quickly. The front end of model lindur punch is equipped with a pressing ring of wear-resistant punch which is convenient for disassembly and installation, so as to prolong its service life. Relevant parts are specially hardened or forged in necessary parts.
(2) Hydraulic station: it is composed of motor, hydraulic pump, pump protection device, professional control valve block and pipeline system for connecting briquetting machine. The design is reasonable and the quality is stable. Equipped with cooling system to avoid continuous operation of equipment due to oil temperature overheating.
(3) Console: it is composed of electrical system and PLC control system.
Technical parameters of briquetting press machine
Model | TMS-2500 |
Inner diameter of main cylinder | φ320mm |
Briquette diameter | Φ80-90mm |
Briquette Density | ≥5 T/m3 |
Work efficiency | 5 block/min |
Input per shift | 3-4 Ton |
Power | 18.5kw |
Remark | PLC control, Manual |
