300kg/H 400kg/H Input Cable Granulator Machine Recycling Copper Wire

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : One 20 feet container Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 20 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CO, CE Model Number: TMS-600

Detail Information

Name: Copper Wire Granulator Function: Recycling Copper Cables
Type: Dry Type Total Power: 49.86kw
Copper Purity: 99.9% Input Capacity: 300-400 Kg/h
Total Weight: 3.4 Ton Quality Warranty: 1 Year
High Light:

300kg/H Cable Granulator Machine

,

400kg/H Cable Granulator Machine

,

300kg/H wire granulator machine

Product Description

300kg/H 400kg/H Input 99.9% Purity Copper Wire Granulator


Brife Introduction of copper wire granulator



TMS-600 integrated copper wire granulator is a complete set of production line of copper rice machine developed by our company (mainly recycling automobile line, communication cable and miscellaneous line). The equipment adopts integrated structure, saving space and stable and reliable working performance. After the waste wires and cables are broken, they become plastic broken pieces and copper meters. The plastic crushing sheet and the copper rice separate the core skin under the dual action of air push and suction and linear excitation of the screen box to make it jump forward in the waveform of the screen surface, send the copper rice, plastic skin and the mixture of copper and plastic from different discharge ports respectively, and the dust is sent to the dust collector through the air duct.



Technical parameters of copper wire granulator

Model Dimension (mm) Total Power (kw) Capacity (kg/h) Weight (kg)
Mini-400 1500*1500*1900 11.92 100 750
TMS-400 2700*1900*2300 23.12 150-200 1200
TMS-600 3980*1950*2216 49.86 300-400 3400
TMS-800 9200*4100*2400 78.76 500-800 8000



Equipment advantages of copper wire granulator



1. The control box controls and coordinates the operation of each system;

2. Turn off the fan to regulate the bottom air;

3. Stable operation;

4. The recovery rate (effect) of copper rice can reach 98%;

5. Floor area: about 8.4 square meters, and the height shall not be less than 2.6 meters;

6. Conventional simple packaging, which can be handled by forklift;

7. 1-20mm waste cables can be processed, and the diameter of a single conductor is 0.2-0.3mm.



Precautions during operation



The correct use of copper wire granulator should select the model according to different material properties, which can not only improve the crushing efficiency, but also prolong the service life of the machine. The blade is processed by wire cutting, and the blade is interchangeable.

For different lines, we have different requirements for the blade of the machine.

1. Wool wire and multi strand wire: when processing wool wire and multi strand wire, the fixed knife and moving knife of the copper wire granulator shall be sharp, and the broken wire shall be cut off by the blade, so that the copper rice is clean and high purity.

2.Single strand and single core wire: when handling single strand and single core wires, the blade edge of the moving knife is required to be blunt and the fixed knife is required to be sharp. Under this requirement, the spacing between the moving knife and the fixed knife is that the single strand cable just blocks the cable and does not contact the wire core. At this time, the cable is broken by inertia, which can effectively avoid copper wrapping.

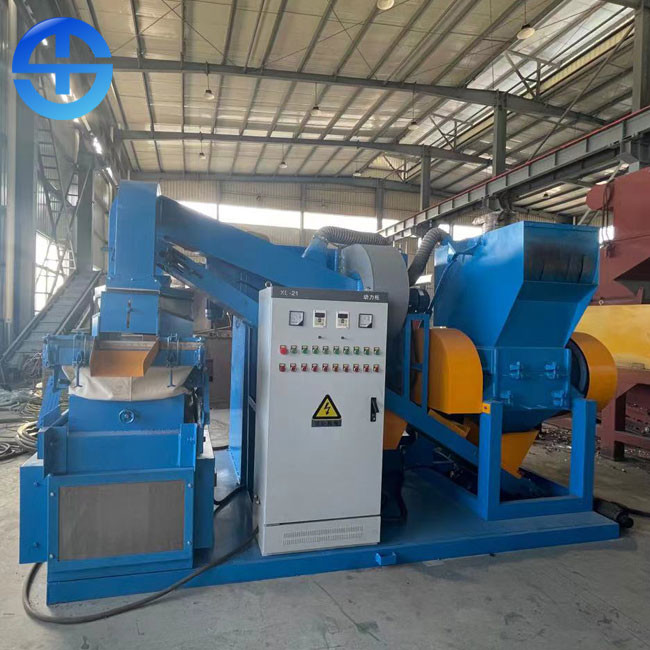

300kg/H 400kg/H Input Cable Granulator Machine Recycling Copper Wire 0

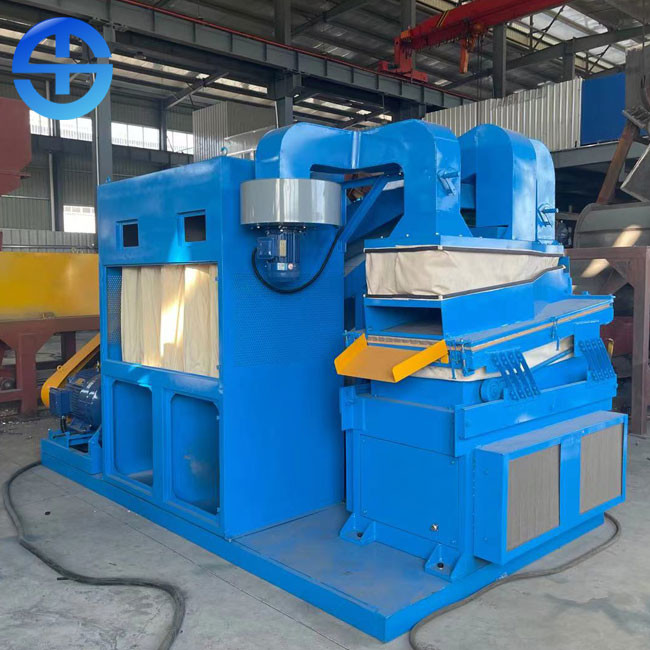

300kg/H 400kg/H Input Cable Granulator Machine Recycling Copper Wire 1
