Dry Type Scrap Copper Wire Granulator 99.9% Separating

Dry Type Scrap Copper Wire Granulator 99.9% Separating

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CO, CE
Model Number: TMS-600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: One 20 feet container
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Scrap Copper Wire Granulator Usage: Recycling Scrap Cables
Machine Type: Dry Motors: 49.86kw
Purity: 99.9% Input: 300-400 Kg/h
Net Weight: 3.4 Ton Quality Warranty: 12 Month
High Light:

Dry Type Scrap Copper Wire Granulator


99.9% Scrap Copper Wire Granulator


Dry Type wire granulator machine

Product Description

Dry Type 99.9% Separating Scrap Copper Wire Granulator

Introduction of scrap copper wire granulator


The full-automatic scrap copper wire granulator is mainly used for the recovery and treatment of waste wires such as waste miscellaneous wires, capillary copper wires, household appliance wires, hard square wires and soft wires for lighting, so as to separate the metal and plastic in the wires. Full automatic copper rice machine, also known as 1000 large copper rice machine, can not only handle a large number of wires and cables, but also configure the production line according to different requirements.


Technical parameters of scrap copper wire granulator
Model Dimension (mm) Total Power (kw) Capacity (kg/h) Weight (kg)
Mini-400 1500*1500*1900 11.92 100 750
TMS-400 2700*1900*2300 23.12 150-200 1200
TMS-600 3980*1950*2216 49.86 300-400 3400
TMS-800 9200*4100*2400 78.76 500-800 8000


Features of scrap copper wire granulator


1. The dust removal device of our company's dry copper rice machine is divided into three steps to solve the problem of dust pollution emission, and also absorb the dust and other impurities from the waste wire.

2. The dry copper rice machine adopts the physical crushing and sorting method to separate metal and plastic.

3. With the structure of multi machine combination, equipped with an automatic conveying device, it can automatically feed and crush, and complete the separate recycling of metal and plastic.

4. The copper broken by the dry copper rice machine has the advantages of no oxidation, no blackening, unchanged copper quality and recycling of waste plastic skin. Copper and plastic can be sold separately, which can produce great economic benefits


Application scope of scrap copper wire granulator


The scrap copper wire granulator can process various specifications of waste wires, copper core wires, aluminum core wires, copper single wires, multi wire sheathed wires, earphone wires, data wires, computer wires, ground buried wires, motor wires, flame retardant wires, waterproof wires, lighting wires, factory waste wire heads, plug-in wires, electrical plug wires, car dismantling wires, circuit wires, etc., but the diameter of these wires shall not be greater than 20mm.


Working principle of scrap copper wire granulator


Using the different density of metal copper and non-metallic plastic materials, under the action of wind, make amplitude movement on the inclined screen surface, so that the metal with high density moves out close to the copper outlet above the screen face, and the non-metal with low density flows out to the lower outlet at the other end, so as to achieve the purpose of copper plastic separation. In the separation process, the dust generated by the crushed materials is collected by the bag dust removal device to play the role of dust control. The unclean copper plastic mixture further enters the electrostatic separation equipment through the conveyor to further separate the copper from the plastic wire skin and play the role of complete separation and recycling.

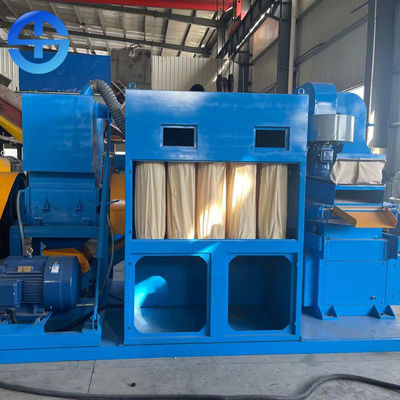

Dry Type Scrap Copper Wire Granulator 99.9% Separating 0

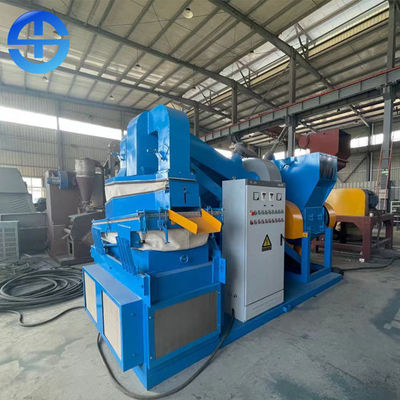

Dry Type Scrap Copper Wire Granulator 99.9% Separating 1
