300kg/H 400kg/H Output Copper Cable Granulator Machine

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : One 20 feet container Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 20 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CO, CE Model Number: TMS-600

Detail Information

Name: Copper Cable Granulator Function: Recycling Copper
Application: Scrap Cables Type: Dry Type
Total Power: 49.86kw Copper Purity: 99%
Input: 300-400 Kg/h Total Weight: 3400kg
High Light:

300kg/H Copper Cable Granulator

,

400kg/H Copper Cable Granulator

,

400kg/H mini copper granulator

Product Description

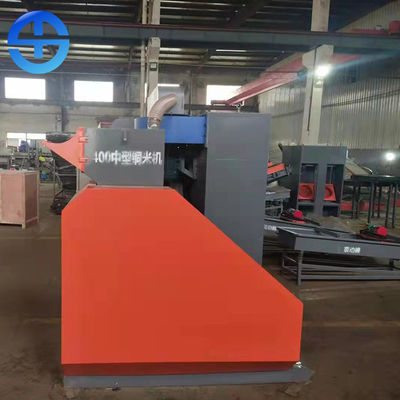

300kg/H 400kg/H Output Copper Cable Granulator Machine


Brife Introduction of copper cable granulator



TMS-600 integrated copper cable granulator is a complete set of production line of copper rice machine developed by our company (mainly recycling automobile line, communication cable and miscellaneous line). The equipment adopts integrated structure, saving space and stable and reliable working performance. After the waste wires and cables are broken, they become plastic broken pieces and copper meters. The plastic crushing sheet and the copper rice separate the core skin under the dual action of air push and suction and linear excitation of the screen box to make it jump forward in the waveform of the screen surface, send the copper rice, plastic skin and the mixture of copper and plastic from different discharge ports respectively, and the dust is sent to the dust collector through the air duct.



Technical parameters of copper cable granulator

Model Dimension (mm) Total Power (kw) Capacity (kg/h) Weight (kg)
Mini-400 1500*1500*1900 11.92 100 750
TMS-400 2700*1900*2300 23.12 150-200 1200
TMS-600 3980*1950*2216 49.86 300-400 3400
TMS-800 9200*4100*2400 78.76 500-800 8000



Advantages of copper cable granulator



Copper cable granulator is also known as waste wire recycling equipment. Treating waste cables is a relatively advanced technology. It is an environment-friendly mechanical equipment for crushing waste wires, circuit wires, miscellaneous wires, communication wires, data wires and earphone wires and sorting copper and plastics.

1. It is also called waste wire recycling equipment. The treatment of waste cables is a relatively advanced technology. It is an environment-friendly mechanical equipment for crushing waste wires, circuit wires, miscellaneous wires, communication wires, data wires and earphone wires and sorting copper and plastics.

2. Strong adaptability: it can deal with waste copper wires of the same specification and mixed waste cables of different specifications, which can not be achieved by other types of copper rice machines.

3. High purity of products: the purity of copper rice produced by this machine is high, which can reach more than 99.5%.

4. Good environmental benefits: since the unit is equipped with a relatively advanced dust collection system, it will not pollute the environment.



Technological process of copper cable granulator



If the site or funds are more abundant, the waste wires and cables can be broken into about 3cm long by shredding equipment, then cut and crushed by secondary crusher, and then separated by specific gravity air flow to obtain high purity copper. If the copper contains unsorted broken plastic, it can also be sorted by electrostatic separator to ensure high reuse rate of copper. The equipment has the advantages of new and reasonable structure, large production capacity and low power consumption. High sorting rate, one-time feeding and multi machine supporting facilities. The production line is controlled by PLC. The machine solves the problems of air pollution and copper wire blackening caused by burning copper. The copper quality remains unchanged, the recovery rate can be improved, the plastic can be reused, and the problem of environmental pollution can be avoided.



300kg/H 400kg/H Output Copper Cable Granulator Machine 0
