Small Mini 400 Copper Wire Granulator Machine For 0.1-20mm Wire

Minimum Order Quantity : 1 set Price : Negotiated
Packaging Details : Standard exported ply wooden case Delivery Time : 15 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 20 sets per month
Place of Origin: China Brand Name: TMS
Certification: CE. ISO, CO Model Number: Mini-400

Detail Information

Name: Copper Wire Granulator Type: Dry
Function: Recycling Scrap Wires Separating Rate: 99%
Machine Size: 1500*1500*1900mm Total Power: 11.92kw
Input Capacity: 80-100kg/h Machine Weight: 750kg
High Light:

Mini 400 Copper Wire Granulator


20mm Copper Wire Granulator


20mm wire granulator machine

Product Description

Small Mini-400 Copper Wire Granulator For 0.1-20mm Wire


Brife Introduction of copper wire granulator


Automatic integrated copper wire granulator is a professional production line for dry separation of waste wires and cables. For example, old automobile circuit lines, communication cables, and wire stripping machines are not suitable for processing (all kinds of civil wires) waste miscellaneous wires, wool thin wires, etc. The characteristics of this machine are that the large and small lines can be broken and separated at the same time without classification. It has new structure, large production capacity, low power consumption, high sorting rate, one feeding and multi machine cooperation. The whole line is controlled by PLC, which is at the leading level in China. The successful development of the machine not only solves the problems in the method of burning copper, but also improves the quality of copper recovery, recycles plastics and solves environmental pollution.


Power of copper wire granulator


serial number Description Quantity Power (kw)
1 crusher 1 set 7.5
2 Blower fan 1 set 2.2
3 dust collector blower 1 set 1.5
4 Vibrator motor 1 sets 0.36
5 Small vibrator 2 set 0.18


Technical parameters of copper wire granulator


Model Dimension (mm) Total Power (kw) Capacity (kg/h) Weight (kg)
Mini-400 1500*1500*1900 11.92 100 750
TMS-400 2700*1900*2300 23.12 150-200 1200
TMS-600A 4000*1950*2300 48.36 300-400 3400
TMS-600B 4300*1950*2400 52.36 300-400 3400
TMS-800 9200*4100*2400 78.76 500-800 8000
TMS-1200 16000*10000*3000 129.36 1000-1500 12000


Features of copper wire granulator


After crushing and processing of waste wires and cables, automatic mechanical separation can completely separate copper and plastics, and achieve the purpose of comprehensive utilization, with high economic benefits. In addition, the equipment is an integral combination structure, easy to install and debug, and transport (customers can be purchased after the power supply can be produced), stable performance.

1. Compact structure, beautiful appearance, reasonable layout and convenient installation.

2. Fully automatic intelligent control makes the equipment feed uniformly and operate intelligently, which makes the operation more convenient, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.

3. The crusher is roll-to-roll, with low speed, high torque, large output, low noise and simple operation.

4. Platform combination is adopted for crusher, sorting equipment and dust collecting equipment, which makes the equipment easy to move and transport, and increases the flexibility of equipment.

5. The alternating cutter shaft is used in the rotor of the crusher, which makes the crusher more efficient, less noisy and more stable in operation.

6. The sorting rate of air separation equipment is over 99%.

7. The recycling system makes the semi-finished products comminuted twice, which ensures the complete separation of metal and non-metal.

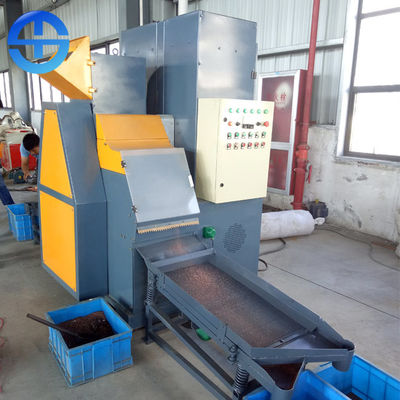

Small Mini 400 Copper Wire Granulator Machine For 0.1-20mm Wire 0

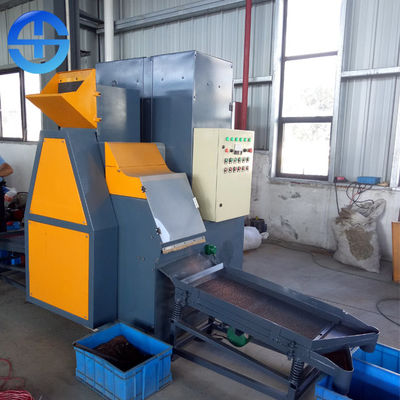

Small Mini 400 Copper Wire Granulator Machine For 0.1-20mm Wire 1
