700kg/h 800kg/H Scrap Dual Shaft Shredder 18.5kw Power

700kg/h 800kg/H Scrap Dual Shaft Shredder 18.5kw Power

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CO, CE
Model Number: TMS-400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Ply wooden case with 4200*2300*2700 mm or Full container
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Dual Shaft Shredder Function: Shred Metals
Size: 1650*900*1600 Power: 18.5kw
Capacity: 700-800kg/h Speed: 50 R/min
Weight: 700kg Voltage: 380 V Or Customized
High Light:

800kg/H Scrap Dual Shaft Shredder


700kg/h Scrap Dual Shaft Shredder


700kg/h scrap metal shredder

Product Description

18.5kw Power 700kg/H 800kg/H Scrap Dual Shaft Shredder

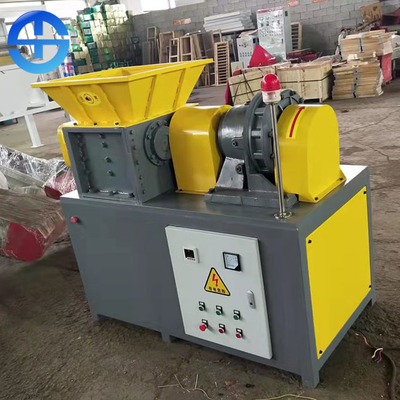

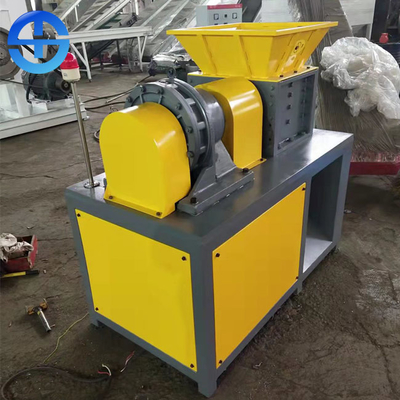

Introduction of dual shaft shredder


Dual shaft shredder is a kind of large and small-sized double shaft shredder, which is made of twin shaft cutter roller to shear or bite and tear materials. The equipment is mainly composed of knife roller, screen, fixed knife, bearing box, box support, feeding system, power system and electrical control system. Because of its low speed and high torque, double shaft shredder is suitable for tearing hard or bulky materials. Such as wood, tires, waste household appliances, metal and so on.


Specification of dual shaft shredder


Model TMS-400
Power 18.5kw
Voltage 380v/50hz
Capacity 700-800kg/h
Speed 50 r/min
Size 1650*900*1600 mm
Weight 700 kg


Features of dual shaft shredder


1. It is suitable for tearing materials with strong winding, and a small amount of light and thin metal objects are allowed in the materials.

2. Low tool use and maintenance costs.

3. At the same power, the price is relatively low compared with double shaft shredder, three shaft shredder and four shaft shredder.

4. Convenient tool replacement.

5. The material size can be adjusted according to the size of the screen aperture.

6. Shredder materials can be fed using conveyor, loader, grapple or forklift.

7. The design of the main engine is exquisite, and the separation design is adopted for the fragments to make the output higher.

8. The processed fragments are uniform and wear-and-tear is small. Various sieves can be replaced at the same time to meet different needs.

9. Tools of different materials are equipped at the same time, so that they can be flexibly adjusted for different materials. They can be grinded after bluntness, used many times, and have long service life.


Working process of dual shaft shredder


The main working parts of double shaft shredder are a pair of relatively rotating rollers, which are equipped with spirally arranged gear teeth. When the material enters the machine, it is torn and sheared by the teeth of the high hardness wear-resistant material which rotates staggeredly and is splitted, broken and crushed into smaller than the set size, and then forcibly excluded from the machine. Roller driven by motor through reducer has super-large torque, encounter difficult debris, will automatically reverse under the action of PLC automatic control system, and many times positive and negative, until the material is broken and discharged.


Application of dual shaft shredder


The items that can be torn up by metal shredding machine are

(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.

(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.

(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.

(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.

(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television.
