50R/Min 700kg/H 800kg/H Scrap Dual Shaft Shredder For Metal

50R/Min 700kg/H 800kg/H Scrap Dual Shaft Shredder For Metal

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CO, CE
Model Number: TMS-400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Ply wooden case with 4200*2300*2700 mm or Full container
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Metal Shredder Function: Shred Scraps
Dimension: 1650*900*1600 Motor: 18.5kw
Capacity: 700-800kg/h Rotate Speed: 50 R/min
Weight: 700kg Voltage: 380V/50HZ
High Light:

50R/Min Dual Shaft Shredder


700kg/H Dual Shaft Shredder


800kg/H Dual Shaft Shredder

Product Description

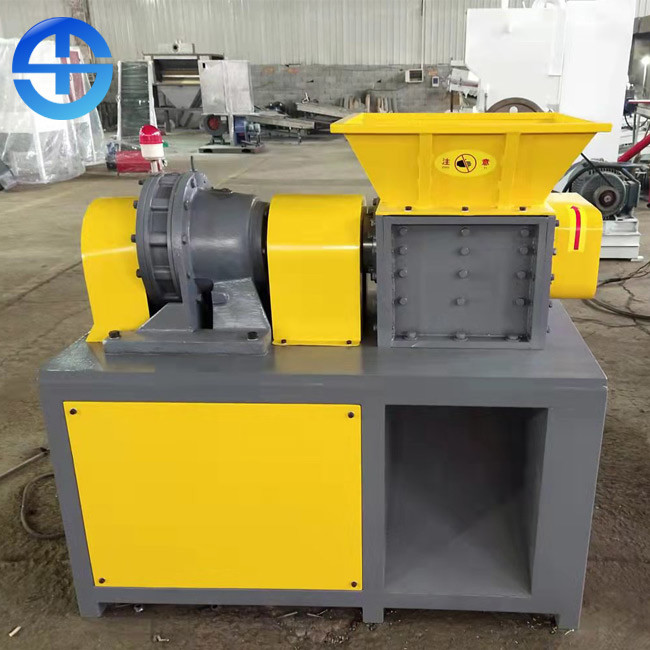

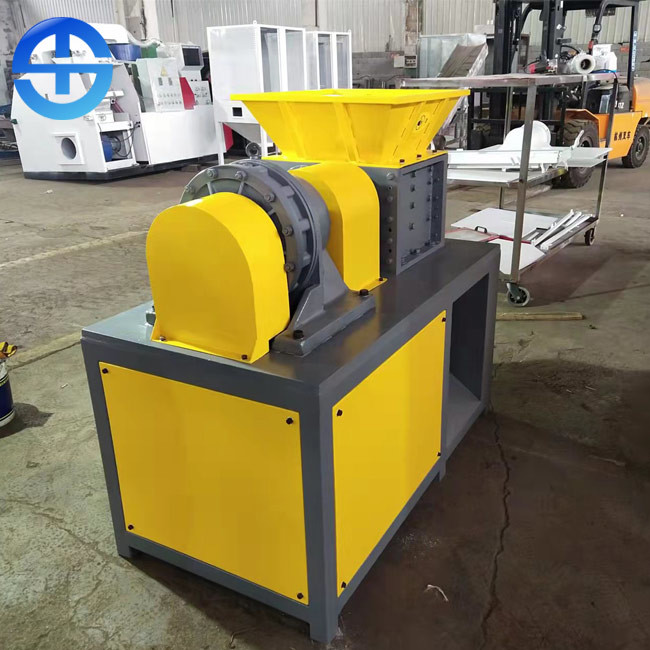

50 R/Min 700kg/H 800kg/H Scrap Dual Shaft Metal Shredder


Introduction of metal shredder


Dual shaft shredder can meet the requirements of waste recycling in various industries, and is suitable for shredding thicker and refractory materials, such as electronic waste, plastics, metals, wood, waste rubber, packaging barrels, pallets, etc. There are many kinds of recyclable materials. The torn materials can be directly recycled or further refined according to demand. It is suitable for industrial waste recycling, medical treatment recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, paper making and other industries. This series of double shaft crusher has the characteristics of low speed, high torque and low noise. It adopts PLC control system and can be automatically controlled. It has the functions of starting, stopping, reversing and overloading automatic reversing control.


Specification of metal shredder


Model TMS-400
Motor 18.5kw
Voltage 380v/50hz
Capacity 700-800kg/h
Rotate speed 50 r/min
Dimension 1650*900*1600 mm
Weight 700 kg


Features of metal shredder


(1). The machine is reasonably designed and welded with high-quality steel.

(2). Fastening with high strength screw, solid structure, durable.

(3). The design of the main engine is exquisite, and the separation design is adopted for the fragments to make the output higher.

(4). The processed fragments are uniform and wear-and-tear is small. Various sieves can be replaced at the same time to meet different needs.

(5). Tools of different materials are equipped at the same time, so that they can be flexibly adjusted for different materials. They can be grinded after bluntness, used many times, and have long service life.

(6). The machine has the advantages of advanced structure, beautiful appearance, simple operation, stable operation, low investment and high efficiency.

(7). Equipped with large belt pulley to increase the inertia of crusher, it can save energy and strong crushing.


Instructions for use and maintenance of metal shredder


1. Before commissioning, strictly check whether the installation of each part of the machine meets the requirements and whether the screws and bolts are loose. At the same time, check the rotation direction. It is strictly prohibited to crush flammable and explosive articles to avoid accidents.

2. Uniform blanking shall be maintained during production to ensure crushing quality and normal production. At the same time, motor overload is strictly prohibited to ensure normal operation of the machine.

3. In addition to frequently checking the fastening and looseness of various parts, attention should also be paid to checking the wear of vulnerable parts. If the wear is serious, it should be replaced in time to avoid damaging the main parts. Fire prevention measures shall be taken.

4. Due to the high speed, in addition to the correct and firm installation, good lubrication shall be maintained to maintain the normal operation of the machine. Generally, it is normal that the bearing temperature does not exceed 70 ℃. Add butter and molybdenum disulfide to the main engine bearing once a week, and the effect of high-speed butter is better.


Application of metal shredder


The items that can be torn up by metal shredding machine are

(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.

(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.

(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.

(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.

(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television.
