Q235 Steel 15 Ton/H Scrap Metal Shredder Machine Alloy Blades

Minimum Order Quantity : 1 set Price : Negotiated
Packaging Details : Full container for dual shaft metal shredder Delivery Time : 15 work days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: TMS
Certification: ISO, CO, CE Model Number: SSJ-1600

Detail Information

Name: Metal Shredder Function: Shredding Metals
Whole Dimension: 5000*2400*2100mm Motor Power: 2*75kw
Input: 15 Ton/h Blades: 20 Pieces
Blade Materials: Alloy Steel Voltage: 380V/50HZ Or Customised
High Light:

15 Ton/H Scrap Metal Shredder Machine

,

Q235 Scrap Metal Shredder Machine

,

15 Ton/H industrial metal shredder

Product Description

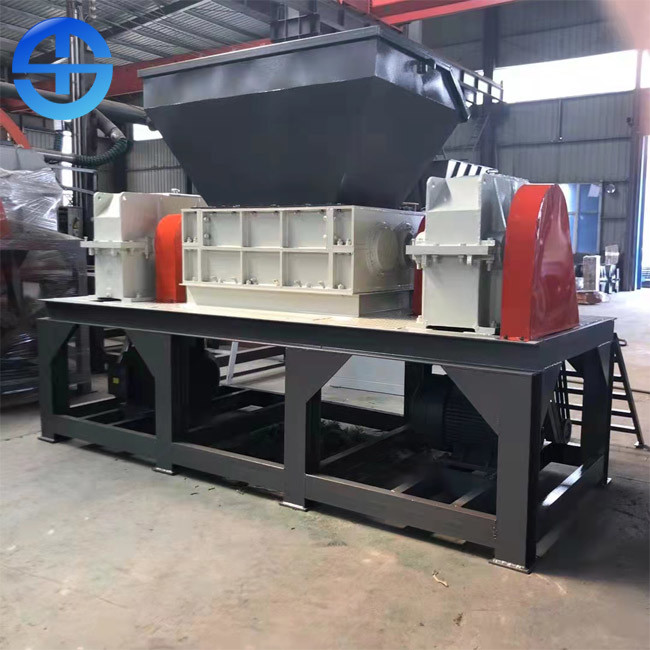

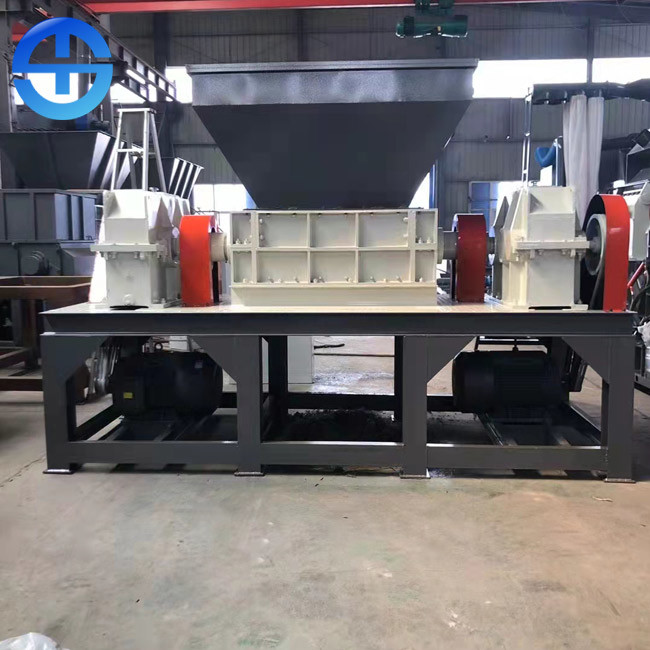

Q235 Steel 15 Ton/H Alloy Blades Scrap Metal Shredder

Introduction of scrap metal shredder

Scrap metal shredder, also known as shear shredder, reduces the size of materials through shearing, tearing and extrusion. This shredder is widely used in waste plastics, waste rubber, wood, crop straw and other large volume wastes. It introduces more than 30 years of experience in manufacturing such equipment in Europe and America into China, and improves and develops it according to the actual situation in China, A series of double shaft shredders with mature technology and advanced design are launched to provide reliable equipment for crushing and volume reduction treatment in the early stage of waste recycling in China.

Technical data of scrap metal shredder




Main body

ModelSSJ-1600
BodyIt adopts split type for easy disassembly and assembly, welded by Q235 steel plate.
Dimension5000*2400*2100mm
Power2*75kw
Reducer2* Weighted model 1000
Reducer speed ratio48.57
Frame140*140 square tube welded





Blade

Quantity20 pieces
Cutter head materialAlloy
Cutter head hardness range52-55
Cutter head thickness80mm
Blade typeThe outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal
No. of cutter head teethCustomized according to customer requirements
ShaftSpindle formHexagonal shaft
Shaft diameter230mm
SpacerQuantity20 pieces
Capacity15 ton/h


Features of scrap metal shredder

1. The design of the machine is reasonable, and the body is welded with high-quality steel.
2. It is fastened with high-strength screws, with solid structure and durability.
3. The design of the main machine is exquisite, and the broken material adopts the separation design to make its output higher.
4. The processed and broken pieces are uniform and the loss is small. A variety of screens can be replaced at the same time to meet different needs.
5. At the same time, it is equipped with tools of different materials, so that the tools can be retracted and adjusted for different materials, can be grinded after blunt, can be used for many times, and has a long service life.
6. The machine has the advantages of advanced structure, beautiful appearance, simple operation, stable operation, low investment and high efficiency.
7. Equipped with an enlarged pulley to increase the inertia of the crusher, which can save energy and strong crushing.

Working process of scrap metal shredder

The main working parts of scrap metal shredder are a pair of relatively rotating rollers, which are equipped with spirally arranged gear teeth. When the material enters the machine, it is torn and sheared by the teeth of the high hardness wear-resistant material which rotates staggeredly and is splitted, broken and crushed into smaller than the set size, and then forcibly excluded from the machine. Roller driven by motor through reducer has super-large torque, encounter difficult debris, will automatically reverse under the action of PLC automatic control system, and many times positive and negative, until the material is broken and discharged.

Q235 Steel 15 Ton/H Scrap Metal Shredder Machine Alloy Blades 0
