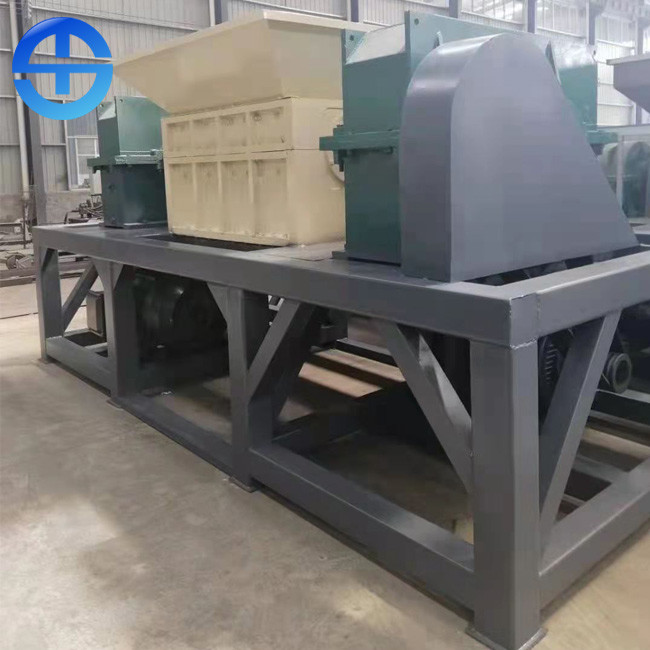

Two 75kw Motors Alloy Steel Blades Scrap Metal Shredder Dual Shaft

Minimum Order Quantity : 1 set Price : Negotiated
Packaging Details : Full container for dual shaft metal shredder Delivery Time : 15 work days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: TMS
Certification: ISO, CO, CE Model Number: SSJ-1600

Detail Information

Name: Dual Shaft Metal Shredder Function: Shredding
Whole Size: 5000*2400*2100mm Power Supply: 2*75kw
Productivity: 15 Ton/h Blades: 20 Pieces
Blades Materials: Alloy Steel Voltage: 380V/50HZ Or Customised
High Light:

Steel Blades Scrap Metal Shredder

,

75kw Scrap Metal Shredder

,

75kw metal shredder machine

Product Description

Two 75kw Motors Alloy Steel Blades Dual Shaft Metal Shredder

Introduction of dual shaft metal shredder

Dual shaft metal shredder, also known as shear shredder, reduces the size of materials through shearing, tearing and extrusion. This shredder is widely used in waste plastics, waste rubber, wood, crop straw and other large volume wastes. It introduces more than 30 years of experience in manufacturing such equipment in Europe and America into China, and improves and develops it according to the actual situation in China, A series of double shaft shredders with mature technology and advanced design are launched to provide reliable equipment for crushing and volume reduction treatment in the early stage of waste recycling in China.

Technical data of dual shaft metal shredder




Main body

ModelSSJ-1600
BodyIt adopts split type for easy disassembly and assembly, welded by Q235 steel plate.
Dimension5000*2400*2100mm
Power2*75kw
Reducer2* Weighted model 1000
Reducer speed ratio48.57
Frame140*140 square tube welded





Blade

Quantity20 pieces
Cutter head materialAlloy
Cutter head hardness range52-55
Cutter head thickness80mm
Blade typeThe outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal
No. of cutter head teethCustomized according to customer requirements
ShaftSpindle formHexagonal shaft
Shaft diameter230mm
SpacerQuantity20 pieces
Capacity15 ton/h


Advantage of dual shaft metal shredder

1. This machine can shred large block, basket, pipe, board, wood, tire and large roll film which are difficult to crush by single shredder.
2. Extra thick sheet metal precision processing composite structure frame, large angle hexagonal column strong rotation axis, large caliber and strong input hopper, so you can safely put into large raw materials;
3. In the thickness, shape, arrangement and other aspects of the design and processing of a unique rotary knife, strong shearing force, sharp edge, can be highly efficient crushing;
4. PLC control, when the handling material is too large, it has the function of positive and negative operation and shutdown to protect the body, and the safety measures are absolutely safe.
5. Low-speed operation, low noise, less dust;
6. The blade is made of special alloy steel and is durable.
Working process of scrap metal shredder

The main working parts of the crusher are a pair of relatively rotating rollers, which are equipped with spirally arranged gear teeth. When the material enters the machine, it is torn and sheared by the teeth of the high hardness wear-resistant material which rotates staggeredly and is splitted, broken and crushed into smaller than the set size, and then forcibly excluded from the machine. Roller driven by motor through reducer has super-large torque, encounter difficult debris, will automatically reverse under the action of PLC automatic control system, and many times positive and negative, until the material is broken and discharged.

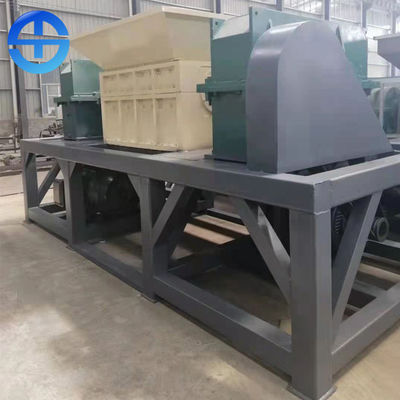

Two 75kw Motors Alloy Steel Blades Scrap Metal Shredder Dual Shaft 0

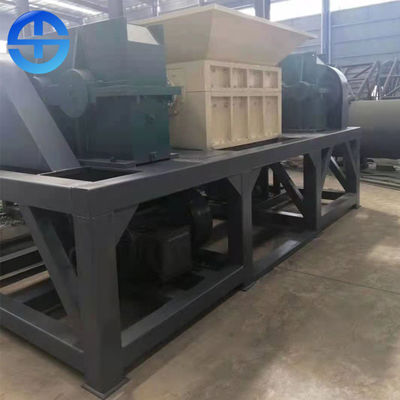

Two 75kw Motors Alloy Steel Blades Scrap Metal Shredder Dual Shaft 1
