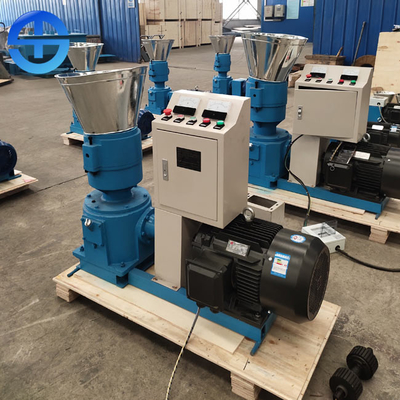

200-300kg/H Biomass Pellet Machine Feed Processing Machinery

200-300kg/H Biomass Pellet Machine Feed Processing Machinery

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Exported ply wooden case
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets per month
Get Best Price Contact Now

Detail Information

Name: Biomass Pellet Machine Function: Making Animal Feed
Capacity: 200-300kg/h Motor Power: 7.5kw
Moisture: 10-18% Other Name: Feed Processing Machinery
Weight: 200kg Voltage: 380V/50HZ
High Light:

300kg/H Biomass Pellet Machine


200kg/H Biomass Pellet Machine


300kg/H Feed Processing Machinery

Product Description

200-300kg/H Biomass Pellet Machine Feed Processing Machinery


Description of Biomass Pellet Machine


The working principle of this wood pellet machine is to use the friction and pressure between the drum and the installed mold, the flat die wood pellet mill is also called a flat die granulator, and it is also called a machine to make pellets homemade. The flat die granulation equipment adopts a vertical design, and the use of gravity is the main driving force for the material to pass through the machine. A flat die feed has a horizontal die with a series of rollers on it. As the material enters from the top feed port, it is compressed between the rollers and the die.


Technical parameters of Biomass Pellet Machine


Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%


Features of feed pellet machine


1). Powder feed and grass powder can be pelletized without adding or a little liquid, and part of moisture will be lost during granulation process, so the moisture content of pellet feed is lower than that of material before granulation, which is more convenient for storage.

2). This cattle pellet machine uses shaft drive to make pellets without belt. Using high technology, it has a lot of foresight than the original belt drive. This machine does not need to add any water to make pellets, which belongs to the type of dry in and dry out. At the time of manufacturing, we use it for those small-scale farms. At the same time, the granules can be kept for a long time, and it is not a problem for more than half a year.

4.Dry material processing can produce feed pellets with high hardness, smooth surface and internal ripening, which can improve the digestion and absorption of nutrients.

5. It is easy to adjust the length of the pellets. It has the advantages of simple structure, small floor area and low noise. It can be operated by 220 V single-phase power. It is suitable for small-scale farmers who lack three-phase electricity.


Application of feed pellet mill


Our Machine to Make Wood Pellets with wide Applications and High Output Efficiency. The Applications Raw Materials as follows:

(1). All kinds of wood waste or agro-forestry waste can be used,such as:Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded edible fungus bags.Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee husk,cotton shell,peanut shell,rice shell,coconut shell.

(2).Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips and many other organic waste resources.

Working process of feed pellet mill


The motor drives the spindle through the hypoid bevel gear, and the spindle drives the press roll to rotate. When processing raw materials, the raw materials are sent to the feeding chamber of the flat die machine, and the materials fall on the flat die. The main shaft drives the press roller to rotate. The roller continuously rolls through the material layer and extrudes the material into the die hole. The material experiences the process of forming and maintaining shape in the die hole. After a certain period of time, the material is extruded in a cylindrical state. The rotating cutter cuts off the material and forms particles, which are sent out by the material throwing plate.
