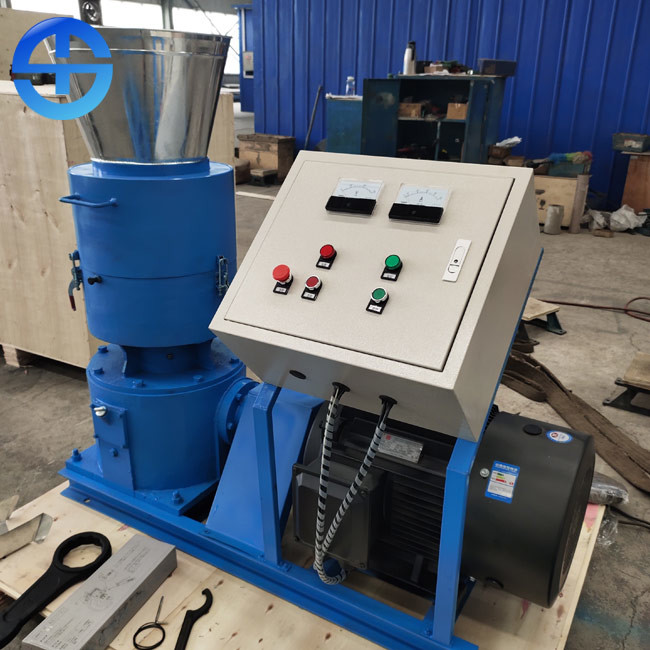

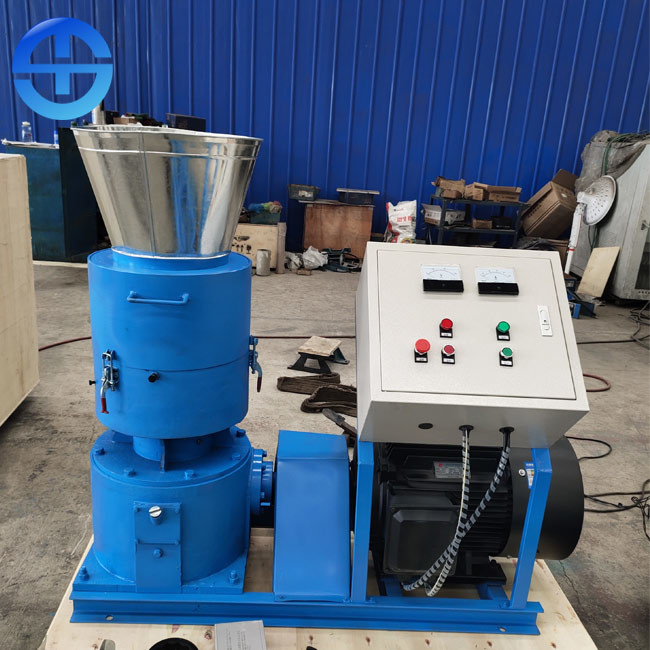

Animal Feed Biomass Pellet Machine 3mm 5mm 800kg/H 1200kg/H

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Exported ply wooden case Delivery Time : 7-10 working days
Payment Terms : L/C, T/T, Western Union Supply Ability : 100 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: 400

Detail Information

Name: Feed Pellet Machine Function: Making Animal Feed
Producitivity: 800-1200kg/h Power: 30kw
Moisture: 10-18% Dimension: 1560*640*1400mm
Weight: 660kg Voltage: 380V/50HZ
High Light:

Animal Biomass Pellet Machine

,

3mm Biomass Pellet Machine

,

Biomass Pellet Machine 800kg/h

Product Description

800kg/h 1200kg/H 3mm 5mm Pellet Animal Feed Pellet Machine



Description of feed pellet machine



Feed pellet machine is a kind of feed processing machinery which uses corn, soybean meal, straw, grass and rice husk as raw materials and directly pressed into pellets after crushing raw materials. It is mainly used in grain and feed processing plants, animal farms, poultry farms, individual farmers and small and medium-sized farms, farmers or large, medium and small-sized feed processing plants. According to different raw materials and uses, feed pellet processing machinery is also known as straw feed pellet machine, small feed pellet machine, breeding feed pellet machine, household pellet processing equipment, pig feed pellet machine and so on. Feed pellet processing machinery is recognized by more and more farmers.



Technical parameters of feed pellet machine



Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%



Features of feed pellet machine



1). Powder feed and grass powder can be pelletized without adding or a little liquid, and part of moisture will be lost during granulation process, so the moisture content of pellet feed is lower than that of material before granulation, which is more convenient for storage.

2). This cattle pellet machine uses shaft drive to make pellets without belt. Using high technology, it has a lot of foresight than the original belt drive. This machine does not need to add any water to make pellets, which belongs to the type of dry in and dry out. At the time of manufacturing, we use it for those small-scale farms. At the same time, the granules can be kept for a long time, and it is not a problem for more than half a year.

4.Dry material processing can produce feed pellets with high hardness, smooth surface and internal ripening, which can improve the digestion and absorption of nutrients.

5. It is easy to adjust the length of the pellets. It has the advantages of simple structure, small floor area and low noise. It can be operated by 220 V single-phase power. It is suitable for small-scale farmers who lack three-phase electricity.



Option of grinding plate of feed pellet machine



According to our customers' accumulated experience for many years, the types of animals cultured are different, and the grinding holes of grass pellet machine plates are also different. We provide a variety of sizes for your choice. (the length of pellet material can be adjusted freely by customers)

1. 2.0mm grinding plate is breeding: parrot, thrush, sparrow, and other pet birds. (to be customized)

2. 2.5mm grinding plate is used for breeding: young rabbits, chickens, ducks, geese, pigeons, birds, peacocks, fish and other small animals. (to be customized)

3. 3-4mm grinding plate is for breeding: rabbit, chicken, duck, goose, pigeon, bird, peacock, aquatic fish, etc

4. 5-6 mm grinding plate is for breeding: pig, cattle, sheep, dog, pig, horse.



Animal Feed Biomass Pellet Machine 3mm 5mm 800kg/H 1200kg/H 0
