50HZ 7.5kw Biomass Feed Pellet Machine 10 - 18% Moisture 200kg / H
Product Details:
| Place of Origin: | Zhengzhou, China |
| Brand Name: | TMS |
| Certification: | CE, ISO |
| Model Number: | 200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Exported ply wooden case |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Name: | Feed Pellet Machine | Function: | Making Animal Feed |
|---|---|---|---|
| Capacity: | 200-300kg/h | Motor Power: | 7.5kw |
| Moisture: | 10-18% | Dimension: | 1050*480*990mm |
| Weight: | 200kg | Voltage: | 380V/50HZ |
| High Light: | 50HZ Feed Pellet Machine,7.5kw Biomass Feed Pellet Machine,Biomass Feed pellet machine |
||
Product Description

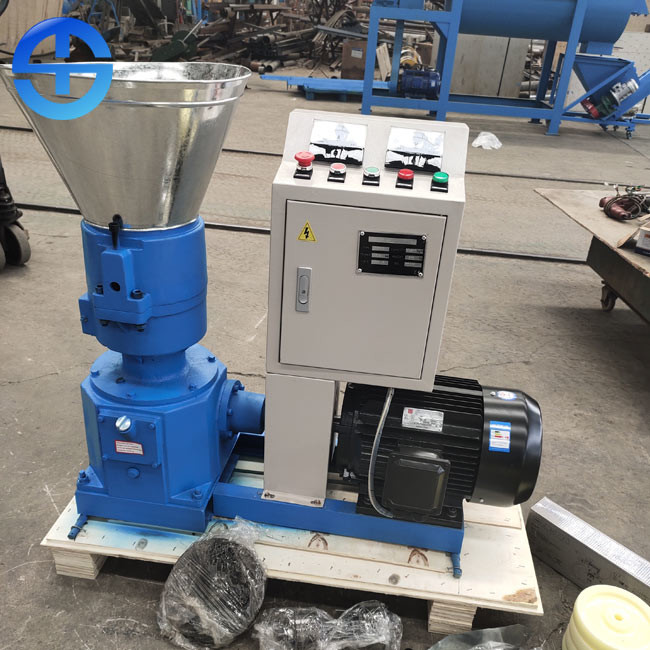

380V/50HZ 7.5kw 10-18% Moisture 200-300kg/H Feed Pellet Machine
Description of feed pellet machine
Feed pellet machine is a kind of feed processing machinery which uses corn, soybean meal, straw, grass and rice husk as raw materials and directly pressed into pellets after crushing raw materials. It is mainly used in grain and feed processing plants, animal farms, poultry farms, individual farmers and small and medium-sized farms, farmers or large, medium and small-sized feed processing plants. According to different raw materials and uses, feed pellet processing machinery is also known as straw feed pellet machine, small feed pellet machine, breeding feed pellet machine, household pellet processing equipment, pig feed pellet machine and so on. Feed pellet processing machinery is recognized by more and more farmers.
Technical parameters of feed pellet machine
| Model | Power | Output (kg/h) | Dimension (mm) | G.W | N.W | Moisture required |
| 120 | 2.2/3kw | 60-100 | 750*320*680 | 100kg | 80kg | 10-18% |
| 150 | 4kw | 90-120 | 800*450*700 | 110kg | 91kg | 10-18% |
| 200 | 7.5kw | 200-300 | 1050*480*990 | 230kg | 200kg | 10-18% |
| 230 | 11kw | 300-400 | 1180*540*1000 | 320kg | 290kg | 10-18% |
| 260 | 15kw | 400-600 | 1240*540*1000 | 360kg | 320kg | 10-18% |
| 300 | 22kw | 600-800 | 1300*560*1100 | 450kg | 410kg | 10-18% |
| 400 | 30kw | 800-1200 | 1560*640*1400 | 700kg | 660kg | 10-18% |
Features of feed pellet machine
1). Powder feed and grass powder can be pelletized without adding or a little liquid, and part of moisture will be lost during granulation process, so the moisture content of pellet feed is lower than that of material before granulation, which is more convenient for storage.
2). This cattle pellet machine uses shaft drive to make pellets without belt. Using high technology, it has a lot of foresight than the original belt drive. This machine does not need to add any water to make pellets, which belongs to the type of dry in and dry out. At the time of manufacturing, we use it for those small-scale farms. At the same time, the granules can be kept for a long time, and it is not a problem for more than half a year.
4.Dry material processing can produce feed pellets with high hardness, smooth surface and internal ripening, which can improve the digestion and absorption of nutrients.
5. It is easy to adjust the length of the pellets. It has the advantages of simple structure, small floor area and low noise. It can be operated by 220 V single-phase power. It is suitable for small-scale farmers who lack three-phase electricity.
Application of feed pellet mill
Our Machine to Make Wood Pellets with wide Applications and High Output Efficiency. The Applications Raw Materials as follows:
(1). All kinds of wood waste or agro-forestry waste can be used,such as:Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded edible fungus bags.Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee husk,cotton shell,peanut shell,rice shell,coconut shell.
(2).Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips and many other organic waste resources.
Working process of feed pellet mill
The motor drives the spindle through the hypoid bevel gear, and the spindle drives the press roll to rotate. When processing raw materials, the raw materials are sent to the feeding chamber of the flat die machine, and the materials fall on the flat die. The main shaft drives the press roller to rotate. The roller continuously rolls through the material layer and extrudes the material into the die hole. The material experiences the process of forming and maintaining shape in the die hole. After a certain period of time, the material is extruded in a cylindrical state. The rotating cutter cuts off the material and forms particles, which are sent out by the material throwing plate.
