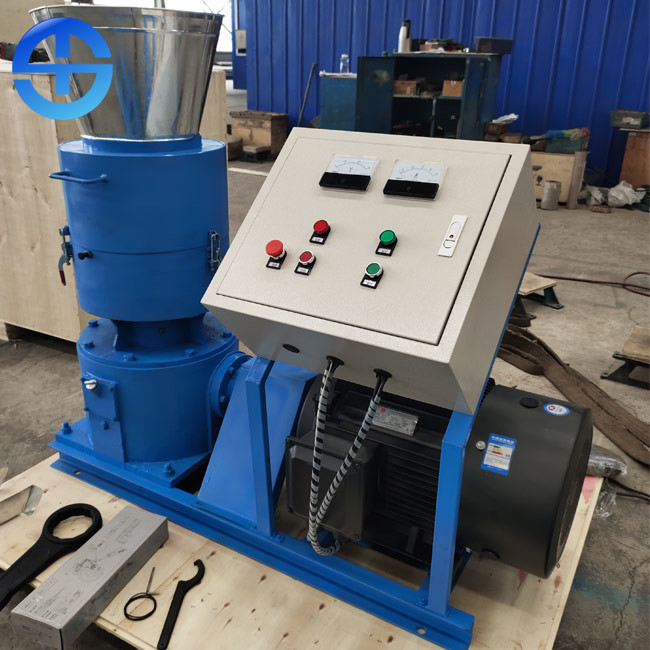

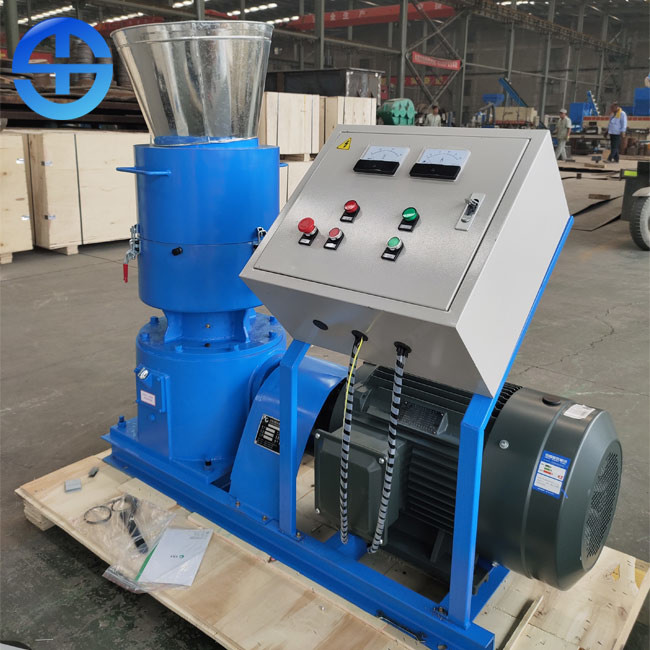

30kw Flat Die Biomass Wood Sawdust Pellet Machine PLC Control

30kw Flat Die Biomass Wood Sawdust Pellet Machine PLC Control

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Exported ply wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80 sets per month
Get Best Price Contact Now

Detail Information

Name: Biomass Pellet Machine Function: Produce Pellet As Fuel
Die Type: Flat Die Pellet Output: 800-1200kg/h
Motor Power: 30kw Moisture Required: 10-18%
Raw Material: Sawdust, Rice Shell, Straw, Bagasse Etc Pellet Size: 3, 4, 5, 6, 8mm
High Light:

Wood Sawdust Pellet Machine


30kw Biomass Pellet Machine


Biomass Pellet Machine PLC Control

Product Description

PLC Control 30kw Flat Die biomass wood sawdust Pellet machine


Description of biomass pellet machine


Biomass pellet can take the agricultural and forestry processing wastes such as sawdust, straw, rice husk, bark and other biomass as raw materials, and solidify them into high-density pellet fuel through pretreatment and processing. It can not only save energy, but also reduce emissions, economic and social benefits. It is an efficient and clean renewable energy. Biomass pellet machine is divided into flat biomass pellet and ring biomass pellet and updated products. Our company mainly produce the flat biomass pellet machine.


Technical parameters of biomass pellet machine


Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%


Features of biomass pellet machine


Features of Model 400: this model is one of the company's main products, with an annual output of more than 800kg, which can meet the needs of most small-scale customers, and is highly praised by individuals. If the customer has three-phase electricity, and does not need too much production, you can choose this model, the price is very low, with the electric control cabinet, belongs to a standard model of pellet mill, and change into sawdust tray, you can also make some sawdust particles, the output of sawdust particles is half of that of feed pellet. To customers with a sawdust mold plate, you can do different particles. All models above 200 can be added with sawdust tray.


Advantages of biomass pellet machine


Roller-turned electric pellet mill machine enjoys high efficiency, stable performance, strong durability, and little maintenance. Its die compression ratio can be adjusted according to the specific raw material. And the service life of its flat die prolongs as both sides of the die can be used. It is made of high-quality steel, thus ensuring the machine’s long service life.
This pellet mill is also called sawdust pellet mill or wood pellet mill, as it is mainly used to make pellets from sawdust and various woods. Moreover, it can also make pellets from other biomass materials, like: grass, bagasse, peanut shell, cotton and corn stalks, and other agricultural residuals.


Application of biomass pellet machine


This homemade wood pellet machine can be used to make fuel fuel pellets from biomass materials. In addition, this homemade pellet mill can also be used to produce feed pellets and bedding pellets for poultry, cattle, pig, etc.

For making animal feed: The suitable raw materials for making feed pellets include bean pulp, maize, grass, wheat bran, rice hull, straw, silage, etc. Pelleted feed made by the flat die pellet mill can be stored for a long time. It can shorten the period of feeding, so it can efficiently guarantee many users' productive cost. Feed pellets are mainly adopted to feed cattle, chicken, pig, rabbits and other animals.

For making fuel pellets: Raw materials for biomass pellets mainly include: wood wastes (such as sawdust, wood chips, wood shavings, and other parings from furniture manufacturers or wood working factory; wood wastes including pine tree waste, spruce tree waste) and agricultural wastes (like rice straw, peanut shells, coconut shells, palm wastes, corn stover, switchgrass, etc.). In the process of making wood pellets, the lignin and resin of woods can serve as binder for pelletizing. So there is no need to add any additives.
