PLC 500kg/H Copper Wire Recycling Machine 110.76kw Power 600Kg/H
Contact Person : Thomas Wang
Phone Number : +86 18203683590
WhatsApp : +8618203683590
|Minimum Order Quantity :||1 Set/Sets||Price :||USD7100-7400 per set|
|Packaging Details :||Ply wooden case||Delivery Time :||15 work days after receiving the deposit|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||30 Set/Sets per month|
|Place of Origin:||Zhengzhou, China||Brand Name:||TMS|
|Certification:||CE, CO, ISO||Model Number:||300|
|Name:||Mini Copper Wire Granulator||Material:||Copper Wires/cable|
|Function:||Recycle Pure Copper||Motor Power:||12.24kw|
|Purity Rate:||99.9%||Copper Output:||60-100 Kg/h|
|Size:||1360*1300*1915 Mm||Wire Size:||0.1-20mm|
100kg/Hr Copper Wire Recycling Machine,
99% Copper Wire Recycling Machine,
100kg/Hr mini copper wire granulator

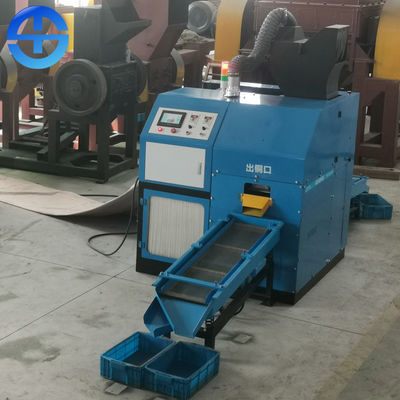

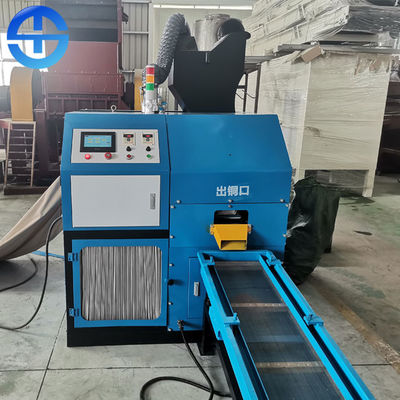

99% Purity Rate 60-100kg/H Mini Copper Wire Granulator Machine
Description of mini copper wire granulator
For most recyclers, copper/aluminum wire is only one part of their scrap and controlling production cost is also an important thing, so we push out this mini copper wire granulator. It is specially designed for small-scale wire recycling. With low cost, simplified structure, good operating experience and easy maintenance, this model has been inquired and purchased by more and more customers worldwide.
Mini copper wire granulator can crush waste copper cable or wire into 1-5 mm granules mixed with plastic(PVC)&copper.Then use air, specific gravity and electrostatic separation technique to separate copper and plastic.So that the copper and plastic can be both recycled, greatly increasing their application values. By using totally dry-type physical separating technique there will be no environment pollution during the whole process and the separating ratio can be reach 99%.
Mini copper wire granulator can recycle scrap copper wire to separated copper and plastic. ... In copper wire granulator working process, firstly, the scrap copper wire is crushed by the first crusher into about 10mm, then the mixture will be delivered to the second crusher to be recrushed into 3-5 mm.
Technical parameter of mini copper wire granulator
|Model||Size||Capacity||Wire diameter range||Power||Volage||Wight|
|TMS-300||1360*1300*1915 mm||60-100 kg/h||0.1-20 mm||12.24 kw||380/240V||1220kg|
|TMS-400||2700*1900*2300 mm||150-200 kg/h||0.1-20 mm||23.12 kw||380/240V||1200kg|
|TMS-600||4300*1950*2400 mm||300-400 kg/h||0.1-20 mm||52.36 kw||380/240V||3400kg|
|TMS-800||9200*4100*3540 mm||500-600 kg/h||0.1-30 mm||71.86 kw||380/240V||4100kg|
Advantages of mini copper wire granulator
1. Eco-friendly equipment: Each copper recycling machine is equipped with a dust collection device, so the recycling process does no harm to environment.
2. Easy operation: PLC control system, highly automatic, high efficiency.
3. Recycling rate is up to 99%.
4. Cover a small area: The structure of the machine is compact. In addition, it’s easy to install a copper recycling machine.
5. High-quality spare parts, long service life. The blade is made of high-quality alloy steel.
Appication of mini copper wire granulator
Shredwell waste cable wire recycling plant or cable recycling machine is mainly used to recycle different types of cable wires, such as all kinds of automotive circuit cable lines, communication cable lines and various waste wires that are not suitable to be processed by stripping machines. Like: computer wires, automobile wires, tele-communication cables, electric telephone wires. The functions of these cable recycling system include pre-shredding, steel removal, granulation and separation of plastics from copper or aluminum. The advanced design of these plants results in excellent separation of the different fractions, even when processing mixed cables of varying size and composition.
