Capacity 60kg/H 80kg/H Copper Wire Recycling Machine Integrated

Capacity 60kg/H 80kg/H Copper Wire Recycling Machine Integrated

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, CO, ISO
Model Number: 300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: USD7400-8500
Packaging Details: Ply wooden case
Delivery Time: 15 work days after receiving the deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Wire Recycling Machine Material: Scrap Copper Wires
Function: Recycle Pure Copper Total Motor: 12.24kw
Purity: 99.9% Input: 60-100 Kg/h
Total Size: 1360*1300*1915mm Diameter Of Wire Processed: 0.1-20mm
High Light:

80kg/H Copper Wire Recycling Machine


60kg/H Copper Wire Recycling Machine


60kg/H cable recycling machine

Product Description

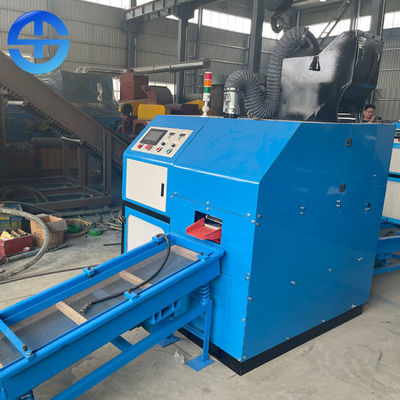

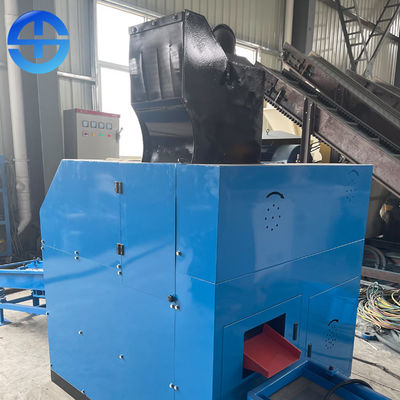

Capacity 60kg/H 80kg/H Copper Wire Recycling Machine


Introduction of Copper wire recycling machine


TMS-300 Automatic integrated copper wire recycling machine is a professional production line for dry separation of waste wires and cables. For example, old automobile circuit lines, communication cables, and wire stripping machines are not suitable for processing (all kinds of civil wires) waste miscellaneous wires, wool thin wires, etc. The characteristics of this machine are that the large and small lines can be broken and separated at the same time without classification. It has new structure, large production capacity, low power consumption, high sorting rate, one feeding and multi machine cooperation. The whole line is controlled by PLC, which is at the leading level in China. The successful development of the machine not only solves the problems in the method of burning copper, but also improves the quality of copper recovery, recycles plastics and solves environmental pollution.


Technical parameter of copper wire recycling machine


Model Dimension (mm) Capacity Wire diameter range Power Volage Weight
TMS-300 1360*1300*1915 60-100 kg/h 0.1-20 mm 12.24 kw 380/240V 1220kg
TMS-400 2700*1900*2300 150-200 kg/h 0.1-20 mm 23.12 kw 380/240V 1200kg
TMS-600 4300*1950*2400  300-400 kg/h 0.1-20 mm 52.36 kw 380/240V 3400kg
TMS-800 9200*4100*3540  500-600 kg/h 0.1-30 mm 71.86 kw 380/240V 4100kg


Advantages of copper wire recycling machine


After the crushing and processing of waste wires and cables, the fully automatic mechanical separation can completely separate copper and plastic, achieve the purpose of comprehensive utilization, and have high economic benefits. And no dust, no secondary pollution. In addition, the equipment is an integral combined structure, which is convenient for installation, commissioning and transportation (the customer can produce by connecting the power supply after purchasing), and the performance is stable.


1. Compact structure, beautiful appearance, reasonable layout and convenient installation.

2. PLC control is adopted to make the equipment feed evenly and operate intelligently, which makes the operation easier, worry-saving, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.

3. The crusher adopts counter roll type, with low speed, high torque, large output, low noise and simple operation.

4. The crusher, sorting equipment and dust collection equipment adopt the platform combination type, which makes the equipment easy to move and transport and increases the flexibility of the equipment.

5. The rotor of the crusher adopts alternating cutter shaft, which makes the crusher more efficient, lower noise and more stable operation.

6. The air separation equipment has high separation rate.

7. The return system makes the semi-finished products undergo secondary crushing to ensure the complete separation of metal and non-metal.

8. Bag dust collection equipment can effectively control dust overflow and has high dust removal efficiency.
