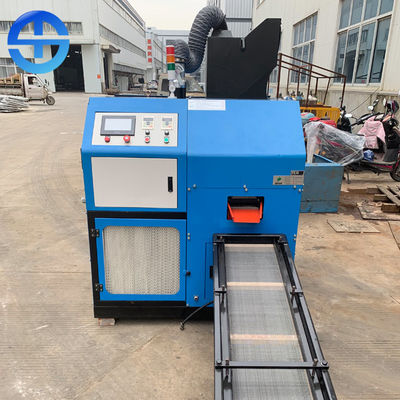

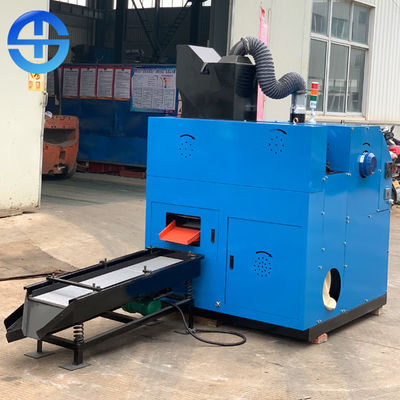

Small 80kg/H Copper Cable Granulator 99% Recovery

Small 80kg/H Copper Cable Granulator 99% Recovery

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, CO, ISO
Model Number: 300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: USD7100-7400 per set
Packaging Details: Ply wooden case
Delivery Time: 15 work days after receiving the deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Cable Granulator Material: Copper Cables
Function: Separate Copper From Plastic Motor Power: 12.24kw
Recovery: 99% Input: 60-100kg/h
Machine Size: 1360*1300*1915 Mm Wire Diameter: 0.1-20mm
High Light:

80kg/H Copper Cable Granulator


99% Copper Cable Granulator


80kg/H small copper granulator

Product Description

99% Recovery Small 80kg/H Copper Cable Wire Granulator


Introduction of copper cable granulator


For most recyclers, copper/aluminum wire is only one part of their scrap and controlling production cost is also an important thing, so we push out this mini copper wire granulator. It is specially designed for small-scale wire recycling. With low cost, simplified structure, good operating experience and easy maintenance, this model has been inquired and purchased by more and more customers worldwide.

Scrap cable granulator is a kind environmental protection type machinery, also called as copper wire granulator machine. Copper wire granulator machine is used for recycling scrap cable wires to separated copper and plastic through crushing, air separation or electrostatic separation process, without using fire, water or chemical, thus no secondary pollution to the environment.


Technical parameter of copper cable granulator

Model Size Capacity Wire diameter range Power Volage Wight
TMS-300 1360*1300*1915 mm 60-100 kg/h 0.1-20 mm 12.24 kw 380/240V 1220kg
TMS-400 2700*1900*2300 mm 150-200 kg/h 0.1-20 mm 23.12 kw 380/240V 1200kg
TMS-600 4300*1950*2400 mm 300-400 kg/h 0.1-20 mm 52.36 kw 380/240V 3400kg
TMS-800 9200*4100*3540 mm 500-600 kg/h 0.1-30 mm 71.86 kw 380/240V 4100kg


Advantages of copper cable granulator


1. Eco-friendly equipment: Each copper recycling machine is equipped with a dust collection device, so the recycling process does no harm to environment.

2. Easy operation: PLC control system, highly automatic, high efficiency.

3. Recycling rate is up to 99%.
4. Cover a small area: The structure of the machine is compact. In addition, it’s easy to install a copper recycling machine.
5. High-quality spare parts, long service life. The blade is made of high-quality alloy steel or D2.


Raw materials of copper cable granulator


Small copper granulator is mainly used to recycle different types of cable wires, such as all kinds of automotive circuit cable lines, communication cable lines and various waste wires that are not suitable to be processed by stripping machines. Like: computer wires, automobile wires, tele-communication cables, electric telephone wiresThe functions of these cable recycling system include pre-shredding, steel removal, granulation and separation of plastics from copper or aluminum. The advanced design of these plants results in excellent separation of the different fractions, even when processing mixed cables of varying size and composition.

Small copper granulator can be connected to the pre-grinders through an conveyor in order to create a complete recycling plant. So the output will be more and more higher.


Small copper granulator are able to provide technical solutions for the recycling particularly problematic materials such as: armoured cable with a diameter greater than 100 mm, tech cable of any size, submarine cable with presence of fat and oil, extremely thin wire (telephone wires, data cables, cables from the recycling of computers), cable from electrical and electronic equipment, capillary cable, cable coming from the demolition of vehicles contaminated by sticky or oily materials.


Small 80kg/H Copper Cable Granulator 99% Recovery 0


Small 80kg/H Copper Cable Granulator 99% Recovery 1
