Small 12.24kw 60kg/H 100kg/H Copper Wire Recycling Machine

Small 12.24kw 60kg/H 100kg/H Copper Wire Recycling Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, CO, ISO
Model Number: 300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: USD7100-7400 per set
Packaging Details: Ply wooden case
Delivery Time: 15 work days after receiving the deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Cable Recycling Machine Appliaction: Scrap Copper Cables
Main Function: Recycle Pure Copper KW: 12.24kw
Recovery Rate: 99% Input Capacity: 60-100 Kg/h
Measure: 1360*1300*1915 Mm Material Size Processed: 0.1-20mm
High Light:

100kg/H Copper Wire Recycling Machine


60kg/H Copper Wire Recycling Machine


100kg/H copper cable recycling machine

Product Description

Small 60-100kg/H Input 12.24kw Copper Cable Wire Recycling Machine


Overvied of copper cable recycling machine


Copper cable recycling machine can crush waste copper cable or wire into 1-5 mm granules mixed with plastic(PVC)&copper.Then use air, specific gravity and electrostatic separation technique to separate copper and plastic.So that the copper and plastic can be both recycled, greatly increasing their application values. By using totally dry-type physical separating technique there will be no environment pollution during the whole process and the separating ratio can be reach 99%.

After a brief sort-out before hand, similar size cables can be processed together ; 99% Copper and PVC Separation, 99% Copper Recycled, no dust, no pollution ; The one whole structure design suitable for transportation,installation, commissioning and maintenance, easy to plug and play ; Cable processing scope: all types of cables under 20mm, car cables,data cables,computer cable,etc that the stripping machine not suitable for


Technical parameter of copper cable recycling machine

Model Size Capacity Wire diameter range Power Volage Wight
TMS-300 1360*1300*1915 mm 60-100 kg/h 0.1-20 mm 12.24 kw 380/240V 1220kg
TMS-400 2700*1900*2300 mm 150-200 kg/h 0.1-20 mm 23.12 kw 380/240V 1200kg
TMS-600 4300*1950*2400 mm 300-400 kg/h 0.1-20 mm 52.36 kw 380/240V 3400kg
TMS-800 9200*4100*3540 mm 500-600 kg/h 0.1-30 mm 71.86 kw 380/240V 4100kg

Copper cable recycling machine are able to provide technical solutions for the recycling particularly problematic materials such as: armoured cable with a diameter greater than 100 mm, tech cable of any size, submarine cable with presence of fat and oil, extremely thin wire (telephone wires, data cables, cables from the recycling of computers), cable from electrical and electronic equipment, capillary cable, cable coming from the demolition of vehicles contaminated by sticky or oily materials.

Main features of copper cable recycling machine


1.Recycling rate is up to 99%

2.Cover a small area: The structure of the machine is compact. In addition, it’s easy to install a copper cable recycling machine .
3.High-quality spare parts, long service life. The blade is made of high-quality alloy steel.
4. Eco-friendly equipment: Each copper recycling machine is equipped with a dust collection device, so the recycling process does no harm to environment.


Raw materials of copper cable recycling machine


Recycle different types of cable wires, such as all kinds of automotive circuit cable lines, communication cable lines and various waste wires that are not suitable to be processed by stripping machines. Like: computer wires, automobile wires, tele-communication cables, electric telephone wiresThe functions of these cable recycling system include pre-shredding, steel removal, granulation and separation of plastics from copper or aluminum. The advanced design of these plants results in excellent separation of the different fractions, even when processing mixed cables of varying size and composition.

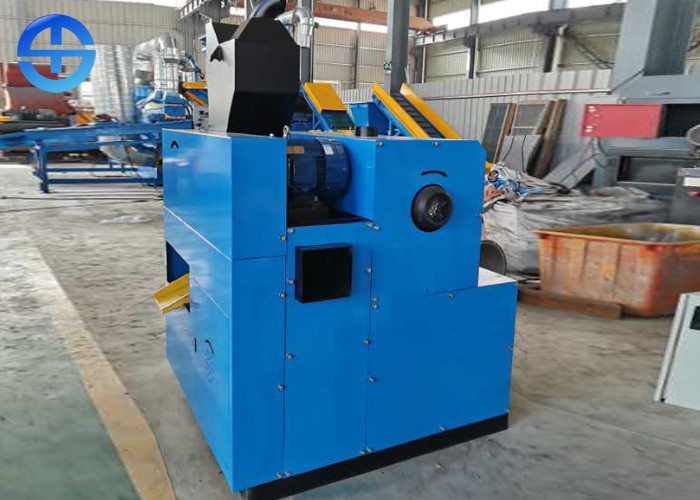

Small 12.24kw 60kg/H 100kg/H Copper Wire Recycling Machine 0

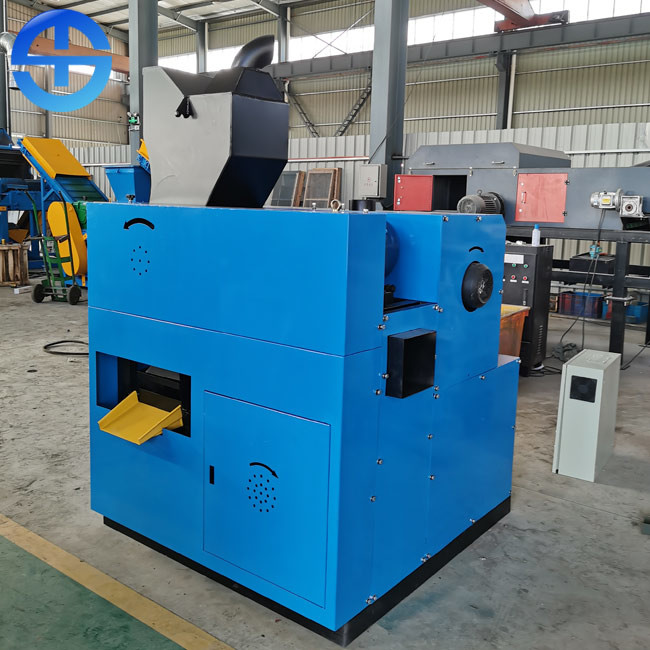

Small 12.24kw 60kg/H 100kg/H Copper Wire Recycling Machine 1
