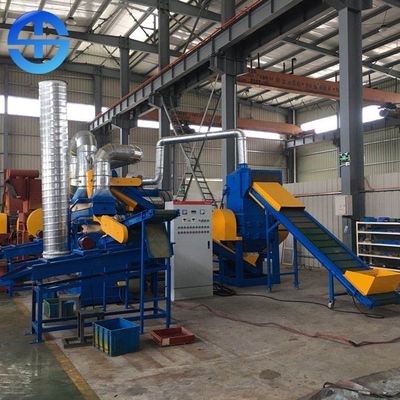

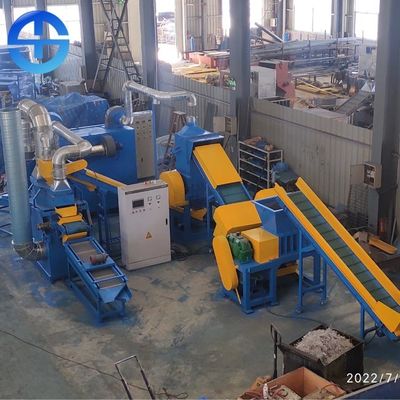

PLC 500kg/H Copper Wire Recycling Machine 110.76kw Power 600Kg/H

PLC 500kg/H Copper Wire Recycling Machine 110.76kw Power 600Kg/H

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CE, CO, ISO
Model Number: 800

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Full container 1*40'GP
Delivery Time: 20 work days after receiving the deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Wire Recycling Machine Application: Kinds Of Cables
Type: Dry Type Power: 110.76kw
Output: 500-600 Kg/h Wire Diameter: 0.1-20mm
Separating Rate: 99.9% Dimension: 10128*5977*32 Mm
High Light:

PLC Copper Wire Recycling Machine


110.76 kw Copper Wire Recycling Machine


500kg/H Copper Wire Recycling Machine

Product Description

PLC 110.76kw Power 500kg/H 600 Kg/H Copper Wire Recycling Machine


Description of copper wire recycling machine


Copper wire recycling machine can crush waste copper cable or wire into 1-5 mm granules mixed with plastic(PVC)&copper.Then use air, specific gravity and electrostatic separation technique to separate copper and plastic.So that the copper and plastic can be both recycled, greatly increasing their application values. By using totally dry-type physical separating technique there will be no environment pollution during the whole process and the separating ratio can be reach 99%.

After a brief sort-out before hand, similar size cables can be processed together. 99% Copper and PVC Separation, 99% Copper Recycled, no dust, no pollution ; The one whole structure design suitable for transportation,installation, commissioning and maintenance, easy to plug and play ; Cable processing scope: all types of cables under 20mm, car cables,data cables,computer cable,etc that the stripping machine not suitable for


Technical parameters of wire recycling machine


Dimension(mm) Capacity(kg/h) Separation effect Dust removal effect Total power(kw)
10128*5977*32 400-600 >99.5% >99% 110.76

Feature of copper wire recycling machine


1. The whole system is controlled by the Electricity Control Panel.
2. The bottom air flow is controlled by the Airlock.
3. Crushing system adopts D2 alloy cutting tool, the processing hardness is HR58. It can ensure the high-wearing resistance as well as a certain tenacity of the crushing blade. The structure is designed as splayed alternate shearing structure, the shell of wire grinding equipment adopts water cooling system, thus avoiding, material heating and melting after long time operation.
4. The operation of the complete set of equipment is fully enclosed, it is equipped with an advanced pulse dust removal system that effectively collects dust in the production process and discharges it from the dust outlet.
5. In view of the fact that the copper wire crusher manufactured in other countries can recover the copper with a purity more than 99.5%, but 3-5% of the copper powder and brushed copper will be lost into the plastic in the sorting process, our company is equipped with electrostatic selection equipment, the remaining copper in the plastic can be sorted out again, so that there is no plastic in the copper and no copper in the plastic.


Technological process of copper wire recycling machine


If the site or funds are more abundant, the waste wires and cables can be broken into about 3cm long by shredding equipment, then cut and crushed by secondary crusher, and then separated by specific gravity air flow to obtain high purity copper. If the copper contains unsorted broken plastic, it can also be sorted by electrostatic separator to ensure high reuse rate of copper. The equipment has the advantages of new and reasonable structure, large production capacity and low power consumption. High sorting rate, one-time feeding and multi machine supporting facilities. The production line is controlled by PLC. The machine solves the problems of air pollution and copper wire blackening caused by burning copper. The copper quality remains unchanged, the recovery rate can be improved, the plastic can be reused, and the problem of environmental pollution can be avoided.
