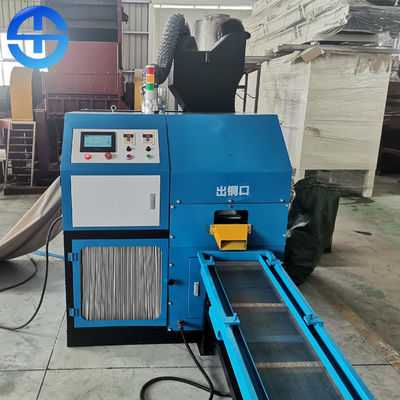

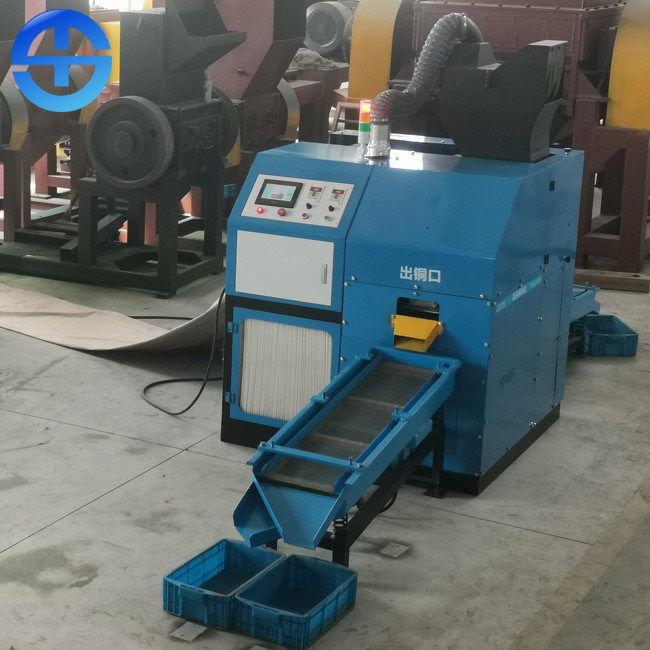

Mini 99% Purity Rate 100kg/Hr Copper Wire Recycling Machine

Mini 99% Purity Rate 100kg/Hr Copper Wire Recycling Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, CO, ISO
Model Number: 300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: USD7100-7400 per set
Packaging Details: Ply wooden case
Delivery Time: 15 work days after receiving the deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per month
Get Best Price Contact Now

Detail Information

Name: Mini Copper Wire Granulator Material: Copper Wires/cable
Function: Recycle Pure Copper Motor Power: 12.24kw
Purity Rate: 99.9% Copper Output: 60-100 Kg/h
Size: 1360*1300*1915 Mm Wire Size: 0.1-20mm
High Light:

100kg/Hr Copper Wire Recycling Machine

,

99% Copper Wire Recycling Machine

,

100kg/Hr mini copper wire granulator

Product Description

99% Purity Rate 60-100kg/H Mini Copper Wire Granulator Machine



Description of mini copper wire granulator



For most recyclers, copper/aluminum wire is only one part of their scrap and controlling production cost is also an important thing, so we push out this mini copper wire granulator. It is specially designed for small-scale wire recycling. With low cost, simplified structure, good operating experience and easy maintenance, this model has been inquired and purchased by more and more customers worldwide.

Mini copper wire granulator can crush waste copper cable or wire into 1-5 mm granules mixed with plastic(PVC)&copper.Then use air, specific gravity and electrostatic separation technique to separate copper and plastic.So that the copper and plastic can be both recycled, greatly increasing their application valuesBy using totally dry-type physical separating technique there will be no environment pollution during the whole process and the separating ratio can be reach 99%.

Mini copper wire granulator can recycle scrap copper wire to separated copper and plastic. ... In copper wire granulator working process, firstly, the scrap copper wire is crushed by the first crusher into about 10mm, then the mixture will be delivered to the second crusher to be recrushed into 3-5 mm.



Technical parameter of mini copper wire granulator

Model Size Capacity Wire diameter range Power Volage Wight
TMS-300 1360*1300*1915 mm 60-100 kg/h 0.1-20 mm 12.24 kw 380/240V 1220kg
TMS-400 2700*1900*2300 mm 150-200 kg/h 0.1-20 mm 23.12 kw 380/240V 1200kg
TMS-600 4300*1950*2400 mm 300-400 kg/h 0.1-20 mm 52.36 kw 380/240V 3400kg
TMS-800 9200*4100*3540 mm 500-600 kg/h 0.1-30 mm 71.86 kw 380/240V 4100kg



Advantages of mini copper wire granulator



1. Eco-friendly equipment: Each copper recycling machine is equipped with a dust collection device, so the recycling process does no harm to environment.

2. Easy operation: PLC control system, highly automatic, high efficiency.

3. Recycling rate is up to 99%.
4. Cover a small area: The structure of the machine is compact. In addition, it’s easy to install a copper recycling machine.
5. High-quality spare parts, long service life. The blade is made of high-quality alloy steel.



Appication of mini copper wire granulator



Shredwell waste cable wire recycling plant or cable recycling machine is mainly used to recycle different types of cable wires, such as all kinds of automotive circuit cable lines, communication cable lines and various waste wires that are not suitable to be processed by stripping machines. Like: computer wires, automobile wires, tele-communication cables, electric telephone wiresThe functions of these cable recycling system include pre-shredding, steel removal, granulation and separation of plastics from copper or aluminum. The advanced design of these plants results in excellent separation of the different fractions, even when processing mixed cables of varying size and composition.
