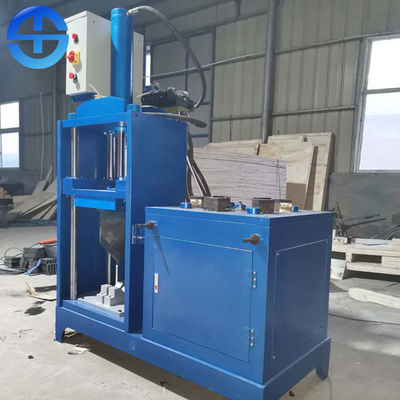

Reliable Motor Stator Recycling Machine Motor Stator Dismantling Recycling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | TMS-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard exported ply wooden case or Full container for large quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | Motor Stator Recycling Machine | Function: | Cutting And Pulling Copper From Stator |
|---|---|---|---|
| Stator Diameter: | 100-250 Mm | Power: | 4.5 Kw |
| Capacity: | 30-50 Pieces/h | Size: | 1470*740*2040 Mm |
| Weight: | 1050 Kg | Voltage: | 380V Or Customized |
| High Light: | electric motor wrecker,electric motor recycling machine |
||
Product Description
Reliable Motor Stator Recycling Machine Motor Stator Dismantling Recycling Machine
Description of motor stator recycling machine
Motor stator consists of three parts,the stand and installed within the frame of iron cylindrical core and the copper wire winding. Waste motor stator cutting and dismantling machine is special equipment for stator dismantling, it adopts hydraulic system, cuts stator frame (limited to cast iron frame), then cuts cylindrical iron core into halves, and copper wire winding is easily pulled out from cylindrical core, it separates into iron, silicon steel sheet, copper core wire, complete the motor stator dismantling process. The stator cutting machine works stable and reliable, high efficiency, convenient and flexible operation, no pollution to environment, is the ideal equipment of motor stator dismantling.
Technical parameters of motor stator recycling machine
| Model | Power | Capacity | External diameter | Size | Weight |
| TMS-003 | 4.5kw | 30-50 pcs/h | 100-250mm | 1470*740*2040mm | 1050kg |
Features of motor stator recycling machine
1. The electric motor recycling machine is our self-developed product,which target for waste motor cutting, copper coil and metal shell recycling equipment, improve economic efficiency
2. Nice appearance and reasonable structure.
3. Using heavy cylinder, large torque, can withstand high loads
4. We use international famous brand for hydraulic solenoid valvewith durable long life5 The material of fixture is alloy steel with durable long life
5. The material of fixture is alloy steel with durable long life
6. The processing of equipment is without metal loss, with improved re-cycling value, and environmental friendly
7. Adopted hydraulic system, the disassembly function is stable, the disassembly efficiency is greatly improved, and the labor intensity is reduced.
8. The cutting blade is made of high wear-resistant carbide, which is easy to operate, reliable, fast to cut, and does not produce adhesion and burr.

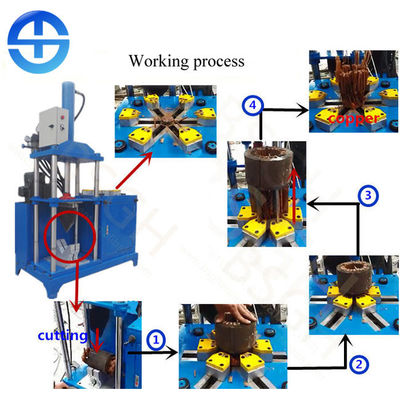

Working Principle of motor stator recycling machine
It adopts hydraulic system, moving up and down by master cylinder, through change different blades, cuts stator frame (limited to cast iron frame), and cuts stator cylindrical iron core into halves, on the other working table copper wire winding is easily pulled out from cylindrical core, it separates into iron, silicon steel sheet, copper core wire, complete the motor stator dismantling process.
Motor stator broken by hydraulic system disassemble, moving with a master cylinder, through the replacement of different tooling, respectively (limited to the motor stator frame and stator iron frame) cylindrical iron core is broken into two halves, in another position can be a cylindrical stator winding copper iron core in the iron pulled out. The motor stator, silicon steel sheet, copper wire from the three part to complete the dismantling process of motor stator.
