Industrial Copper Separator Machine Ac Aluminum Copper Radiator Shredder

Industrial Copper Separator Machine Ac Aluminum Copper Radiator Shredder

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CO, ISO
Model Number: TMS-016

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Packed by standard exported ply wooden case.
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Material Processed: Scrap Radiators Power: 3 Kw+4 Kw
Capacity: 2000-3000 Kg/day Dimension: 1800*800*1200 Mm
Weight: 600 Kg Function: Separator Copper And Aluminum
Voltage: 380v/50HZ(as Customers' Request ) Port: Shanghai
High Light:

copper separator machine

,

aluminum recycling machine

Product Description

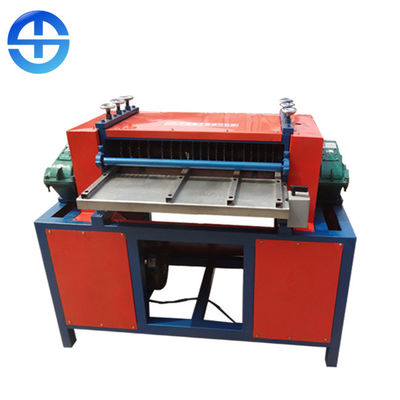

Industrial Copper Separator Machine Ac Aluminum Copper Radiator Shredder



Description of radiator recycling machine

Radiator recycling machine is used for separating the outside aluminium foil and the inside copper pipe of wasted air conditioning radiator. Each set of this kind of machine just can separate two different specification radiators. Because the interval width of the copper pipe are different in the radiator, so we need you can offer us the width of the copper pipe of the radiator. In China, the width of the radiator copper pipe is 21MM, 25MM, and 19MM. Besides, the thickness is one layer and two layers. If the thickness is 3 to 4 layer, the Band Saw Machine is necessary.

Technical Parameters of radiator recycling machine

Size Capacity Power Weight Motor
1800*800*1200 mm 2000-3000 kg/day 3+4 kw 600kg customised

Features of radiator recycling machine

1.Controlled by PLC. Just one press and it will start or stop.
2.Outlook design safe and reliable. All electric parts are covered by guarding shell.
3.The transfer from processing one layer or two layers only takes 2 seconds.

Structure of radiator recycling machine

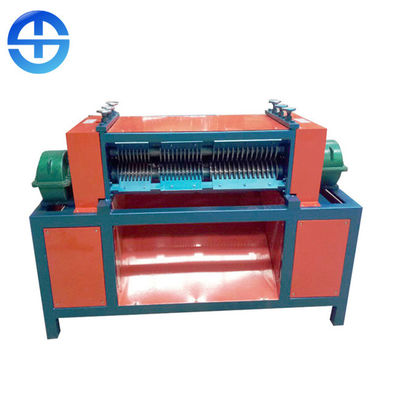

Radiator recycling machine is consisted of one frame , two motors , two speed reducers , material feeding part , material cutting part , material separation part , transmission part and material feeding panel.
Radiator recycling machine has 69 pcs blades , including 40 pcs big blades and 29 pcs small blades.


Application of radiator recycling machine



This copper-aluminum separator can handle all kinds of water tanks, convection radiator, steel radiator, aluminum radiator, copper radiator, stainless steel radiator, copper aluminum radiator, and the original cast iron radiator.



Attention for radiator recycling machine



1). This radiator recycling machine can process the radiators which is flat and non-deformed .
2). The diameter centerline of the copper pipes in level need to be 19mm or 21mm or 25 mm , if your radiator is other size , we also can customized for you .

3). Before feeding, cut the steel plates off.
4). The machine can only handle one to two layers once. If your radiators are above two layers, cut them into one layer or two layers before processing.
5). There are 3 feeding holes in the machine comply with copper center distance 25mm, 21mm and 19mm respectively. So the feeding width are limited. Before feeding you need to cut wide radiators narrow to fit feeding hole width.
6). The machine relies on the dual action of blades and pressing wheel to cut the aluminum shell to separate copper from aluminum. If the in the output materials, aluminum shell are not separated or cut too deep, please let the blades and blades shaft are in their due position by adjusting the knobs on the top of the machine.
