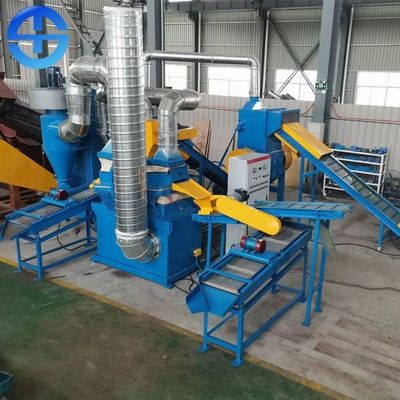

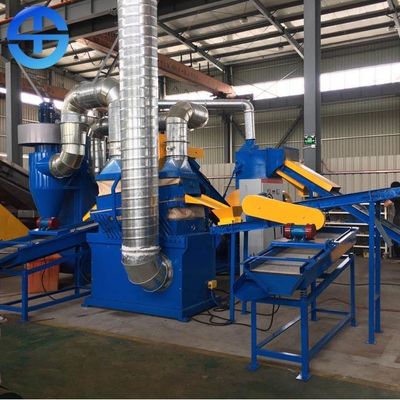

110.76kw Dry Type 99.5% Purity Copper Cable Granulator

110.76kw Dry Type 99.5% Purity Copper Cable Granulator

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CE, CO, ISO
Model Number: 800

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: One full 40 feet container for copper cable granulator
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Cable Granulator Type: Dry Type
Dust Removal Effect: 99% Application: Scrap Copper Cables
Power: 110.76kw Separating Rate: 99.5%
Output: 500-600 Kg/h Size: 10128*5977*32mm
High Light:

Scrap Metal Granulators

,

Copper Cable Granulator

Product Description

110.76kw Dry Type 99.5% Purity Copper Cable Granulator



Description of copper cable granulator



Dry copper cable granulator is used for recycling scrap copper wires/cables with diameter less than 20mm, better for single conductor diameter of 0.2-0.5mm. Scrap copper wires are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector. The recovery rate can reach 99.9%.

Technical parameters of copper cable granulator

Model Size Capacity Wire diameter range Power Volage Wight
Mini-400

1500*1500*1900 mm

80-100 kg/h 0.1-20 mm 11.92 kw 380/240V 750kg
TMS-400 2700*1900*2300 mm 150-200 kg/h 0.1-20 mm 23.12 kw 380/240V 1200kg
TMS-600

4300*1950*2400 mm

300-400 kg/h 0.1-20 mm 52.36 kw 380/240V 3400kg
TMS-800

10128*5977*32 mm

500-600 kg/h 0.1-30 mm 110.76 kw 380/240V 4100kg



Working principle of copper cable granulator

The equipment through the first crusher crush the bulk materials into 5-10cm, then convey into the shredder for second shred, final material is less than 5mm ( second shreder have 3mm, 4mm 5mm shredder net ). After the screening of magnetic separator, some iron and other magnetic substances are separated, copper and plastice are separated by the vibrating separator, dust is collected by the collector. Whole plant under control by PLC.

PLC fuction:1. Effective protection of motor 2. Real time current monitoring of various electrical appliances3. One touch start function4. One button stop function



Application scope of scrap copper cable granulator



The scrap copper wire granulator can process various specifications of waste wires, copper core wires, aluminum core wires, copper single wires, multi wire sheathed wires, earphone wires, data wires, computer wires, ground buried wires, motor wires, flame retardant wires, waterproof wires, lighting wires, factory waste wire heads, plug-in wires, electrical plug wires, car dismantling wires, circuit wires, etc., but the diameter of these wires shall not be greater than 20mm.



Precautions during operation



The correct use of copper wire granulator should select the model according to different material properties, which can not only improve the crushing efficiency, but also prolong the service life of the machine. The blade is processed by wire cutting, and the blade is interchangeable.

For different lines, we have different requirements for the blade of the machine.

1. Wool wire and multi strand wire: when processing wool wire and multi strand wire, the fixed knife and moving knife of the copper wire granulator shall be sharp, and the broken wire shall be cut off by the blade, so that the copper rice is clean and high purity.

2.Single strand and single core wire: when handling single strand and single core wires, the blade edge of the moving knife is required to be blunt and the fixed knife is required to be sharp. Under this requirement, the spacing between the moving knife and the fixed knife is that the single strand cable just blocks the cable and does not contact the wire core. At this time, the cable is broken by inertia, which can effectively avoid copper wrapping.
