Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CE,CO,ISO
Model Number: 600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Packaging Details: Full container for copper wire and cable granulator machine
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per Month copper wire and cable granulator machine
Get Best Price Contact Now

Detail Information

Application: Scrap Copper Wire With Diameter 0.1-20mm Type: Dry Type
Power: 52.36kw Function: Separate Copper From Plastic
Separating Rate: 99.9% Output: 300-400 Kg/h
Weight: 3400kg Dimension: 4300*1950*2400 Mm
Name: Copper Wire Recovery Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

Copper Cable Granulator

,

Dry Type Scrap Metal Granulators

Product Description

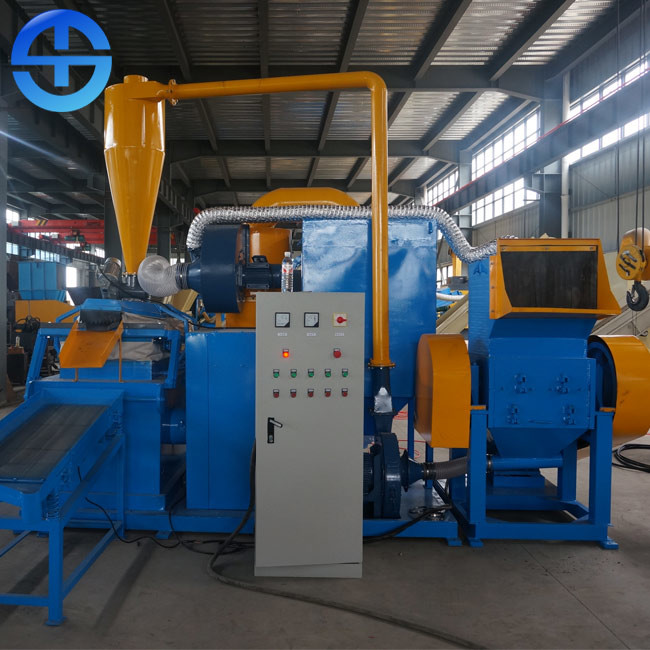

Model TMS-600 Dry Type Copper Wire Recycling Machine Cable recovery Machine



Cable Recovery 400 Kg/H Copper Wire Recycling Machine 0



Product Description

Copper wire recovery machine is used for recycling scrap copper wires/cables with diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm. Scrap copper wires are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector. The recovery rate can reach 99.9%.

The choice of a Cable Granulator depends on the material properties of the types of copper wires and cables. Correct choice can not only improve the working efficiency, but also extend the service life of the machine. The cutting blades are made with Wire Cutting Technique, blades are replaceable for each other. We have different requirements for blades to different types of copper wires.

1). Air-fine Wires, Multi-strands

When dealing with Air-fine Wires and Multi-strands fixed blades and rotating blades must be very sharp so that copper wires can be cut and copper granules will be very clean and pure.

2). Single-strand and Single-core Wires :

When dealing with Single-strand and Single-core Wires, the rotating blades shall be a little blunt and fixed blades must be sharp. In this case, the spacing between the rotating blades and fixed blades is just able to hold wires but does not touch the cores. The wires are crushed but there will be little copper granules with plastics outside.

(Note: if blades are not adjusted in accordance with the requirements, it may cause too many copper clad granules and the separation is not clean, etc.)

Specifications

Model Size Capacity Wire diameter range Power Volage Wight
Mini-400

1500*1500*1900 mm

80-100 kg/h 0.1-20 mm 11.92 kw 380/240V 750kg
TMS-400 2700*1900*2300 mm 150-200 kg/h 0.1-20 mm 23.12 kw 380/240V 1200kg
TMS-600

4300*1950*2400 mm

300-400 kg/h 0.1-20 mm 52.36 kw 380/240V 3400kg
TMS-800

9200*4100*3540 mm

500-600 kg/h 0.1-30 mm 71.86 kw 380/240V 4100kg
Cable Recovery 400 Kg/H Copper Wire Recycling Machine 1
