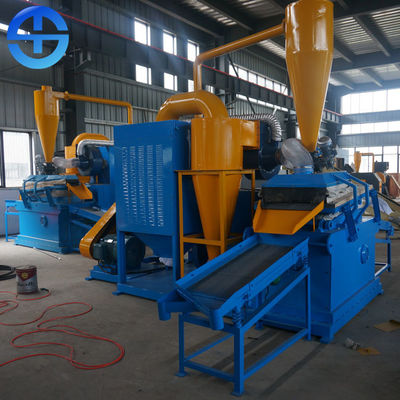

99.9% Separating 52.36kw Copper Wire Recycling Machine

Minimum Order Quantity :	1 Set/Sets	Packaging Details :	Full container for copper wire granulator machine
Delivery Time :	15-25 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	30 Set/Sets per Month copper cable recycling machine

Place of Origin:	Henan, China (Mainland)	Brand Name:	TMS
Certification:	CE, CO, ISO	Model Number:	600

Detail Information
Type:	Dry	Power:	52.36kw
Function:	Separate Copper From Plastic	Separating Rate:	99.9%
Output:	300-400 Kg/h	Dimension:	430019502400 Mm
Wire Diameter:	0.1-20mm	Name:	Copper Wire Granulator Machine
High Light:	Copper Wire Granulator Separator , Copper Cable Granulator

Product Description

Medium Model 600 Copper Wire Granulator Machine Recycle Scrap Copper Cables

Product Description

Copper wire granulator machine is used for recycling scrap copper wires/cables with diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm. Scrap copper wires are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector. The recovery rate can reach 99.9%.

Raw material:

The wire is like auto wires, communication cables and kinds of miscellaneous wires and cables

Technical parameters

Model	Size	Capacity	Wire diameter range	Power	Volage	Wight
Mini-400	150015001900 mm	80-100 kg/h	0.1-20 mm	11.92 kw	380/240V	750kg
TMS-400	270019002300 mm	150-200 kg/h	0.1-20 mm	23.12 kw	380/240V	1200kg
TMS-600	430019502400 mm	300-400 kg/h	0.1-20 mm	52.36 kw	380/240V	3400kg
TMS-800	920041003540 mm	500-600 kg/h	0.1-30 mm	71.86 kw	380/240V	4100kg

Accessories

The spare parts of copper cable recycling machine includes screen mesh and blades in crusher.

Final granules show

99.9% Separating 52.36kw Copper Wire Recycling Machine 2

Our Services

1. The machines except spare parts are guaranteed for 12 months.

2. Engineer will be sent to your place to guide how to operate for the production line.
