• 20mm Wire Diameter 300kg/H Copper Wire Recycling Machine

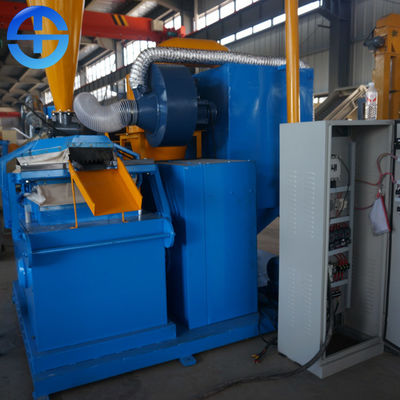

20mm Wire Diameter 300kg/H Copper Wire Recycling Machine

20mm Wire Diameter 300kg/H Copper Wire Recycling Machine

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CE,CO, ISO
Model Number: 600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Packaging Details: Full container for cable granulator machine
Delivery Time: 15 work days after receipt of deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Type: Dry Type Power: 52.36kw
Function: Separate Copper From Plastic Separating Rate: 99.9%
Output: 300-400 Kg/h Color: Blue
Dimension: 4300*1950*2400 Mm Wire Diameter: 0.1-20mm
Name: Copper Wire Recycling Machine
High Light:

52.36kw Scrap Metal Granulators

,

Copper Cable Granulator

Product Description

Dry Type 99.9% Separating Rate Copper Cable Wire Recycling Machine





20mm Wire Diameter 300kg/H Copper Wire Recycling Machine 0



Product Description

Cable granulator machine is used for recycling scrap copper wires/cables with diameter less than 20mm, better for single conductor diameter of 0.2-0.5mm. Scrap copper wires are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector. The recovery rate can reach 99.9%.

The wire is like auto wires, communication cables and kinds of miscellaneous wires and cables.

20mm Wire Diameter 300kg/H Copper Wire Recycling Machine 1

Technical specifications



Model Size Capacity Wire diameter range Power Volage Wight
Mini-400

1500*1500*1900 mm

80-100 kg/h 0.1-20 mm 11.92 kw 380/240V 750kg
TMS-400 2700*1900*2300 mm 150-200 kg/h 0.1-20 mm 23.12 kw 380/240V 1200kg
TMS-600

4300*1950*2400 mm

300-400 kg/h 0.1-20 mm 52.36 kw 380/240V 3400kg
TMS-800

9200*4100*3540 mm

500-600 kg/h 0.1-30 mm 71.86 kw 380/240V 4100kg
Accessories

 The spare parts of cable granulator machine includes screen mesh and blades in crusher.

20mm Wire Diameter 300kg/H Copper Wire Recycling Machine 3

After-sale Services

1. The machines except spare parts are guaranteed for 12 months.

2. Engineer will be sent to your place to guide how to operate for the production line.

3. We will send you extra set of spare parts and two sets small vibrators.

FAQ

1. What is the copper purity?

We can ensure that the copper purity can reach 99.9%. Customer can not worry about the copper waste.

2. What does a good Copper Wire Granulator bring to you?

High purity, better utilization level, PLC control system. More important is Wealth.
