Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CE ISO
Model Number: 1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: US $13,000-14,000 / Sets
Packaging Details: Loaded into full container such as 20'GP, 40'GP, 40'HQ etc.
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets per Month
Get Best Price Contact Now

Detail Information

Type: Hydraulic Cutting Tools Application: Industrial Metal Cutting
Max. Holding Force: 16T Power: 11kw
Max. Shear Force: 100T Max. Open: 300mm
Blade Length: 600mm Frequency Per Minute: 8-10
Dimension(L*W*H): 4200*2250*2100mm Weight: 2500kg
High Light:

alligator metal shear

,

scrap metal cutting shears

Product Description

High efficiency metal cutting machine steel bar cutting machine

Product Description

Steel bar cutting machine applies to scrap metal (iron, steel, steel pipe, etc.) cold shearing of different section forms.  The device body adopts steel casting, overcomes the disadvantage of easy deformation of the welded plate. A new integration design, which avoids the disadvantage of site secondary installation. Shear head adopts sheel casting, more durable. This machine is equipped with fast unit, and the shearing speed is doubled than before, the power is saved by 50%.

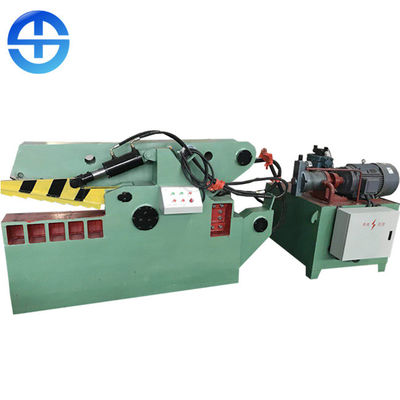

High efficiency metal cutting machine steel bar cutting machine 0



Advantage

1) A longer life: shear head adopts steel casting, overcomes the disadvange of easy deformation of the welded plate.

2) Simple operation: A new integration design, convenient movement. Hydraulic control handle, easy to operate, can realize automatic and semi-automatic operation, convenient and reliable operation.

3) Low failure rate: without the traditional electromagnetic value and the other electrical components, low failure rate,low maintenance cost.

4) Hydraulic driven with hand-value or PLC, use diesel engine when electrical motor is unavailable.

5) Hydraulic acceleration system: the shearing speed is doubled than before, the power is saved by 50%.

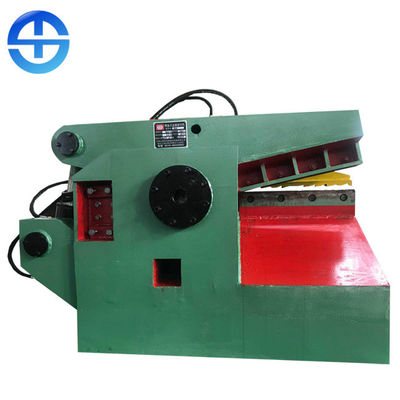

High efficiency metal cutting machine steel bar cutting machine 1



Technical parameters



Item

Max Shear force

Max. Open

Max. Holding force



Blade length

Frequency per minute

Power

Size of shearing material

63T  63T 280mm 10T 600mm 8-10 7.5kw 30*30  Φ40mm
800 80T 300mm 12T 600mm 8-10 7.5kw 30*30  Φ35mm
1000  100T 300mm 16T 600mm 8-10 11kw 40*40  Φ45mm
1200 120T  300mm 20T 600mm 8-10 15kw 45*45  Φ50mm
1600 160T  320mm 25T 700mm 10-12 18.5kw 55*55  Φ63mm
2000 200T  380mm 25T 600mm 12-14 22kw 65*65  Φ75mm
2500 250T  480mm 26T 1000mm 12-14 30kw 70*70  Φ80mm
3150 315T  520mm 42T 1200mm 12-14 37kw 80*80  Φ90mm
4000  400T 540mm 42T 1200mm 12-14 45kw 90*90  Φ100mm
5000 500T 680mm 42T 1400mm 12-14 45kw 100*100  Φ110mm
Our Services

1. We provide good after-sale service. If spare part is broken not for man-made reason, we will send new one to you free.

2. We also can send our engineer to your place to guide you and your worker to operate this machine.

3. The quality warranty time is for 12 months.
