Technical parameter of copper wire granulator
| Model |
Size |
Capacity |
Wire diameter range |
Power |
Volage |
Wight |

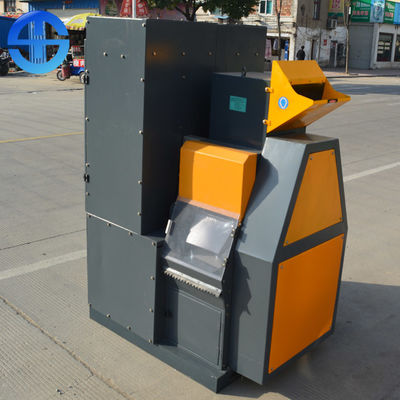

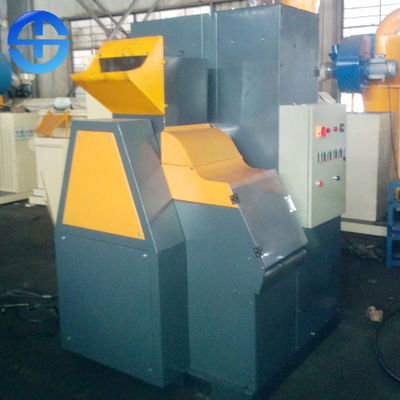

| Mini-400 |
1500*1500*1900 mm |
80-100 kg/h |
0.1-20 mm |
11.92 kw |
380/240V |
750kg |
| TMS-400 |
2700*1900*2300 mm |
150-200 kg/h |
0.1-20 mm |
23.12 kw |
380/240V |
1200kg |
| TMS-600 |
4300*1950*2400 mm |
300-400 kg/h |
0.1-20 mm |
52.36 kw |
380/240V |
3400kg |
| TMS-800 |
9200*4100*3540 mm |
500-600 kg/h |
0.1-30 mm |
71.86 kw |
380/240V |
4100kg |
Features of copper wire granulator
1. Compact structure, beautiful appearance, reasonable layout and convenient installation.
2. Intelligent operation makes the operation more convenient, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.
3. The crusher adopts counter roller type, with low speed, high torque, large output, low noise and simple operation.
4. The pulverizer, separation equipment and dust collection equipment adopt the platform combination type, which makes the equipment easy to move and transport, and increases the flexibility of the equipment.
5. The rotor of the pulverizer adopts the alternate cutter shaft, which makes the production efficiency of the pulverizer higher, the noise lower and the operation more stable.
6. The separation rate of air flow separation equipment is as high as 97 ~ 99%.
7. The return system makes the semi-finished products be crushed twice, which ensures the complete separation of metal and non-metal.
8. Bag dust collection equipment can effectively control dust overflow, and the dust removal efficiency is as high as 99.99%.
Separation effect of copper wire granulator
1. During the first trial production, the feeding amount should be controlled at about 50% - 60% of the machine's output. After continuous production for 3-5 hours, the output should be increased one after another. The output should be increased by 10% every 3-5 hours. It is not allowed to load at the beginning, because each machine needs running in process.
2. The dry-type copper wire granulator is filled with new grease every 40 hours, and the crusher bearing is filled with new grease every 8 hours. The lubricating grease is 3# calcium grease.
3. During production, raw materials should be classified and broken, and copper wire and aluminum wire should not be mixed together. The diameter of each batch of broken raw material line should be the same, and the mixing of thick line and fine line will affect the separation effect.
4. During commissioning, the feeding amount should be controlled at about 30% of the machine output, so as to avoid the accumulation of tail machine materials caused by untimely single machine adjustment.
5. The speed frequency of downdraft fan frequency converter is adjusted to 35-40hz for the first time, and the value is increased or decreased according to the sorting condition. For the first time, the speed and frequency of the vibration sorting motor frequency converter are adjusted to 28-35hz, which is increased or decreased according to the sorting situation.
