Stable Aluminum Recycling Machine Radiator Copper Aluminum Separator Machine Air Condition
Product Details:
| Place of Origin: | Henan, China (Mainland) |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | TMS-017 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | negotiable |
| Packaging Details: | Packed by ply wooden case which meet export standard or Full container for large quantity |
| Delivery Time: | 7 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Radiator Copper Recycling Machine | Material Processed: | Scrap Radiators |
|---|---|---|---|
| Power: | 3 Kw+4 Kw | Capacity: | 2000-3000 Kg/day |
| Dimension: | 1800*800*1200 Mm | Weight: | 680 Kg |
| Function: | Separate Copper And Aluminum | Voltage: | 380v/50HZ(as Customers' Request ) |
| High Light: | copper separator machine,aluminum recycling machine |
||
Product Description
Stable Aluminum Recycling Machine Radiator Copper Aluminum Separator Machine Air Condition

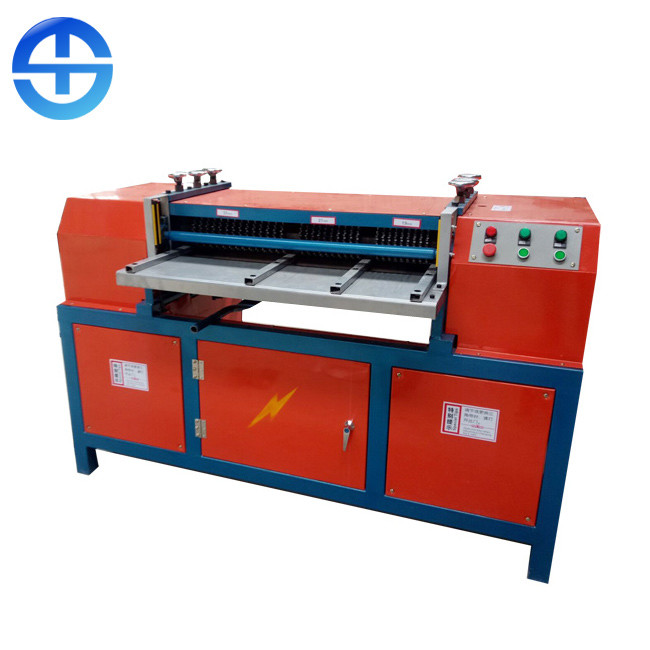

Description of radiator copper recycling machine
Radiator copper recycling machine is designed to strip and separate the scrap radiator for recycling copper and aluminum with high efficiency and stable performance. There are three kinds of blade center distance: 19mm, 21mm and 25mm; that is to say it can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm
Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.
| Model | Dimension | Capacity | Power | Weight | Motor |
| TMS-017 | 1800*800*1200 mm | 2000-3000 kg/day | 3+4 kw | 650kg | customised |

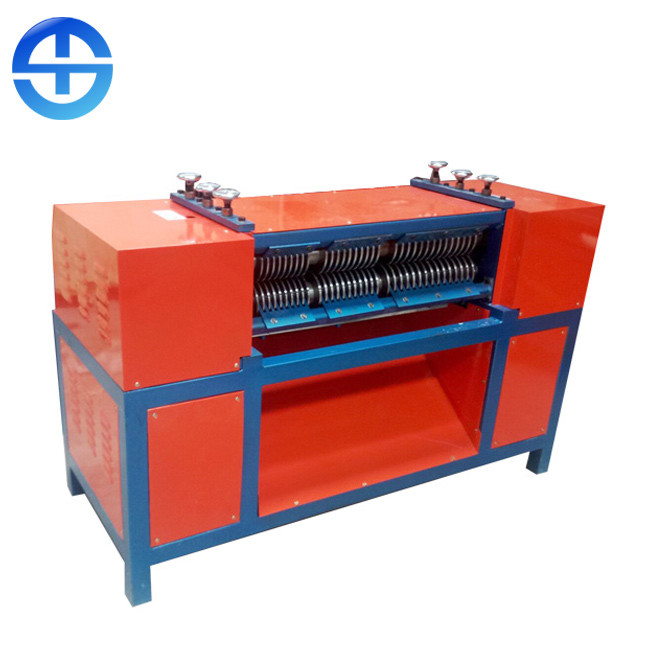

This machine is consisted of a frame, two motors, two speed reducers, material feeding part, material cutting part, material separation part, transmission part and material feeding panel.
Material Preparation of radiator copper recycling machine
(1). Iron heads of radiators must be cut off the two sides of radiators;
(2). Radiators must be cut with a band saw according to the width of each Material Inlet;
(3). Radiators that are more than 2 layers must be cut into one layer and two layers with the band saw;
(4). Do not feed radiators into wrong Material Inlets (three inlets each are for 19mm, 21mm, 25mm radiators respective);
(5). This machine is suitable for processing one layer radiators when it is shipped to customers. When you need to process two-layer radiators, just remove the iron covers from the Lower Blade Roller to expose the blades.
(6). When two-layer radiators are processed, the left side of the radiators shall touch the left side of each Material Inlet, and the first copper pipe in the Upper Layer to the left side of each Material Inlet must be nearer than the first copper pipe in the Lower Layer to the Left Side of each Material Inlet.
(7). For both one-layer and two-layer radiators, the left side of radiators must touch the Guiding Rulers and are radiators must be fed into Material Inlets along the guiding rulers.
(8). When radiators are fed into Material Inlets correct, each Feeding Gear at the Material Inlet must be at the middle of each two copper pipes; or copper pipes and aluminum will not be separated.
(9). Twisted radiators can not be processed.
Packaging & Shipping
Radiator copper recycling machine is packed by standard exported ply wooden case to protect this machine not broken during transportation.
1. Our quality guarantee time is one year. During this period, if the spare parts is broken not for man-made, we will send the spare parts to you free.
2. Extra blades will be sent to you free when deliver this machine.
