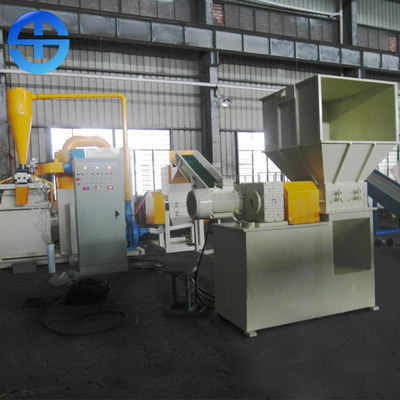

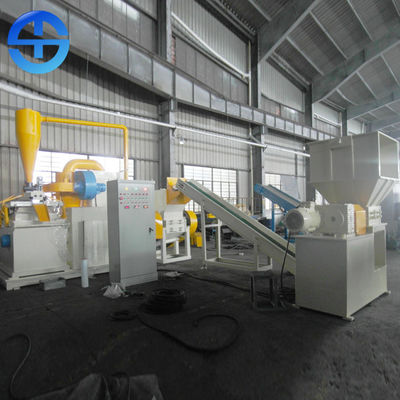

Electrical Copper Wire Granulator Copper Cable Recycling Machine Easy Operation

Electrical Copper Wire Granulator Copper Cable Recycling Machine Easy Operation

Product Details:

Place of Origin: CHINA
Brand Name: TMS
Certification: CO, ISO
Model Number: TMS-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: One 40 feet container
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Wire Recycling Machine Function: Crush And Separate Copper From Plastic
Material Processed: Scrap Copper Wire /cable Type: Dry
Capacity: 500-600 Kg/h Wire Diameter: 0.1-30 Mm
Voltage: 380 V Or Customized Weight: 8 Ton
High Light:

scrap metal granulators


copper cable granulator machine

Product Description

Electrical Copper Wire Granulator Copper Cable Recycling Machine Easy Operation


Summary of copper wire recycling machine


copper wire recycling machine is a complete production line which is used for handling auto wires, communication cables and kinds of miscellaneous wires and cables. It has a compact structure, stable and reliable performance. Scrap copper cables are shredded by the two crushers, then plastic pieces and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector(can recycle the copper cables with diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm).


Power list


Item Voltage Power(kw)
Air Separator Bottom Blower 380V/50HZ 4
Vibrator 380V/50HZ 1.5
Suction Blower 380V/50HZ 4
High pressure fan 380V/50HZ 5.5
Airlock 380V/50HZ 0.25
Conveyor A 380V/50HZ 2.2
First crusher 380V/50HZ 22
Conveyor B 380V/50HZ 2.2
Second Shredder 380V/50HZ 37
Small vibrating table 380V/50HZ 0.18


Advantage of copper wire recycling machine


After the waste wires and cables are broken and processed, the copper and plastic can be separated by automatic mechanical separation, and the purpose of comprehensive utilization can be achieved, which has high economic benefits. In addition, the equipment is an integral combined structure, which is convenient for installation, debugging and transportation (customers can produce by connecting the power supply after purchasing), and has stable performance.


1. Compact structure, beautiful appearance, reasonable layout and convenient installation.

2. Full automatic intelligent control makes the equipment feed evenly and operate intelligently, which makes the operation more convenient, time-saving and labor-saving, and ensures the stable operation of the equipment.

3. The crusher adopts counter roller type, with low speed, high torque, large output, low noise and simple operation.

4. The pulverizer, separation equipment and dust collection equipment adopt the platform combination type, which makes the equipment easy to move and transport, and increases the flexibility of the equipment.

5. The rotor of the pulverizer adopts the alternate cutter shaft, which makes the production efficiency of the pulverizer higher, the noise lower and the operation more stable.

6. The separation rate of air flow separation equipment is more than 99%.

7. The return system makes the semi-finished products be crushed twice, which ensures the separation of metal and non-metal.

8. The bag dust collection equipment can effectively control the dust overflow, and the dust removal efficiency can reach more than 99%.


Working principle of copper wire recycling machine


Under the action of wind force, two kinds of materials with different densities move on the screen surface with a certain angle to produce deflection, which makes the copper wire with high density move towards the copper outlet, while the plastic sheet with low density floats on the copper wire and flows to the copper outlet. So as to achieve the purpose of copper plastic separation.
