4.5 Kw Electric Motor Dismantling Scrap Motor Recycling Machine 1470×740×2040 Mm

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Standard exported ply wooden case or Full container for large quantity Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: TMS-003

Detail Information

Name: Waste Motor Stator Recycling Machine Function: Cutting And Pulling Copper From Stator
Stator Diameter: 100-250 Mm Power: 4.5 Kw
Capacity: 30-50 Pieces/h Size: 1470*740*2040 Mm
Weight: 1050 Kg Voltage: 380V Or Customized
High Light:

electric motor wrecker


electric motor recycling machine

Product Description

4.5 Kw Electric Motor Dismantling Scrap Motor Recycling Machine 1470×740×2040 Mm


Summary of scrap stator recycling machine


Motor stator consists of three parts,the stand and installed within the frame of the cylindrical core and the copper wire winding.The scrap stator recycling machine is used for cutting and pulling copper out from stator. It can be process all kinds of motor stator with external diameter 100-250mm. Firstly the cutting parts cut the motor shell by flat blade then the sharp blade cutting the motor stator into 2pcs. Secondly taking out all the copper winding in twice by putting area.


Specification of scrap stator recycling machine


Model Power Capacity External diameter Size  Weight
TMS-003 4.5kw 30-50 pcs/h 100-250mm 1470*740*2040mm 1050kg


Features of scrap stator recycling machine


1. Adopted hydraulic system, the disassembly function is stable, the disassembly efficiency is greatly improved, and the labor intensity is reduced.

2. The cutting blade is made of high wear-resistant carbide, which is easy to operate, reliable, fast to cut, and does not produce adhesion and burr.

3. Equipped with automatic line grabbing device, the worker can greatly reduce the labor intensity in the process of operation.

4. Cutting blade, gripping claw can adjust the reciprocating distance, more conducive to the placement of stator coil.

5. Without metal loss, increase recycling value, environmental protection.

6. Uses heavy cylinder, large torque, can withstand high loads. We use international famous brand for hydraulic solenoid valve with durable long life. The material of fixture is alloy steel and the blade is made of manganese steel with durable long life.


Structure of scrap stator recycling machine

The motor stator recycling machine is composed of a machine frame, a cylindrical iron core arranged in the machine frame and a copper wire winding in the three parts of the iron core. The motor stator is a special equipment for dismantling broken disassemble the motor stator, the hydraulic system equipment, equipment can be the stator (limited to cast-iron), cylindrical core broken into two, copper wire winding from the cylindrical iron core is pulled out, complete the dismantling process of motor stator. The utility model has the advantages of stable and reliable device operation, high work efficiency, convenient operation, flexibility, and zero pollution to the environment, and is an ideal device for breaking and disassembling the motor stator.


Motor stator broken by hydraulic system disassemble, moving with a master cylinder, through the replacement of different tooling, respectively (limited to the motor stator frame and stator iron frame) cylindrical iron core is broken into two halves, in another position can be a cylindrical stator winding copper iron core in the iron pulled out. The motor stator, silicon steel sheet, copper wire from the three part to complete the dismantling process of motor stator.

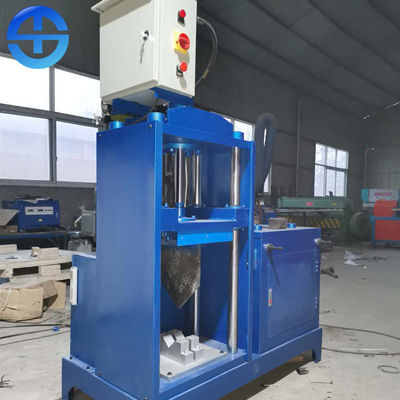

4.5 Kw Electric Motor Dismantling Scrap Motor Recycling Machine 1470×740×2040 Mm 0

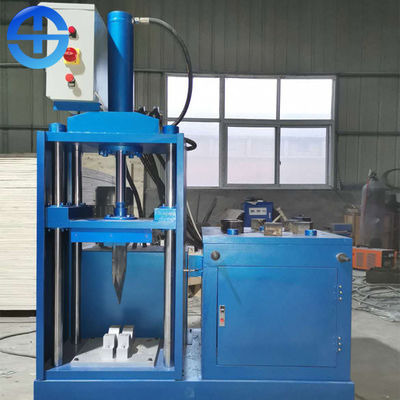

4.5 Kw Electric Motor Dismantling Scrap Motor Recycling Machine 1470×740×2040 Mm 1
