Scrap Motor Stator Recycling Machine Copper Wire Separator 10000×8000×2500 Mm

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : One feet container Delivery Time : 20 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 20 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: TMS-1000

Detail Information

Name: Motor Stator Recycling Machine Function: Crush And Separate Copper
Application: Scrap Motor Stators Power: 60 Kw
Diameter Of Motor: 30-50 Mm Capacity: 800-1000 Kg/h
Size: 10000*8000*2500 Mm Weight: 5000 Kg
High Light:

electric motor wrecker


electric motor recycling machine

Product Description

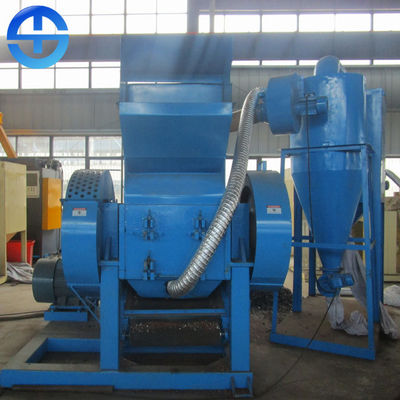

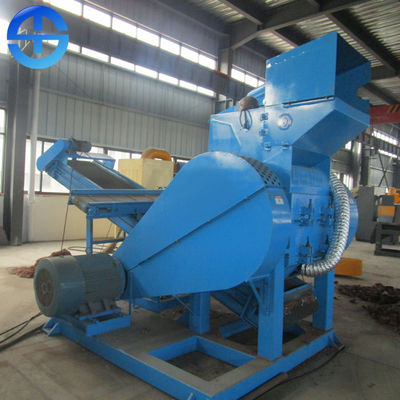

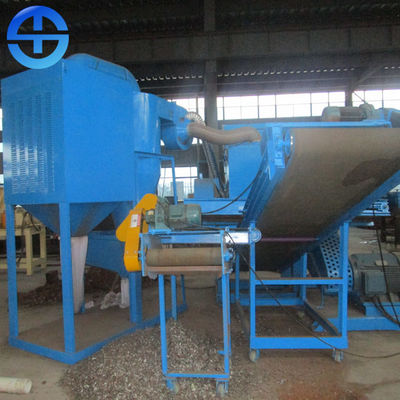

Large production line TMS-1000 scrap motor stator recycling machine

Product Description

The motor stator recycling machine is mainly used for the recovery of waste metal mixed with copper and iron. The material is crushed by crusher, then copper and iron are separated by magnetic separation and specific gravity.The waste electronic rotors are crushed and sorted by dry crusher, high magnetic roller separator and air separator. The waste motor rotors which are difficult to be disassembled manually are treated by professional equipment to obtain renewable resources. The whole process is carried out under negative pressure.

The motor stator recycling machine convey the material manually separated through the conveyor to the crusher for crushing. Pls note: Rigorously mix large axles, bearings, gears, large hard iron blocks into the material. The crushed mixture material is conveyed to the high magnetic roller separator by conveyor to separate non-ferrous metals (mixture material) and iron. Then it enters the separation shaker, using the different specific gravity of each metal unit, separates through wind and vibration, finally obtains copper, aluminum and iron which can be reused, realizes the recycling of metal, and brings good economic benefits.

Scope of application

Copper-iron mixture of motor stator, motor rotor, coil, small transformer, valve, tap, copper joint, deflection coil, etc.

Product features

1. The complete set of equipment has reasonable layout, can handle many kinds of materials, high economic benefit and large capacity.

2. Crusher has the advantages of large crushing ratio, high production efficiency and small discharging granularity.

3. Strong processing capacity and stable operation.

4. High degree of automation, uniform feeding of equipment, coordinated work.

5. Tools are made of special tool steel, which is more durable and durable.

6. Hydraulic system makes it easy for operators to replace fragile parts, improve work efficiency and reduce labor costs.

7. Each part of the production line is closely connected and equipped with dust removal device to avoid dust spillover affecting air quality.

Technical parameters

Power 60 kw
Range of motor diameter 30-50 mm
Capacity 800-1000 kg/h
Size 10000*8000*2500 mm
Weight 5000 kg
Voltage 380 V
