Eco - Friendly Motor Stator Recycling Machine For Crushing And Separating 800-1000 Kg/H Capacity

Eco - Friendly Motor Stator Recycling Machine For Crushing And Separating 800-1000 Kg/H Capacity

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: TMS-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: One feet container
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Scrap Stator Recycling Machine Function: Crushing And Separating
Application: Scrap Motor Stators Power: 60 Kw
Diameter Of Motor: 30-50 Mm Capacity: 800-1000 Kg/h
Size: 10000*8000*2500 Mm Weight: 5000 Kg
High Light:

electric motor wrecker

,

electric motor recycling machine

Product Description

TMS-1000 scrap motor stator recycling machine with capacity 800-1000 kg/h

Details of scrap stator recycling machine

Scrap stator recycling machine is mainly used for the recovery of waste metal mixed with copper and iron. The material is crushed by crusher, then copper and iron are separated by magnetic separation and specific gravity.

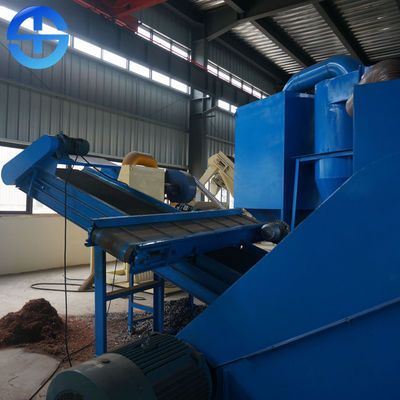

Scrap stator recycling machine convey the material manually separated through the conveyor to the crusher for crushing. Pls note: Rigorously mix large axles, bearings, gears, large hard iron blocks into the material. The crushed mixture material is conveyed to the high magnetic roller separator by conveyor to separate non-ferrous metals (mixture material) and iron. Then it enters the separation shaker, using the different specific gravity of each metal unit, separates through wind and vibration, finally obtains copper, aluminum and iron which can be reused, realizes the recycling of metal, and brings good economic benefits.

Technical parameters of scrap stator recycling machine

Power 60 kw
Range of motor diameter 30-50 mm
Capacity 800-1000 kg/h
Size 10000*8000*2500 mm
Weight 5000 kg
Voltage 380 V

Application of scrap stator recycling machine

Copper-iron mixture of motor stator, motor rotor, coil, small transformer, valve, tap, copper joint, deflection coil, etc.

 Features of scrap stator recycling machine

1. The complete set of equipment has reasonable layout, can handle many kinds of materials, high economic benefit and large capacity.

2. Crusher has the advantages of large crushing ratio, high production efficiency and small discharging granularity.

3. Strong processing capacity and stable operation.

4. High degree of automation, uniform feeding of equipment, coordinated work.

5. Tools are made of special tool steel, which is more durable and durable.

6. Hydraulic system makes it easy for operators to replace fragile parts, improve work efficiency and reduce labor costs.

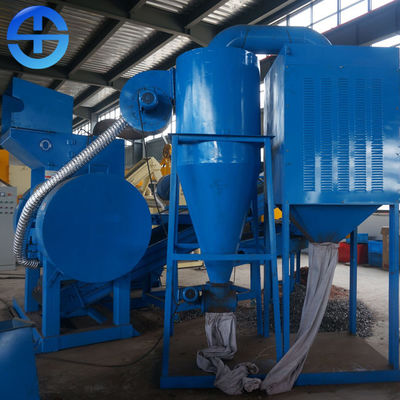

7. Each part of the production line is closely connected and equipped with dust removal device to avoid dust spillover affecting air quality.

Working principle of scrap stator recycling machine

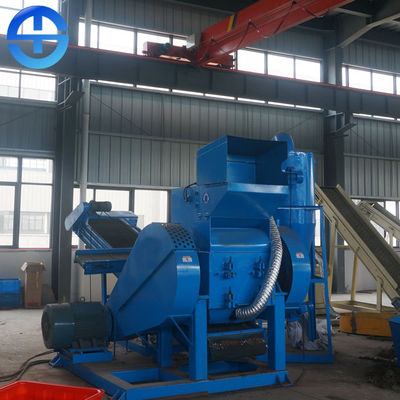

When the crusher works, driven by the motor, the rotor rotates at a high speed. After the crushed materials enter the crushing chamber, they are smashed by the wear-resistant hammers on several layers of rotors in the process of falling. Rust, paint and other debris are gradually stripped off and discharged from the lower outlet. The crushed mixture passes through the conveyor and magnetic separator The silicon steel sheet and copper (aluminum) are stacked separately.

Hammer crusher and high-intensity magnetic drum separator are used to crush and separate the waste motor rotor at one time. The motor rotor which is difficult to be disassembled manually is crushed and separated into copper block and silicon steel sheet. The size of the material crushed by the motor rotor crusher is determined by the screen in the crushing chamber, and the user's discharge demand can be realized through the hole size of the screen. After the motor rotor is crushed in the crushing chamber, the uniform particles flow out from the screen holes of the screen to complete the discharging step.

Eco - Friendly Motor Stator Recycling Machine For Crushing And Separating 800-1000 Kg/H Capacity 0

Eco - Friendly Motor Stator Recycling Machine For Crushing And Separating 800-1000 Kg/H Capacity 1
