11.92 Kw Power Copper Cable Granulator Machine 80 - 100 Kg/H Capacity

Minimum Order Quantity : 1 set Price : USD 10500-12000 per set
Packaging Details : Ply wooden case or Full container Delivery Time : 15 work days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 10 sets per month
Place of Origin: China Brand Name: TMS
Certification: ISO, CE, CO Model Number: Mini-400

Detail Information

Name: Copper Cable Recycling Machine Function: Crush And Separate The Copper From Plastic
Capacity: 80-100 Kg/h Power: 11.92 Kw
Dimension: 1500*1500*1900 Mm Weight: 750 Kg
Voltage: 380 V Or Customised Color: As Customer Demand
High Light:

scrap metal granulators


copper cable granulator machine

Product Description

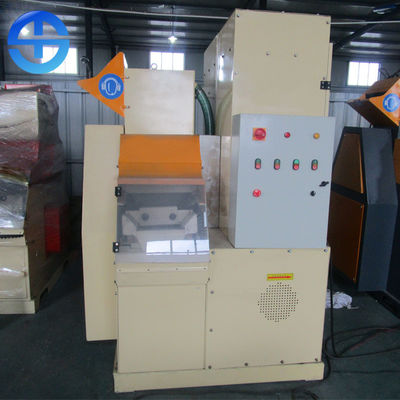

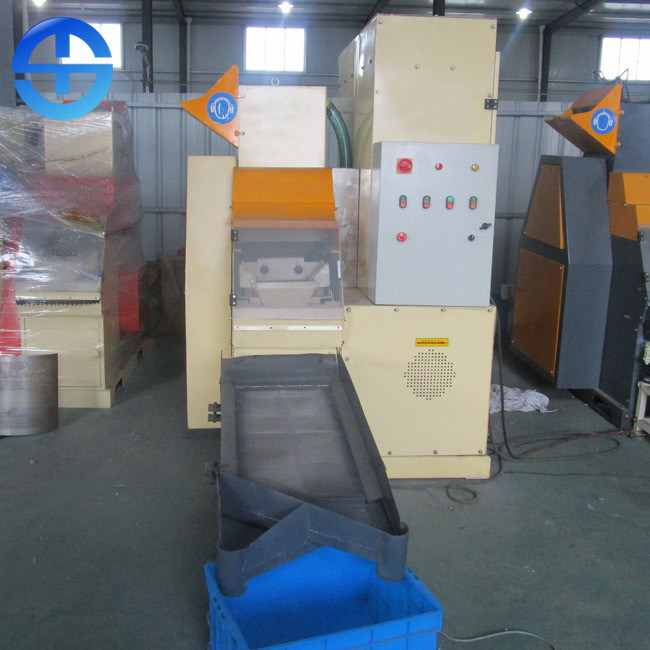

Mini-400 Copper Cable Granulator Copper Cable Recycling Machine For Small Production


11.92 Kw Power Copper Cable Granulator Machine 80 - 100 Kg/H Capacity 0



Copper cable recycling machine is mainly used for recycling waste copper wire, waste wire, waste cable and so on. Simply speaking, it is to crush the waste copper wire, wire and cable first, and then separate the crushed copper and plastic to achieve the distribution and utilization after separation. Because the separated copper looks as big as rice grain, it is called "copper rice machine", which can also be seen that it is an environmentally friendly mechanical product.

Working Principle

1. Crush. First crush the cable into copper and plastic granules. After crushing, the size of granules are generally 2-8 mm.

2. Separation. Using the principle of different specific gravity of metal (copper) and non-metal (plastic), two kinds of media with different specific gravity are separated by air flow and vibration.


After crushing and processing of waste wires and cables, automatic mechanical separation can completely separate copper and plastics, and achieve the purpose of comprehensive utilization, with high economic benefits. In addition, the equipment is an integral combination structure, easy to install and debug, and transport (customers can be purchased after the power supply can be produced), stable performance.

1. Compact structure, beautiful appearance, reasonable layout and convenient installation.

2. Fully automatic intelligent control makes the equipment feed uniformly and operate intelligently, which makes the operation more convenient, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.

3. The crusher is roll-to-roll, with low speed, high torque, large output, low noise and simple operation.

4. Platform combination is adopted for crusher, sorting equipment and dust collecting equipment, which makes the equipment easy to move and transport, and increases the flexibility of equipment.

5. The alternating cutter shaft is used in the rotor of the crusher, which makes the crusher more efficient, less noisy and more stable in operation.

6. The sorting rate of air separation equipment is over 99%.

7. The recycling system makes the semi-finished products comminuted twice, which ensures the complete separation of metal and non-metal.

8. Bag dust collecting equipment can effectively control dust spillover, and the dust removal efficiency is over 99%.

Technical Parameters

serial number Description Quantity Power (kw)
1 crusher 1 set 7.5
2 Blower fan 1 set 2.2
3 dust collector blower 1 set 1.5
4 Vibrator motor 1 sets 0.36
5 Small vibrator 2 set 0.18

11.92 Kw Power Copper Cable Granulator Machine 80 - 100 Kg/H Capacity 1
