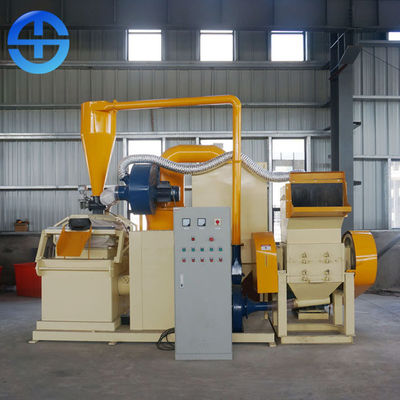

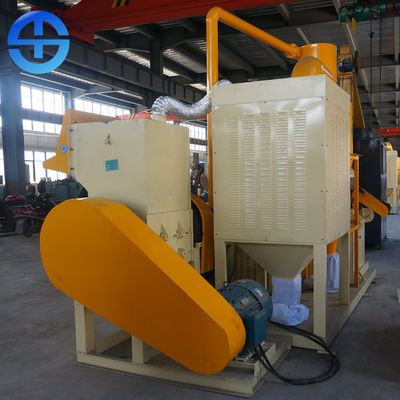

200 - 300 Kg/H Scrap Copper Wire Granulator / Copper Wire Recycling Machine

Minimum Order Quantity : 1 set Price : USD 16000-17000 per set
Packaging Details : 1*20'GP Delivery Time : 20 work days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 5 sets per month
Place of Origin: China Brand Name: TMS
Certification: ISO, CE, CO Model Number: TMS-600

Detail Information

Name: Copper Wire Recycling Machine Function: Crush And Separate The Copper From Plastic
Capacity: 200-300 Kg/h Power: 52.36 Kw
Dimension: 4300*1950*2400 Mm Weight: 3400 Kg
Voltage: 380 V Or Customised Color: As Customer Demand
High Light:

scrap metal granulators


copper cable granulator machine

Product Description

200 - 300 Kg/H Scrap Copper Wire Granulator / Copper Wire Recycling Machine


Description of copper wire recycling machine


Copper wire recycling machine is mainly used for recycling waste copper wire, waste wire, waste cable and so on. Simply speaking, it is to crush the waste copper wire, wire and cable first, and then separate the crushed copper and plastic to achieve the distribution and utilization after separation. It is an environmentally friendly mechanical product.


Technical Parameters of copper wire recycling machine


serial number Description Quantity Power (kw)
1 crusher 1 set 37
2 High pressure fan 1 set 5.5
2 Blower fan 1 set 4
3 Suction fan 1 set 4
4 Vibrator motor 1 sets 1.5
5 Small vibrator 2 set 0.18*2


Working Principle of copper wire recycling machine


1. Crush. First crush the cable into copper and plastic granules. After crushing, the size of granules are generally 2-8 mm.

2. Separation. Using the principle of different specific gravity of metal (copper) and non-metal (plastic), two kinds of media with different specific gravity are separated by air flow and vibration.


Features of copper wire recycling machine


1. Compact structure, beautiful appearance, reasonable layout and convenient installation.

2. Fully automatic intelligent control makes the equipment feed uniformly and operate intelligently, which makes the operation more convenient, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.

3. The crusher is roll-to-roll, with low speed, high torque, large output, low noise and simple operation.

4. The sorting rate of air separation equipment is over 99%.

5. The recycling system makes the semi-finished products comminuted twice, which ensures the complete separation of metal and non-metal.

6. Bag dust collecting equipment can effectively control dust spillover, and the dust removal efficiency is over 99%.


Effect of copper wire recycling machine


The 600 type dry copper wire recycling machine is a production line for dry separation of waste wires and cables. For example: old car circuit wires, communication cables, and stripping machine is not suitable for processing (all kinds of civil wires) waste miscellaneous materials wires, filament wires, etc. High separation rate, one feeding, multi machine cooperation. Automatic intelligent control. The successful development of the machine not only solves the problems in the method of copper recovery by incineration, but also improves the quality of copper recovery, recycles plastics and solves environmental pollution.

1. Economic effect: regenerate the same wire, this machine has more than 99% recovery rate, can make us use more wires effectively in the limited resources, and the price is low, so that users greatly reduce the economic burden.

2. Environmental protection effect: the whole process of crushing, sorting and dust collection is rigorous and harmonious, which is more effective than burning or other methods.

200 - 300 Kg/H Scrap Copper Wire Granulator / Copper Wire Recycling Machine 0



200 - 300 Kg/H Scrap Copper Wire Granulator / Copper Wire Recycling Machine 1
