Heavy Duty 2 Shaft Shredder Machine Metal Crushing Machine 45 Kw * 2 Power

Heavy Duty 2 Shaft Shredder Machine Metal Crushing Machine 45 Kw * 2 Power

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CO, CE
Model Number: TMS-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 31000-36000 per set
Packaging Details: Ply wooden case with 4200*2300*2700 mm or Full container
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month
Get Best Price Contact Now

Detail Information

Name: Metal Crushing Machine Function: Shredding
Size: 4100*2230*2670 Mm Power: 45 Kw*2
Capacity: 4-5 Ton/h Speed: 50 R/min
Weight: 9500 Kg Voltage: 380 V Or Customized
High Light:

scrap metal shredder machine


double shaft shredder machine

Product Description

Heavy Duty 2 Shaft Shredder Machine Metal Crushing Machine 45 Kw * 2 Power


Introduction of dual shaft shredder


The dual shaft shredder can meet the requirements of waste recycling in various industries, and is suitable for tearing thick and hard to break materials, such as electronic waste, plastic, metal, wood, waste rubber, packaging bucket, supporting plate, etc. There are many kinds of recyclable materials, which can be directly recycled or further refined according to the demand. It is suitable for industrial waste recycling, medical recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, papermaking and other industries. This series of dual shaft shredder has the characteristics of low speed, high torque and low noise. It adopts PLC control system and can be controlled automatically. It has the functions of start, stop, reverse and overload automatic reverse control.


Specifications of dual shaft shredder


Model TMS-1200
Power 45kw*2
Voltage 380v/50hz
Capacity 4-5 ton/h
Speed 50 r/min
Size 4100*2230*2670 mm
Weight 9500 kg


Application of dual shaft shredder


The items that can be torn up by metal crushing machine are

(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.

(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.

(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.

(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.

(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television.



Working principle of dual shaft shredder

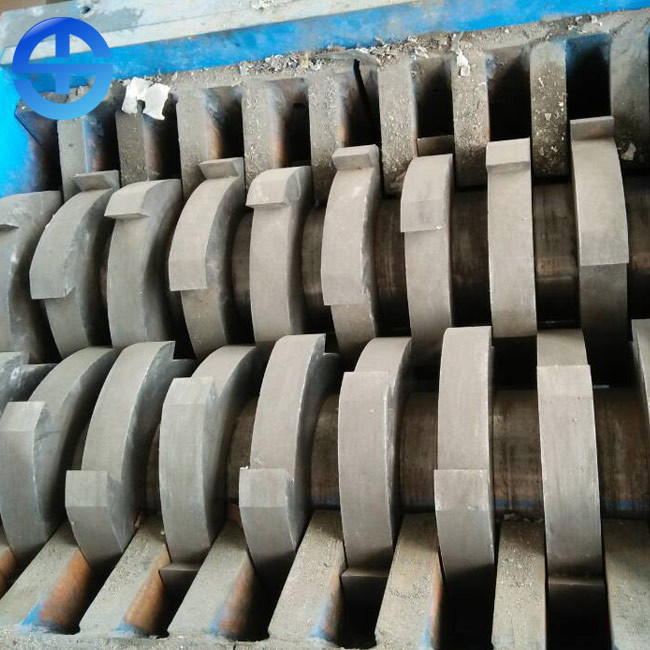

The main working parts of this machine are a pair of relatively rotating rollers, which are equipped with spirally arranged gear teeth. When the material enters the machine, it is torn and sheared by the teeth of the high hardness wear-resistant material which rotates staggeredly and is splitted, broken and crushed into smaller than the set size, and then forcibly excluded from the machine. Roller driven by motor through reducer has super-large torque, encounter difficult debris, will automatically reverse under the action of PLC automatic control system, and many times positive and negative, until the material is broken and discharged.


Features of dual shaft shredder


(1). The machine is reasonably designed and welded with high-quality steel.

(2). Fastening with high strength screw, solid structure, durable.

(3). The design of the main engine is exquisite, and the separation design is adopted for the fragments to make the output higher.

(4). The processed fragments are uniform and wear-and-tear is small. Various sieves can be replaced at the same time to meet different needs.

(5). Tools of different materials are equipped at the same time, so that they can be flexibly adjusted for different materials. They can be grinded after bluntness, used many times, and have long service life.

(6). The machine has the advantages of advanced structure, beautiful appearance, simple operation, stable operation, low investment and high efficiency.

(7). Equipped with large belt pulley to increase the inertia of crusher, it can save energy and strong crushing.
